Description

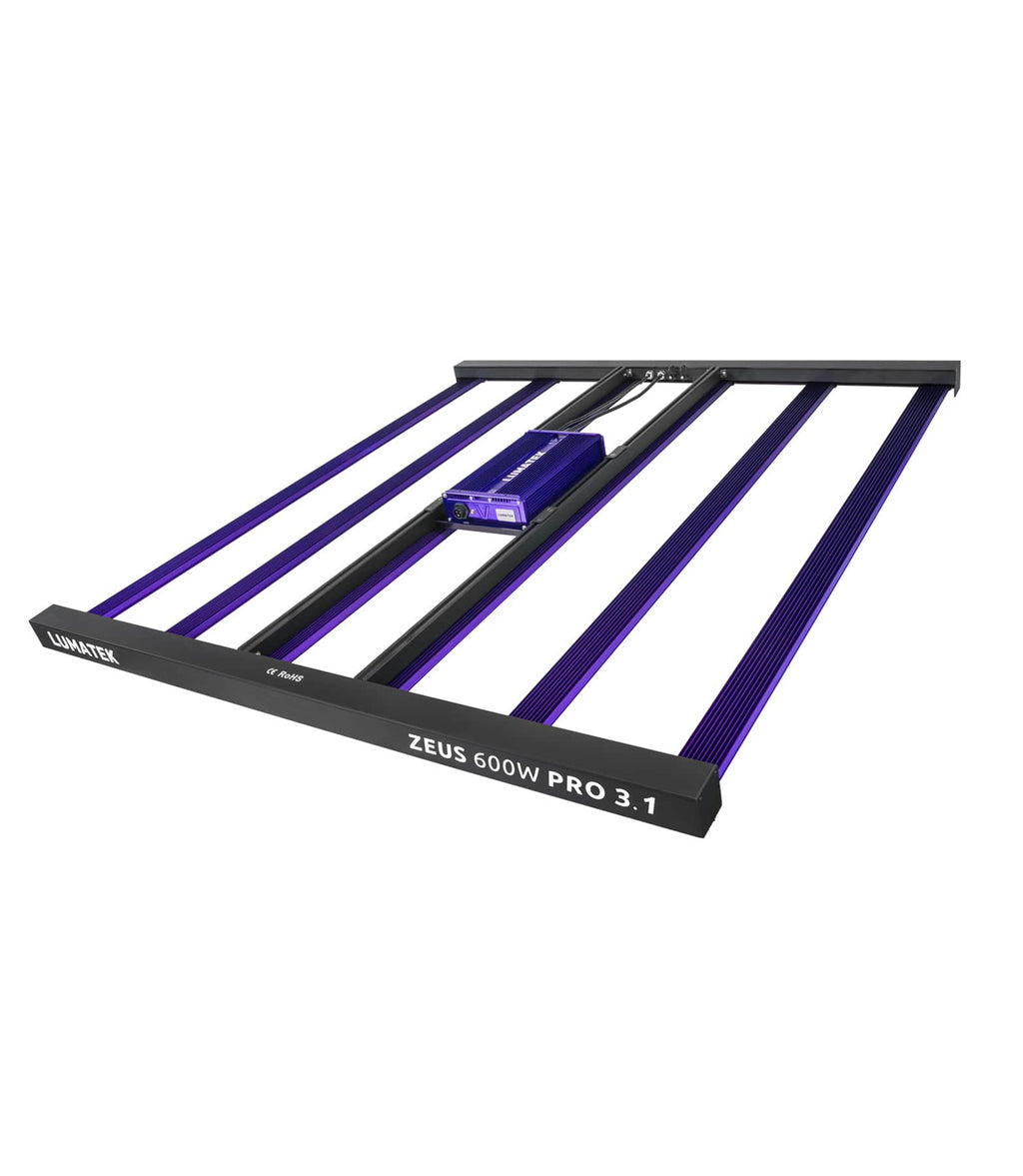

ZEUS 600W Pro 3.1 LED by Lumatek
The new higher specification LUMATEK ZEUS 600W PRO 3.1 LED is a linear multi-light aluminium bar fixture producing high PPF levels of 1990 µmol/s achieving a photon efficacy of 3.1 µmol/J.
As diode technology keeps innovating, LUMATEK has now improved the total Photosynthetic Photon Flux output to higher values thus increasing the total usable photons for the grow area by 10%. Meaning this fixture will now cover 1.5 x 1.5 m for vegetative and flowering stages.
The array of the LUMATEK ZEUS 600W PRO 3.1 creates a uniform spread of full spectrum photons at short distance to the crop enabling a single source grow lighting solution for multi-layer cultivation systems, single benches in low ceiling rooms and grow tents.
The new 3.1 version ZEUS – worthy successor to the Spannabis best cultivation product award winner ZEUS 600W PRO 2.9 – is built using high quality, efficient LUMATEK drivers and the latest generation top bin LEDs from Samsung LM301H EVO and Osram 4.24 generating a full-spectrum light source ideal for full cycle growing. The clear glue protection cover technology on the LED bars results in higher light transmittance of 99% without higher light losses, extended diodes lifetime, extra corrosion resistance and IP65 ingress protection.
For different cultivars, propagation, and vegetative growth periods the LUMATEK ZEUS 600W PRO 3.1 may be dimmed without losing efficiency. The high efficiency and low powered LED configuration with 6 LED bars reduce the temperature of the LEDs increasing the output and improving light maintenance.
As usual, this fixture can also be externally controlled with a LUMATEK Control Panel Plus 2.0 featuring light timing, automated dimming (1% increments), temperature safety control, Sunrise & Sunset Mode for up to 100 units of LUMATEK ZEUS 600W PRO 3.1 fixtures per controller.
The LUMATEK ZEUS 600W PRO 3.1 will continue our legacy to impress the horticulture industry thru its vast impact in the grow community by helping beginners, PROs and large commercial crop production facilities to grow.
FEATURES
-Very high efficacy of 3.1 µmols/J
- High PPF output of 1990 µmol/s
- High quality Lumatek LED driver
- Top bin diodes
- Balanced full spectrum
- High PPF output of 1990 µmol/s
- High quality Lumatek LED driver
- Top bin diodes
- Balanced full spectrum
- Clear glue protection technology
- External control with Lumatek Control Panel 2.0
- Replaceable 100W PRO 3.1 magnet light bars
- Fully Dimmable
- User friendly Plug & Play Assembling
- Detachable driver for remote use
- Replaceable 100W PRO 3.1 magnet light bars
- Fully Dimmable
- User friendly Plug & Play Assembling
- Detachable driver for remote use
- 5 year warranty
SPECIFICATIONS
Efficacy: 3.1 µmol/J
PPF: 1990 µmol/s
Input Voltage: 200-240V
Power Consumption: 640W (2.9 A @230 V AC)
Footprint: 1.5x1.5m
Waterproof: IP65
Lifetime: L90 > 60 000 Hrs
Light Distribution: 120°
Light Source: SAMSUNG LM301H EVO | OSRAM 4.24

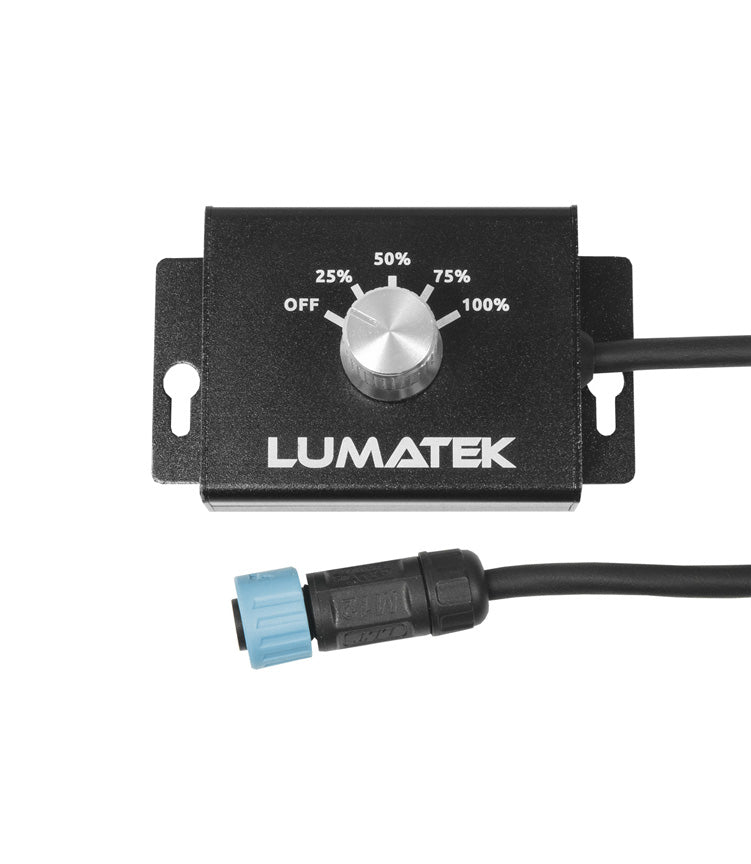

Dimmable: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)
External Control: With Lumatek or any Universal Controllers 0-10 V
Efficacy: 3.1 µmol/J
PPF: 1990 µmol/s
Input Voltage: 200-240V
Power Consumption: 640W (2.9 A @230 V AC)
Footprint: 1.5x1.5m
Waterproof: IP65
Lifetime: L90 > 60 000 Hrs
Light Distribution: 120°
Light Source: SAMSUNG LM301H EVO | OSRAM 4.24
Dimmable: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)
External Control: With Lumatek or any Universal Controllers 0-10 V
Daisy Chain Capability: Yes
Weight: 13.5 Kg
Dimensions: 1182 x 1091 x 52 mm
Spectrum: Full Spectrum F
BTU (With Driver Attached): 2115 BTUs/h
BTU (With Driver Remote): 2047 BTUs/h
Weight: 13.5 Kg
Dimensions: 1182 x 1091 x 52 mm
Spectrum: Full Spectrum F
BTU (With Driver Attached): 2115 BTUs/h
BTU (With Driver Remote): 2047 BTUs/h
Warranty: 5 Years
Certifications: CE, EMC, LVD
Items Included:
- 6 x Lumatek 100W PRO 3.1 Full-Spectrum Magnet Light Bars
- 1 x Lumatek 600W PRO 3.1 Driver with connecting cables
- 1 x LED Structure with Connecting Cables
- 1 x 0-10V Light Dimmer
- 6 x Lumatek 100W PRO 3.1 Full-Spectrum Magnet Light Bars
- 1 x Lumatek 600W PRO 3.1 Driver with connecting cables
- 1 x LED Structure with Connecting Cables
- 1 x 0-10V Light Dimmer
- 2 x Metal Cable Hangers
- 1 x Manual
- 1 x Manual
Universal Control Systems Compatibility
Lumatek Zeus LED Fixtures can be fully controlled with either the Lumatek Digital Panel or with any other Control System that utilises 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.
Lumatek Zeus LED Fixtures can be fully controlled with either the Lumatek Digital Panel or with any other Control System that utilises 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.
Compared to regular open HPS/MH solutions the Zeus can achieve 30-40% less HVAC capacity.
100W Pro LED bar only to be used with compatible Zeus 600W Pro Driver/Fixture
Benefits include energy savings; Lumatek LED solutions demonstrate the potential to save 40% on electricity and studies indicate that LED-lit canopies can generate more yield per kWh.
Plant and crop performance; initial studies indicate growers using LED lighting may experience yield increases and changes in cannabinoid and terpene profiles, leading to more consistent medicinal product profiles from harvest to harvest.
Less maintenance; Lumatek LEDs are rated for 60,000 hours use supported by a market leading 5 Year warranty.
Reduced HVAC; Lumatek LEDs are highly efficient and less wattage equals less heat into the space, allowing for potentially lower HVAC loads and operating expense.
Safety; Lumatek LED drivers are intelligent and feature full circuit protection including over/under voltage, short circuit and over temperature protection. Lumatek Zeus LED drivers also feature auto-power increase/decrease to match the amount of light bars connected to fixture. All Lumatek LED fixtures are CE certified LVD and EMC compliant.
Flexible light intensity; Lumatek LEDs can be dimmed to adjust PPF level to suit crop and growth stage without changing spectral power distribution or losing efficiency.
