Description
Trolmaster's Tent-X (TCS-1) is a state-of-the-art professional-grade and modularly designed environmental and irrigation control system, designed for single-zone grow tents. Thanks to the controller's compact hydroponic capabilities, it allows the user to effectively control their tent's environmental parameters and irrigation schedule with a single control system.

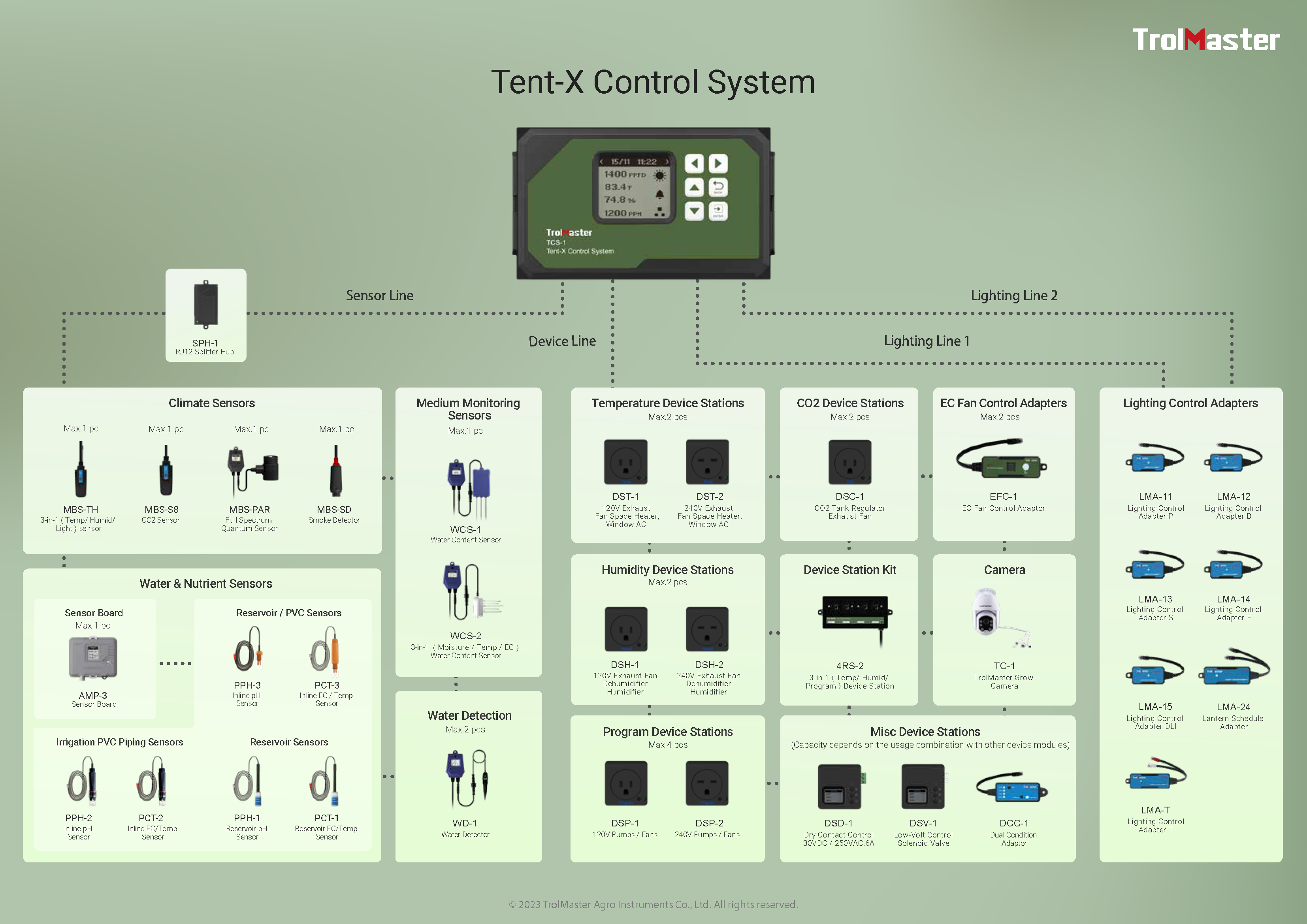

It comes with a 3-in-1 temperature, humidity, and light sensor, the MBS-TH. Users can daisy-chain the MBS-TH sensor with the CO2 sensor (MBS-S8), the full spectrum quantum sensor (MBS-PAR), and the smoke and water detectors into the TCS-1's SENSOR port.
Users can also connect an AMP-3 sensor board to the Tent-X, and connect the Water content sensors (WCS-1/2) or the WD-1 water detector to the sensor board. Additionally, the TCS-1 supports the connection of up to four DS-type plug-in control models, allowing you to connect devices that can control the environment and irrigation.
The TCS-1 is the brain that unites all your climate control and irrigation devices into one being, allowing your devices to work together to create the optimal growth environment for your plants.
Features:
• Grow Tent Grow Lights
• Climate
• Irrigation Compact Hydroponic Control System
• Modular Design & Fully Customizable
• Smartphone Control
• Complete Controlled Device Capacity
• Data Logging
Specifications:
| Input Voltage | 100-240VAC, 50/60Hz |
| Certifications | ETL/FCC |
| Max Number of Lighting Fixtures | 256*2 |
| Max Distance of Device Connected | 1000 meters |
| 3-in-1 (Temp/Humid/Light) Sensor | Max 1pc per set |
| CO2 Sensor | Max 1pc per set |
| Full Spectrum Quantum Sensor | Max 1pc per set |
| Smoke Detector | Max 1pc per set |
| AMP-3 Sensor Board (pH/EC/Temp) | Max 1pc per set |
| Water Content Sensor | Max 1pc per set |
| Water Detector | Max 2pc per set |
| Temp Device Stations | Max 2pc per set |
| Humid Device Stations | Max 2pc per set |
| CO2 Device Stations | Max 2pc per set |
| Program Device Stations | Max 4pcs per set |
| EC Fan Control Adapter | Max 2pc per set |
Included:
• 1 x Tent-X Controller
• 1 x Temp / Humid / Light 3-in-1 Sensor
• 1 x RJ12 Cable Set for Light Connection
• 1 x RJ12 T-splitter
