Description

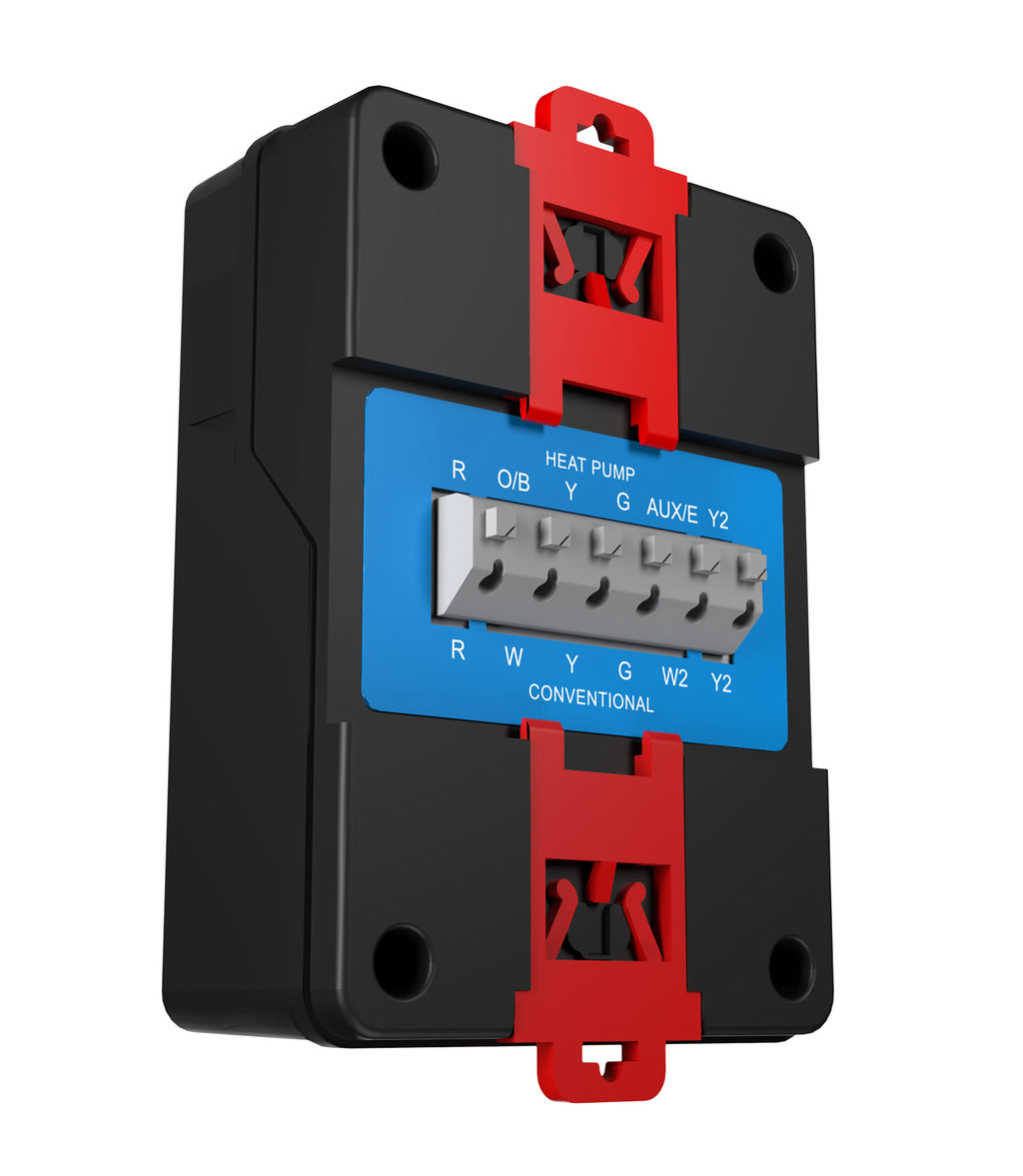

The TS-2 thermostat stations is designed to replace a thermostat connected to a standard HVAC unit. The TS-2 can be used to control most HVAC systems including heat pump and multi-stage HVAC systems. The TS-2 is wired to the HVAC system using the same low-voltage thermostat cable, and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS modules, so multiple HVAC systems can be controlled by a single Hydro-X system. The TS-2 also has an adjustable delay time for each HVAC systems being activated. That minimizes high start-up (inrush current) and allows up to 4 HVAC systems to be safely controlled.
*Firmware Update Note: To update firmware on the TrolMaster's controllers and modules, you must use a Micro SD card that is 32GB or less capacity.
Features:

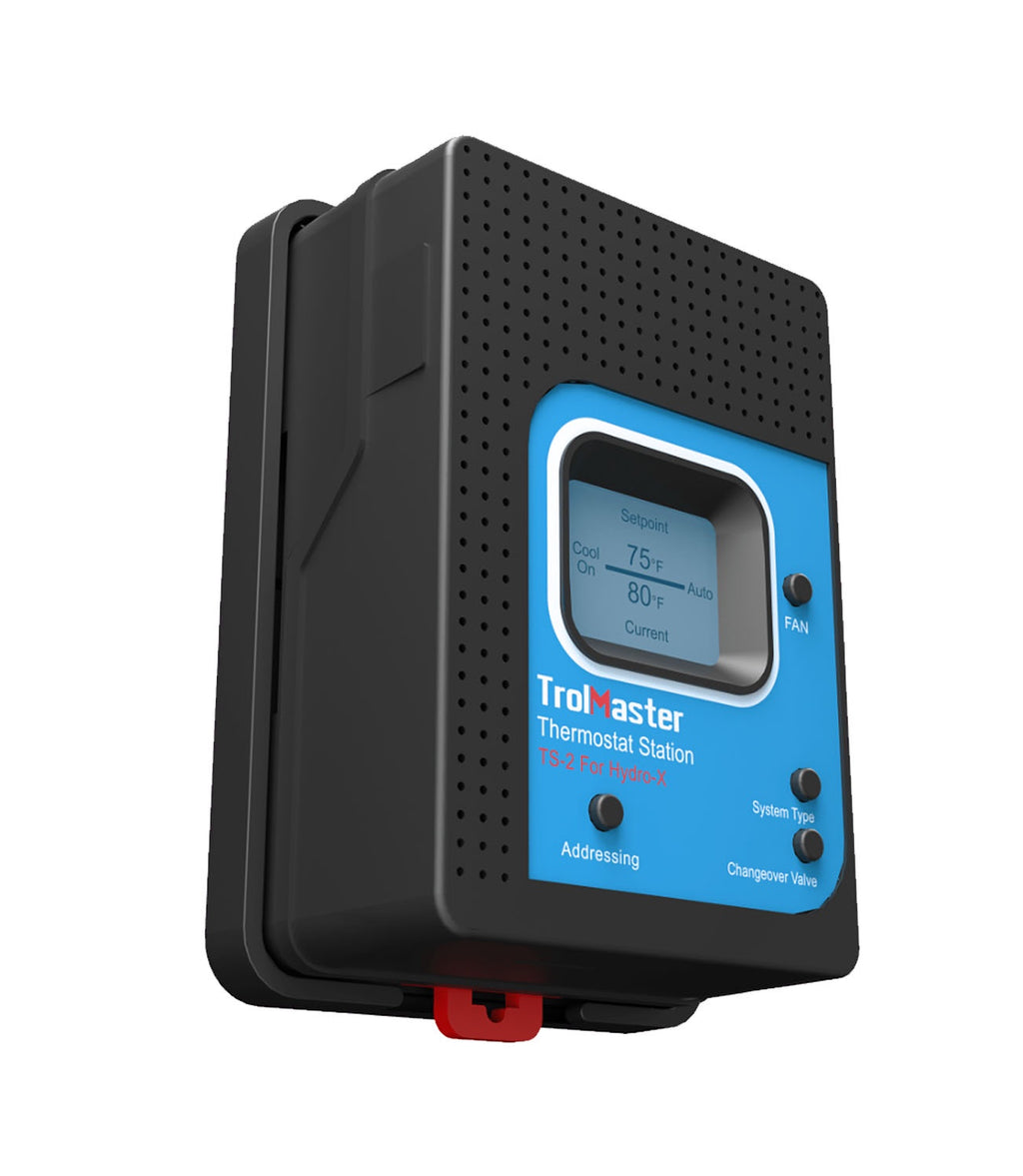

LCD Display, Easy Operation

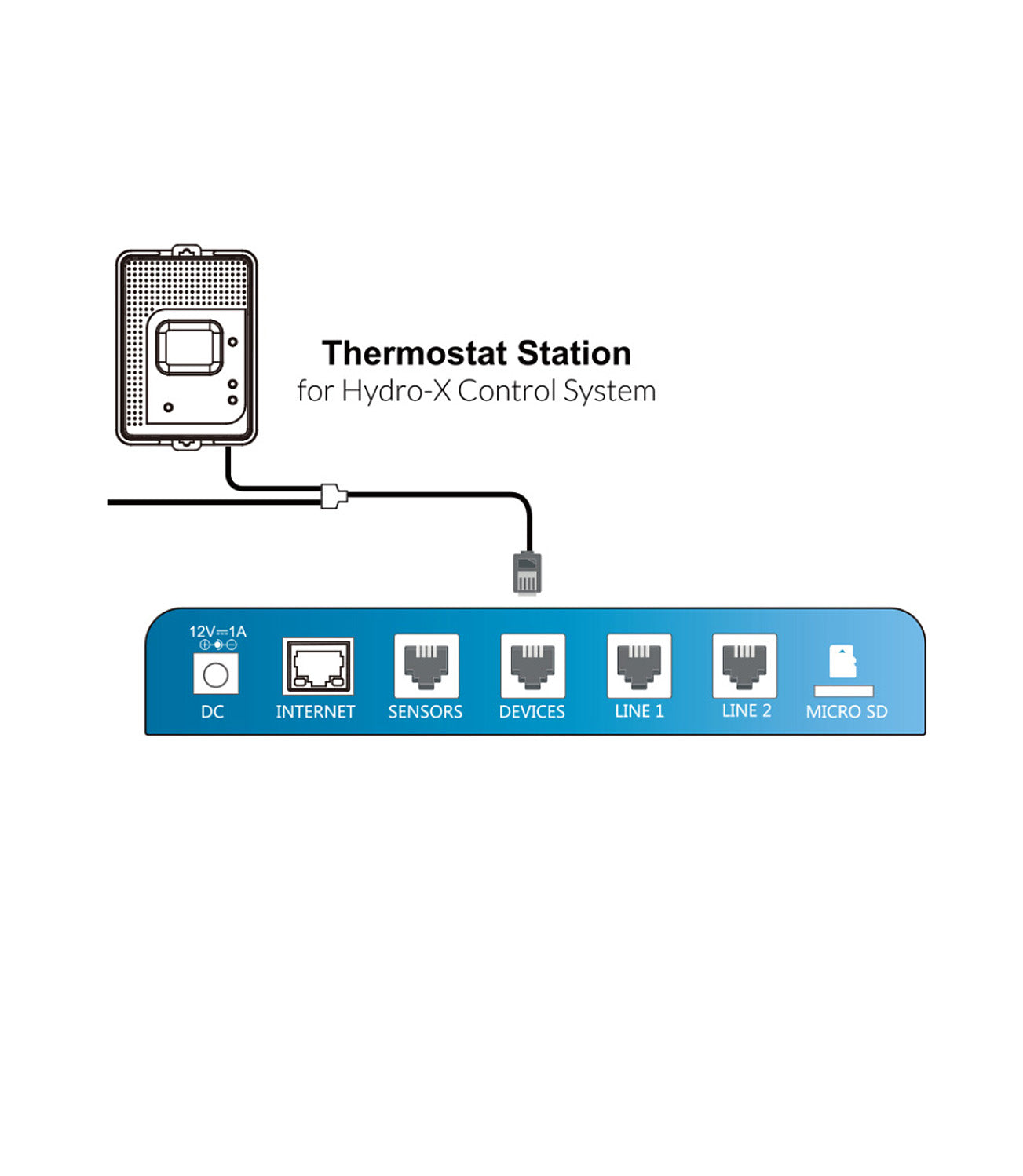

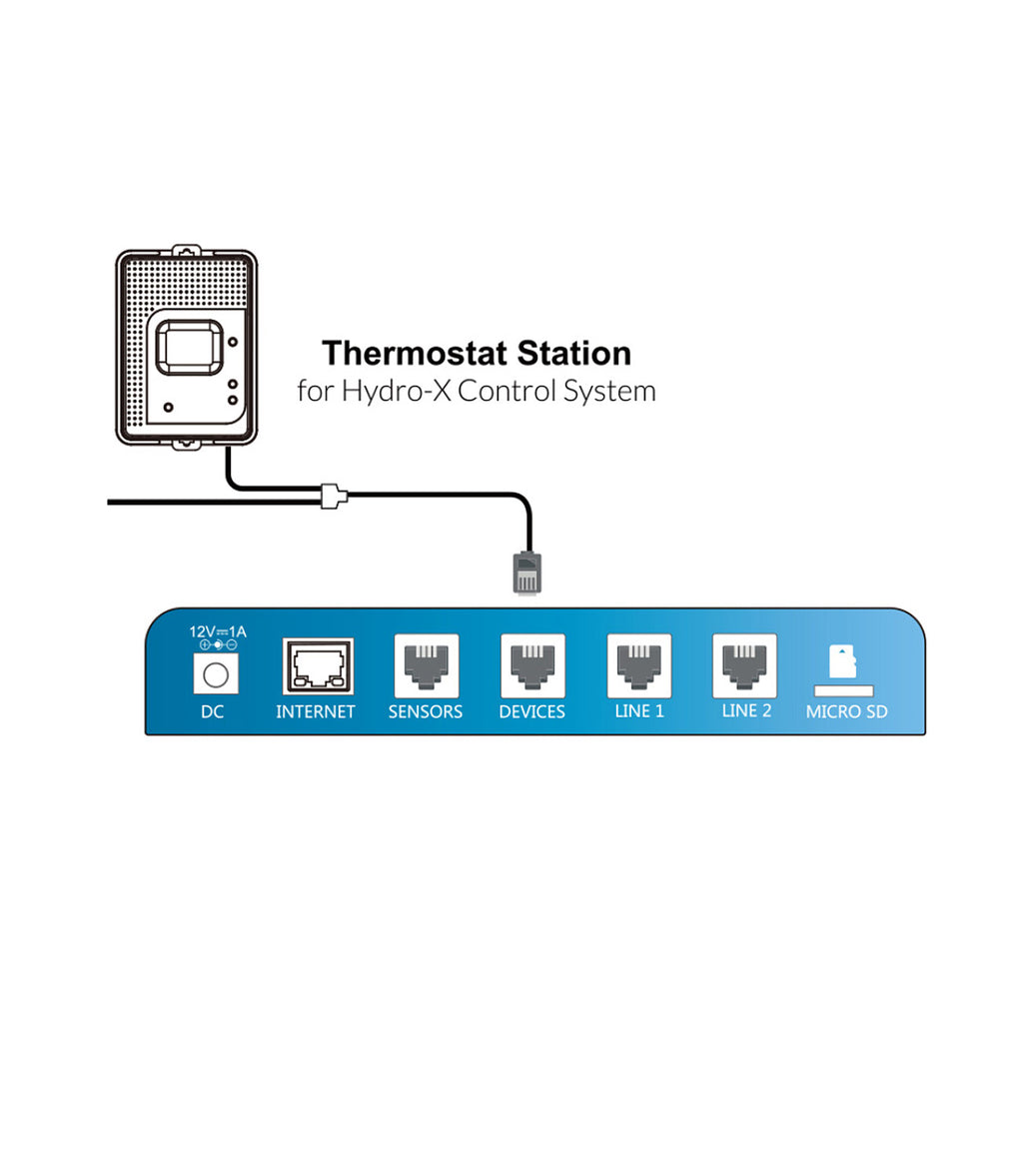

Seamless Connection with Hydro-X
Micro-SD for Firmware Upgrade
Address Assignment
Plug & Play
Specifications:
Output Voltage: 24V
Maximum Current: 1A
Working Environment: Temperature 32-122°F, Humidity=90%
Packaging Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
Package Contents:
1 x Thermostat Station (TS-2)
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
1 x RJ12 T-Splitter
