Description

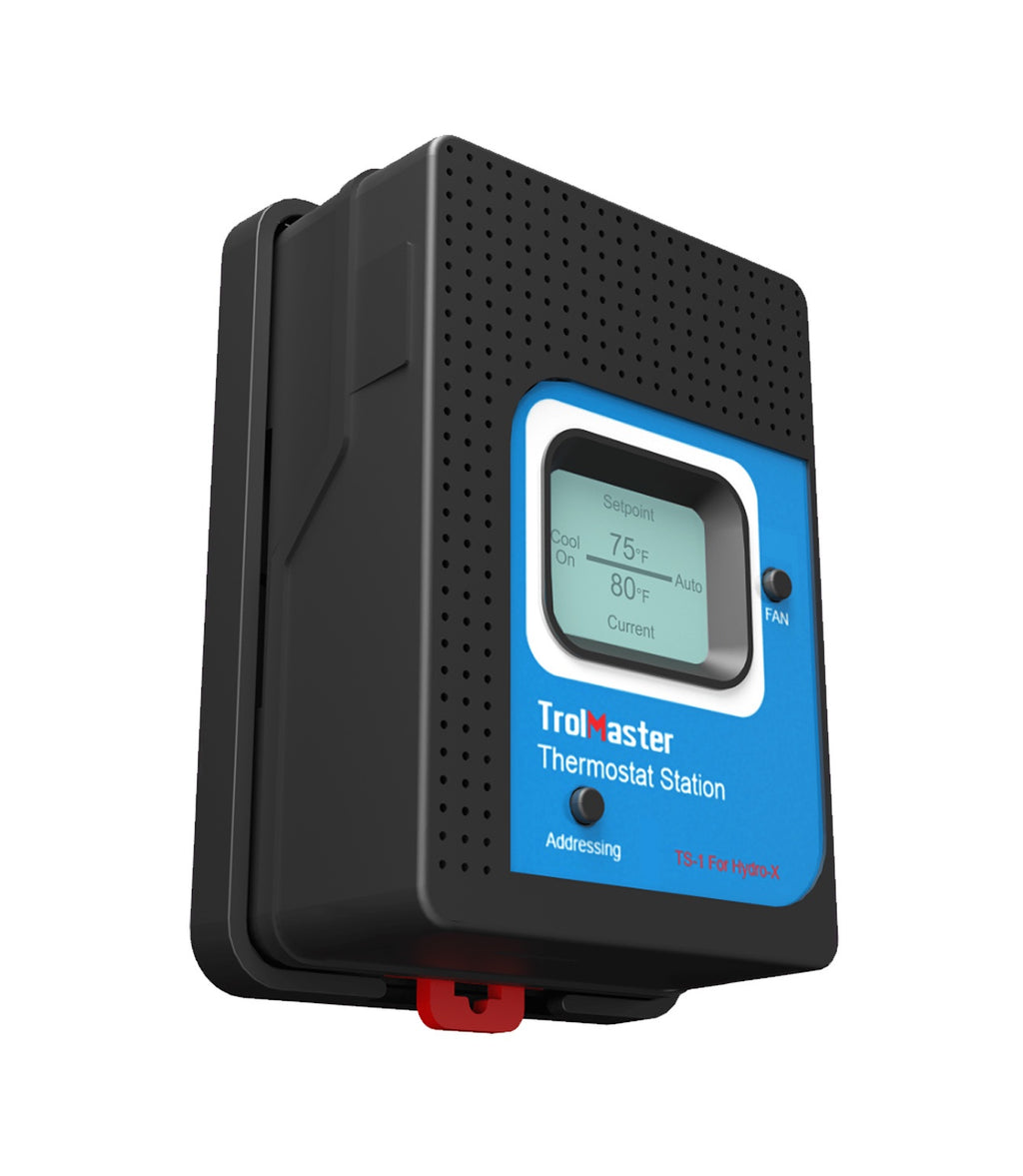

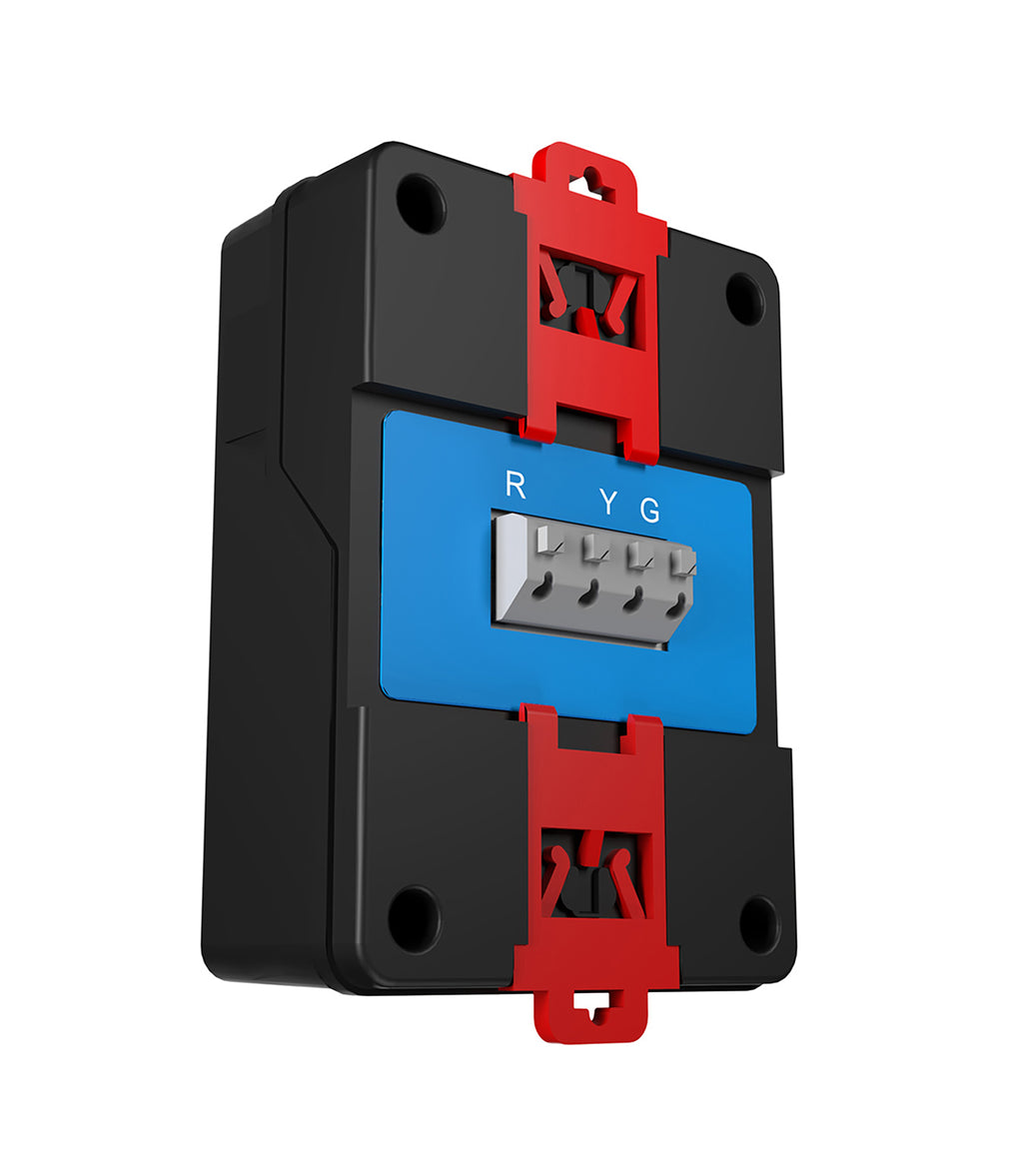

The TS-1 thermostat stations is designed to replace a thermostat connected to a conventional cool only HVAC unit. The TS-1 is wired to the HVAC system using the same low-voltage thermostat cable, and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS modules so multiple HVAC systems can be controlled by a single Hydro-X system.
*Note: TS-1 is specifically designed to replace the traditional thermostat to control Cool Only Commercial AC units.
*Firmware Update Note: To update firmware on the TrolMaster's controllers and modules, you must use a Micro SD card that is 32GB or less capacity.
Features:
LCD Display, Easy Operation

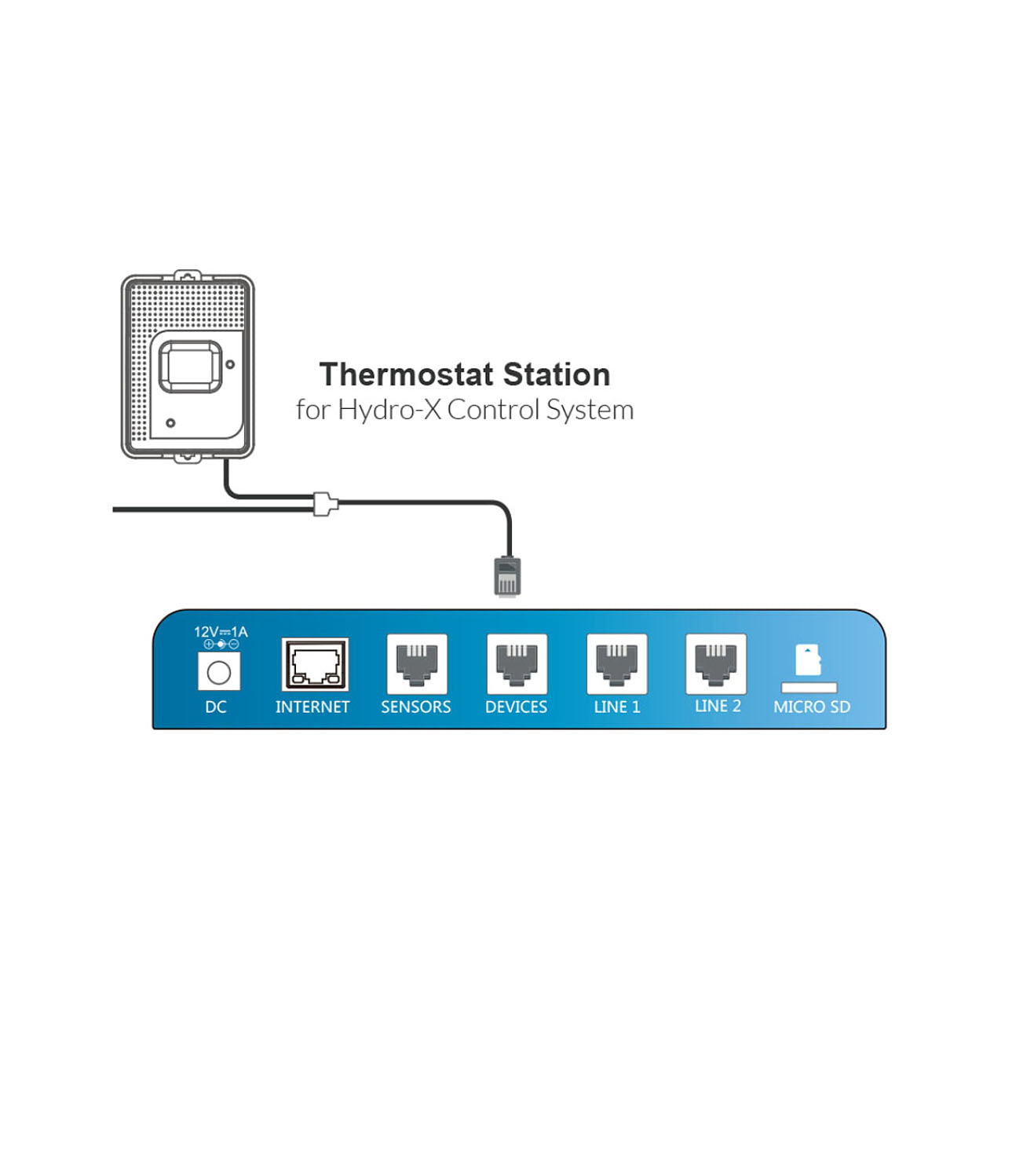

Seamless Connection with Hydro-X
Micro-SD for Firmware Upgrade
Address Assignment
Plug & Play
Specifications:
Output Voltage: 24V
Maximum Current: 1A
Working Environment: Temperature 32-122°F, Humidity=90%
Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
G.W. per pack: 0.40kgs
Package Contents:

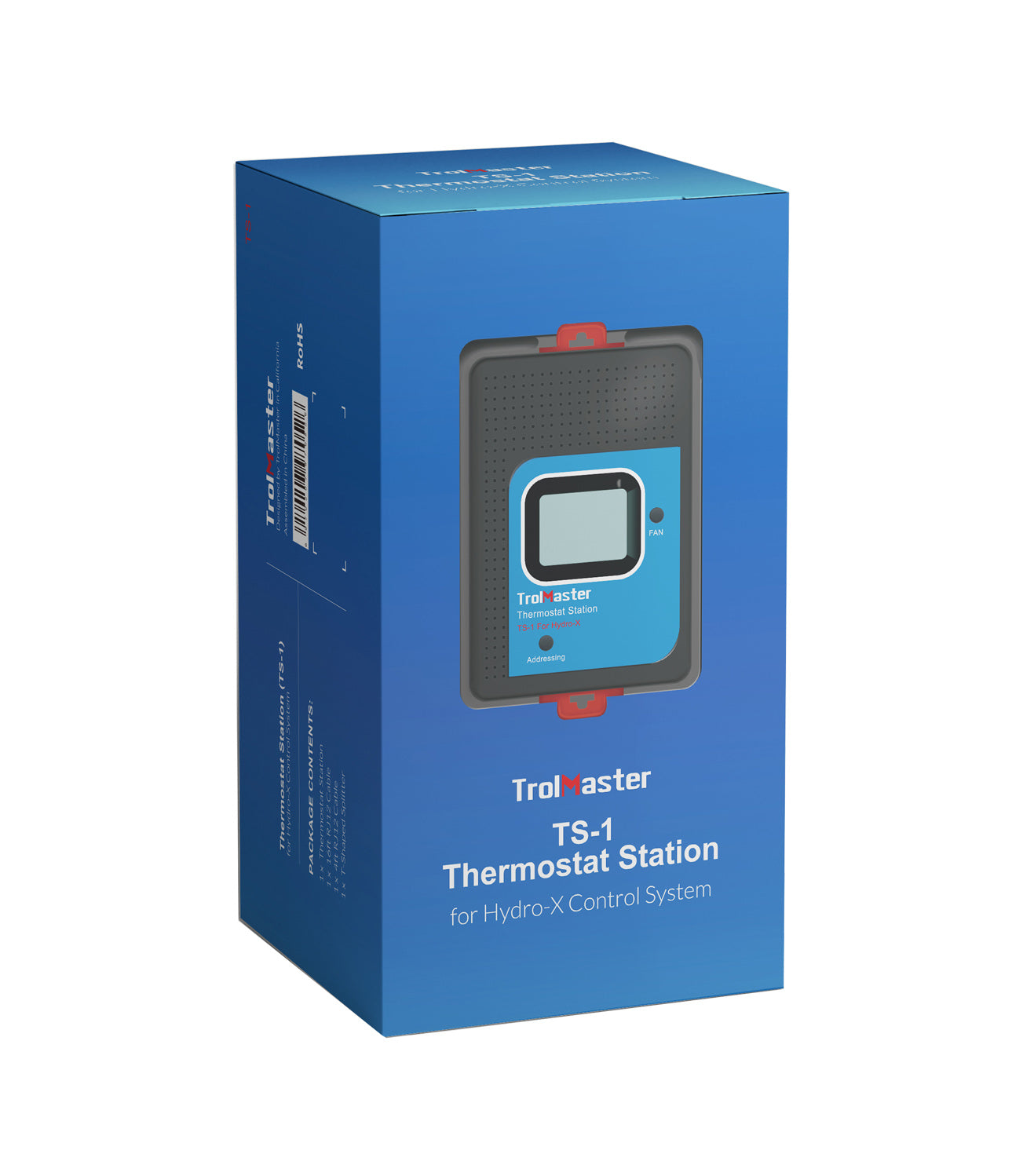

1 x Thermostat Station (TS-1)
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
1 x RJ12 T-Splitter
