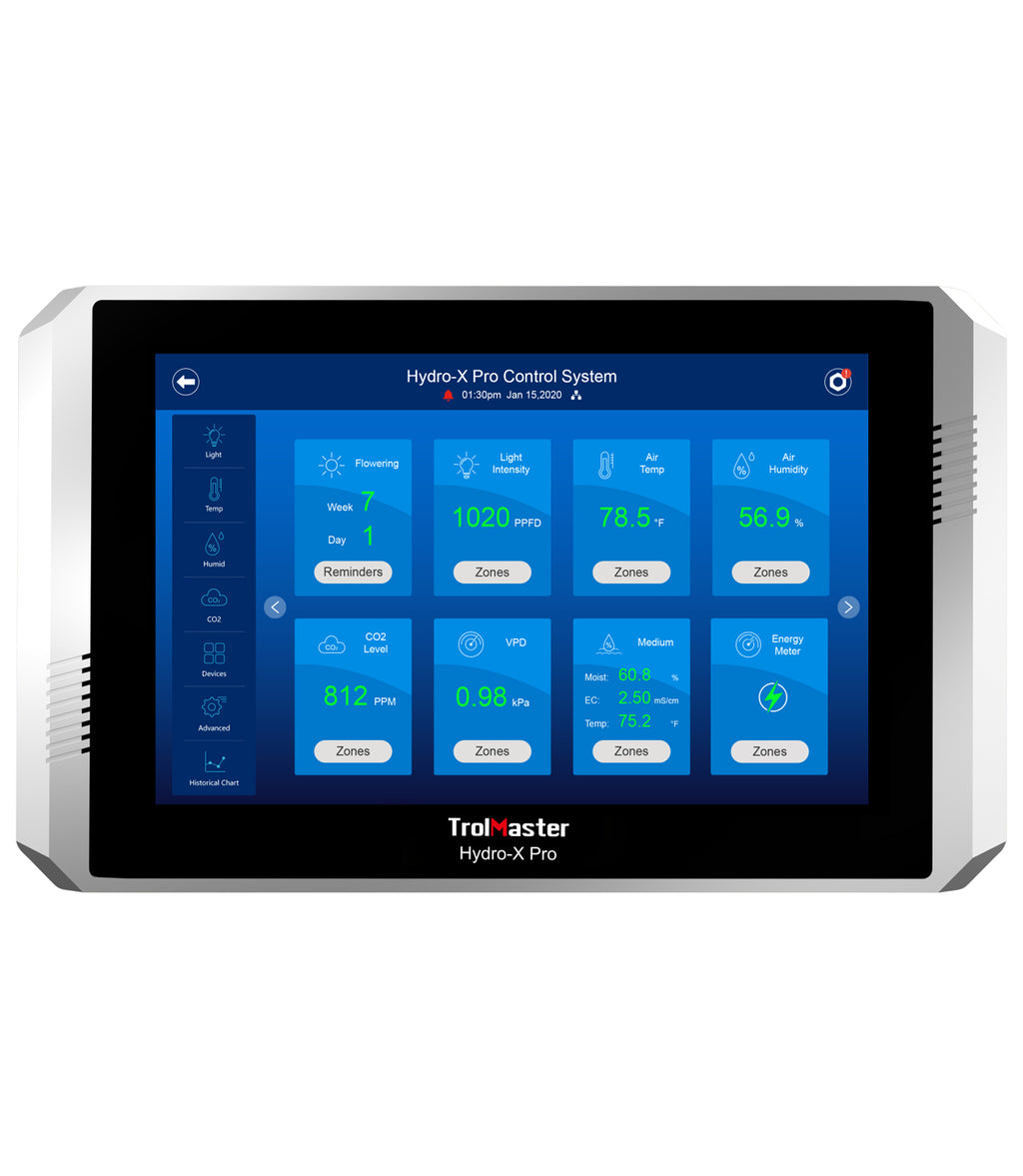

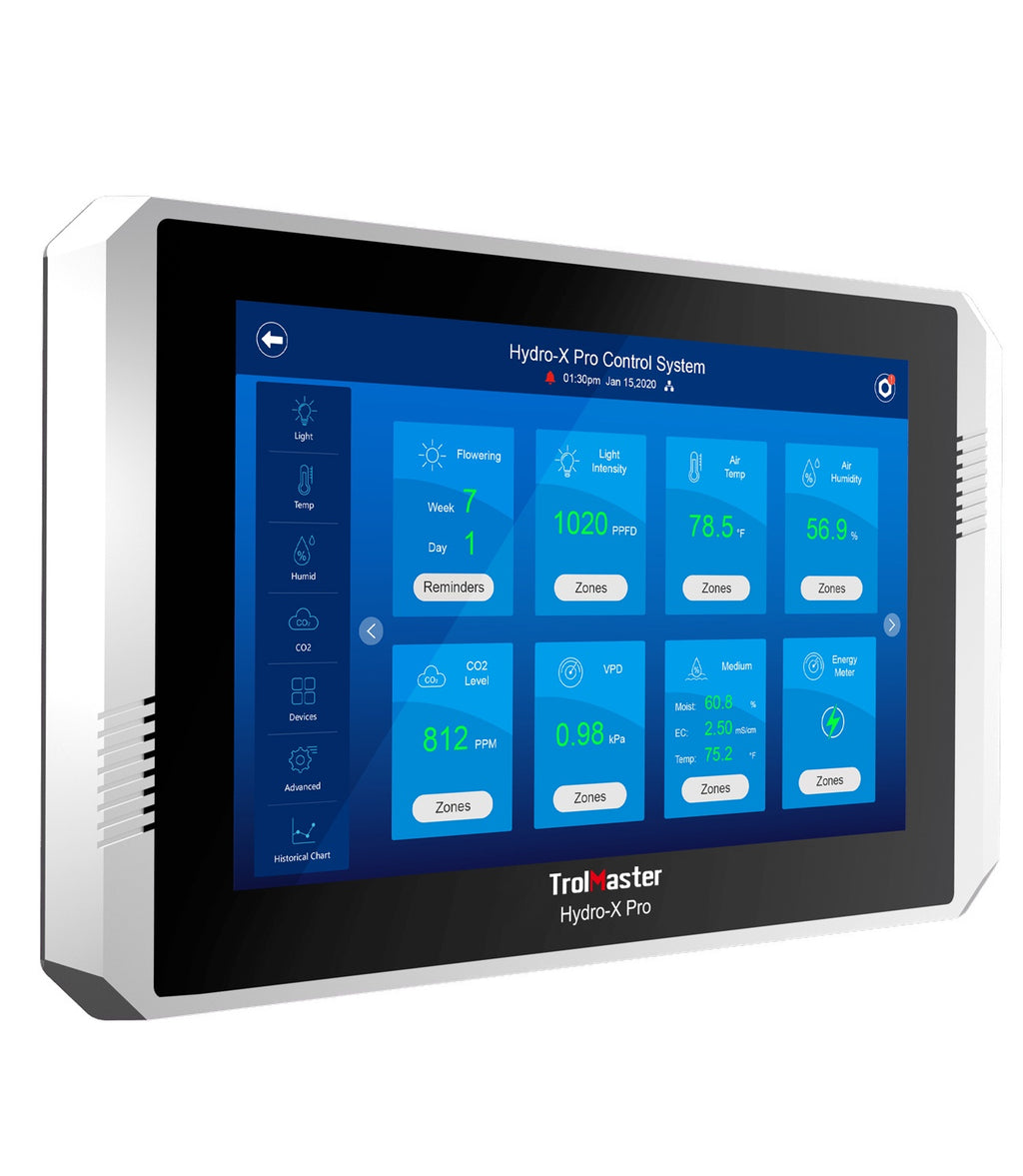

TrolMaster continues the revolution with a 10” touch-screen and a web-based software. The Hydro-X Pro also backwards compatible with all current Hydro-X control / device modules. It provides greater flexibility and allows any plug-in module to be addressed to be whatever the user wants. The user can also set up each module to have multiple “conditions” that will activate the module, allowing for almost unlimited control options.
The Hydro-x Pro is designed to be a single room controller for reliability and ease-of-use. The Hydro-X Pro expands the capability of the original Hydro-X by allowing up to 50 sensors and up to 50 separate control modules to be connected to a single Hydro-X Pro. Multiple sub-zones can be created within the single grow space by linking a specific sensor, to a specific control function(s). The new 4-in-1 sensor comes with a LCD screen which provide the ease of onside monitoring.
Each of the variables (Temperature, Humidity, CO2, Light) can be controlled independently, meaning a customized ramp-up/down can be used to closely simulate natural outdoor conditions, or simply allow complete customization of the environment. Displayed on an easy-to-read and construct “graph” it allows the user to have 100% control of their environment. Another powerful feature of the Hydro-X Pro is the built-in calendar and calendar presets that allows the user to schedule an entire crop’s “recipe” within the Hydro-X Pro. All settings can be specified by the user as they “build” their multi-week crop schedules. Reminders can also be programmed to ensure critical tasks are not forgotten.
The web-based software provides easy access and more advanced remote control. Onboard data acquisition and the ability to store and share setting between multiple devices, means that user-defined programs & settings can be saved and loaded into multiple Hydro-X Pro units with ease. A personalized screensaver page can be uploaded through a USB port.
*Internet Connection Note: TrolMaster's main controllers can be connected to the internet in order to use the available APP. Most internet services available including land-based and cellular internet are compatible. However, HughesNet / Viasat Satellite internet is NOT compatible with TrolMaster controllers at this time.
*Firmware Update Note: To update firmware on the TrolMaster's HCS-2 controller, you must use a USB thumb drive that is 32GB or less capacity.
Features:
10.1" Touchscreen
Compatible with MBS-PRO 4-in-1 Sensor
Calendar Control
Fully Customizable
Free Smart Phone App plus Web-base control system
Specifications:
Input Voltage 100-240V~, 50/60Hz, 0.5A
Tension D'entree 100-240V~, 50/60Hz, 0.5A
Certifications ETL/FCC
Certifications ETL/FCC
Degree of Ingress Protection IP20
Indice de protection IP20
Max Number of HID Fixtures 256*2
Max Distance to Device to be connected 1000 meters
All-in1 Pro Sensor (MBS-PRO) Max 50 Sensors in Combination
Full Spectrum Quantum Sensor (MBS-PAR)
Water Content Sensor (WCS-)
Device Stations Max 50 devices in combination

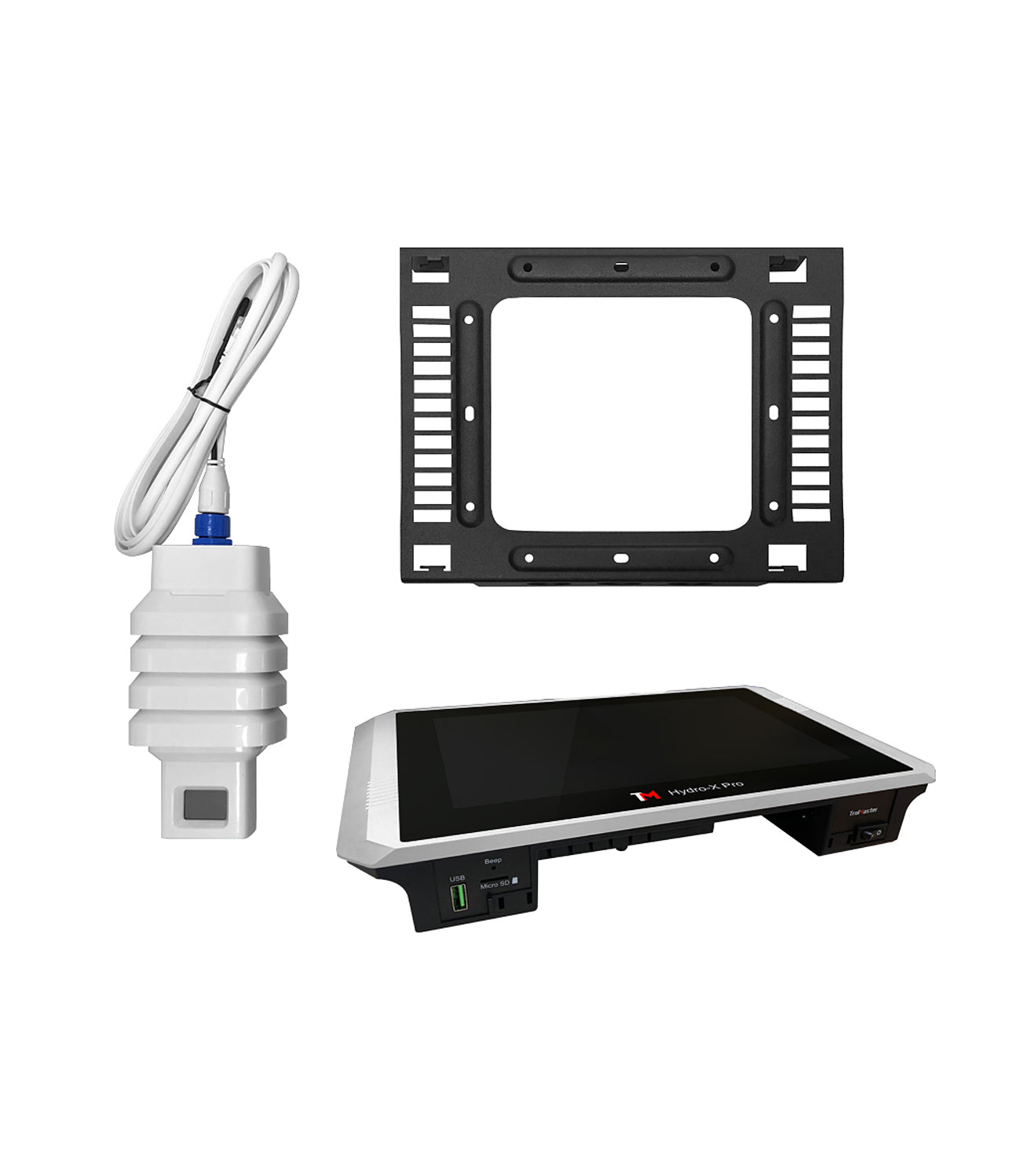

Included:
1x HCS-2 Controller
1x MBS-Pro Sensor
1x Mounting Plate
