Description

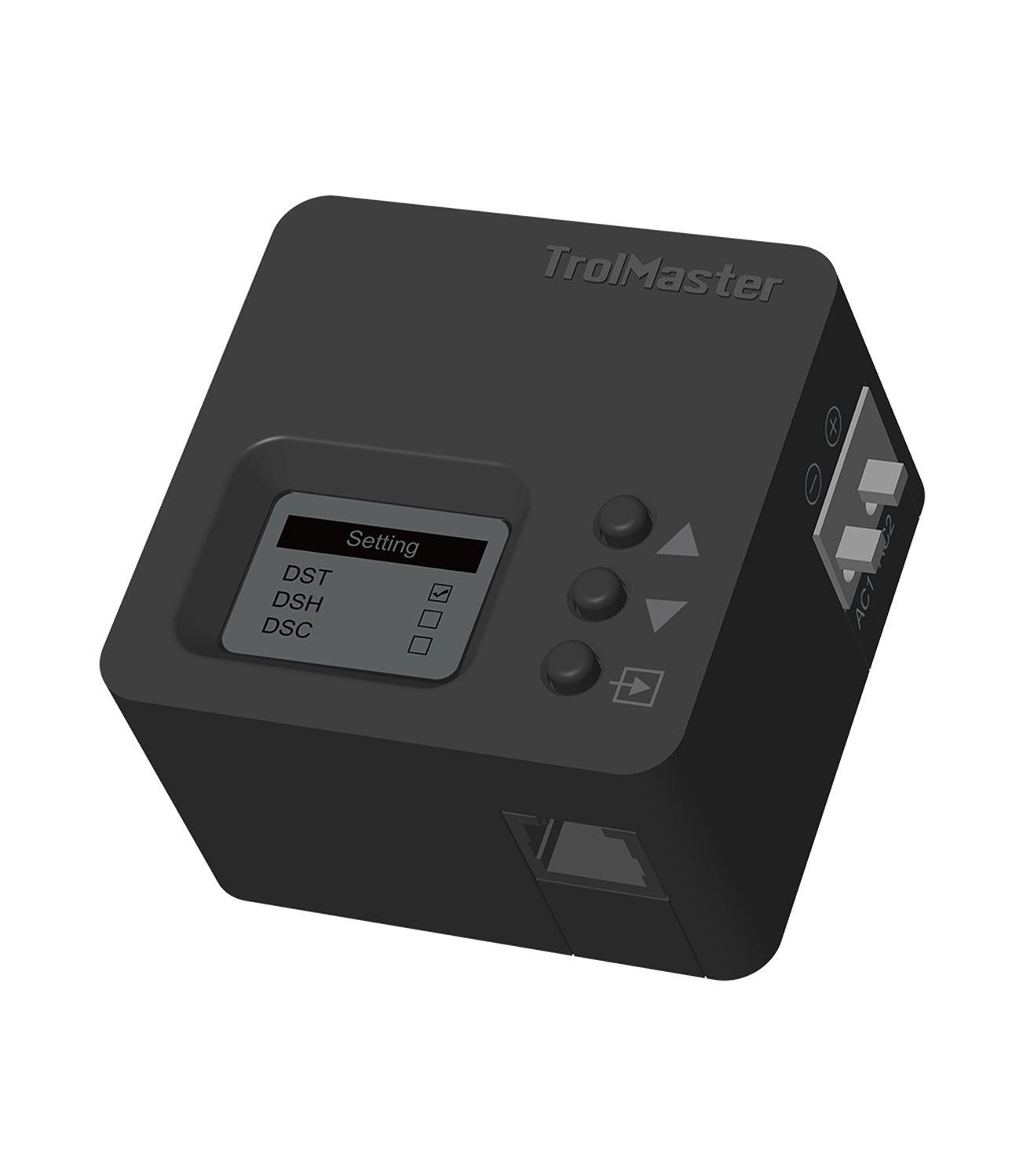

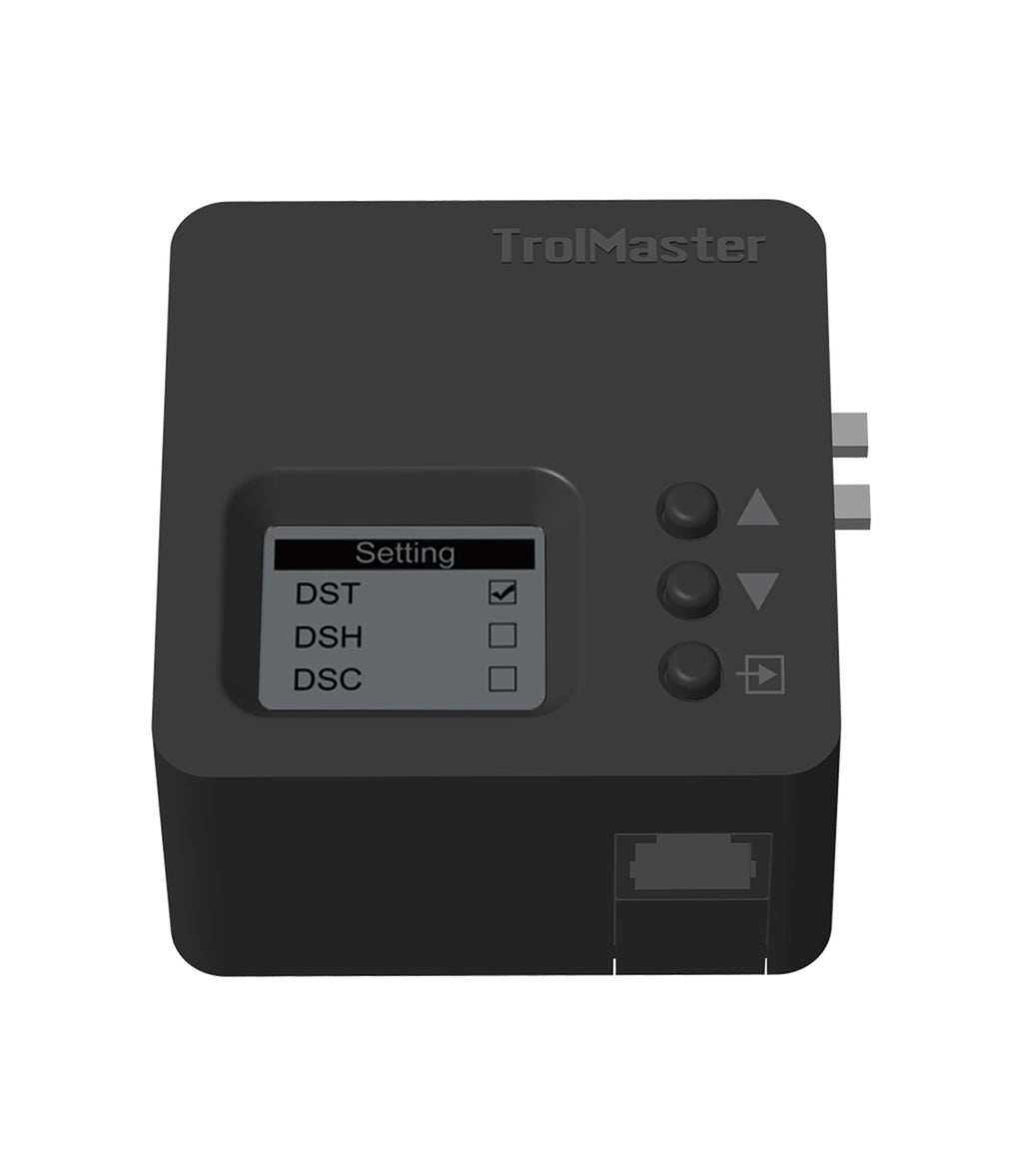

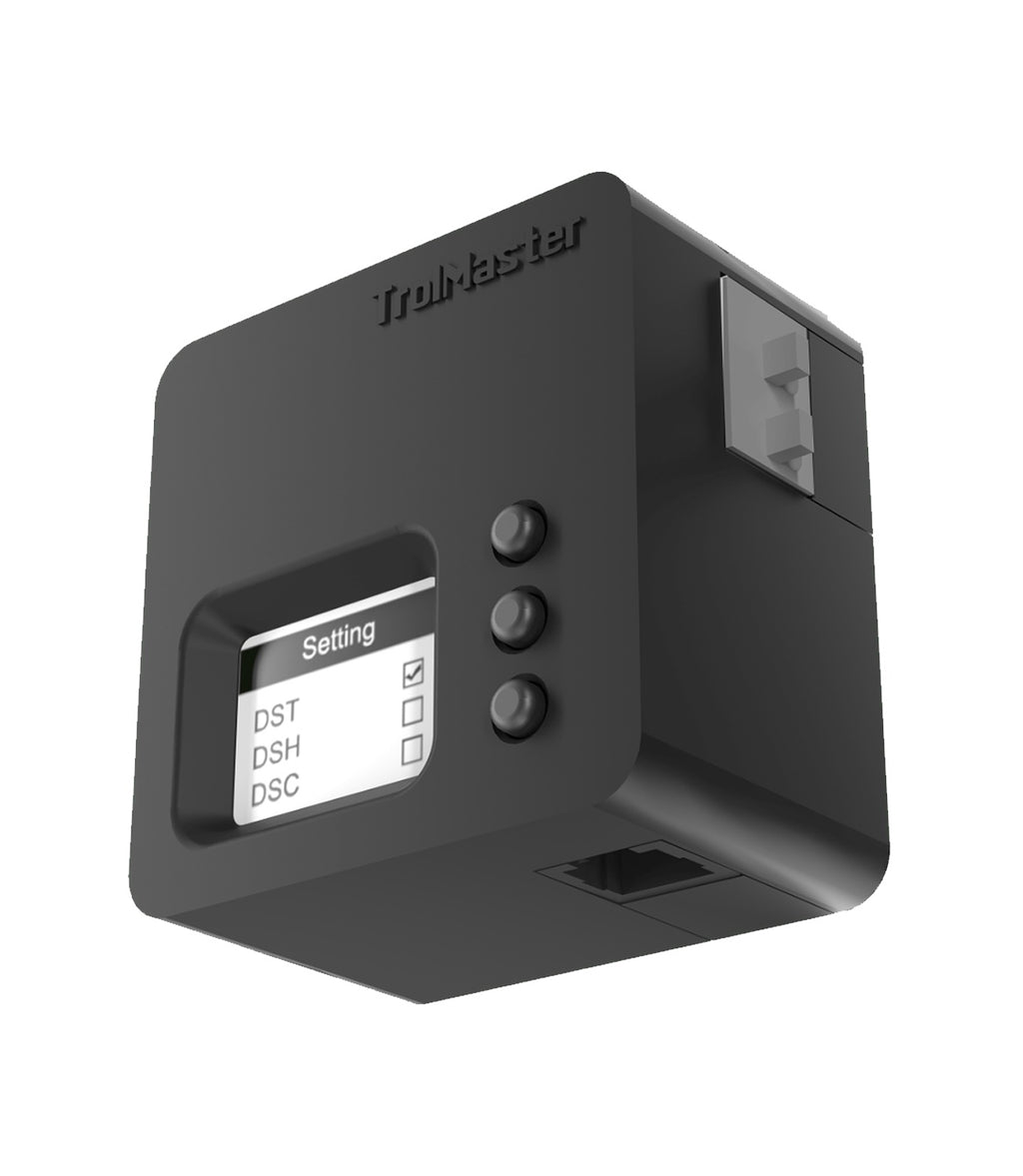

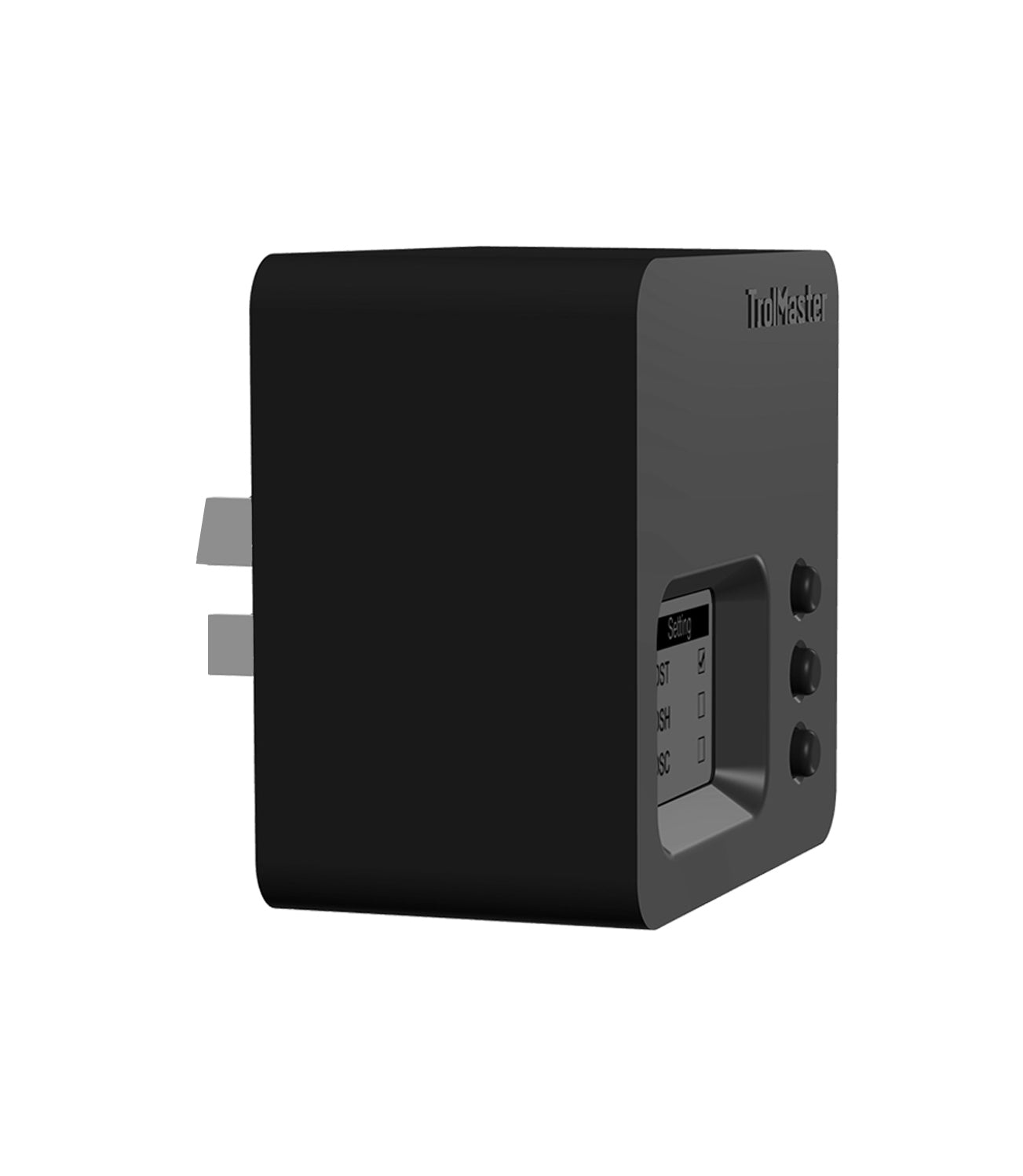

The Trolmaster DSV-2A (Australian plug version of the DSV-1)
The Trolmaster DSV-2A is a low-voltage output module that can be used on the Hydro-X and Aqua-X controllers. The DSV-2A can be addressed to be used as a temperature, humidity, CO2, or timer device module.
Multiple voltage outputs are selectable by the user. The DSV-2A can output either 12 or 24 VDC up to .5 amps, or 12 or 24 VAC up to 4.8VA. Once the module is configured it will activate the low-volt device wired to the DSV-2A.
This allows the user to directly connect low-voltage devices such as solenoids, valves, audio visual alarms or any other device that requires 12 to 24-volt AC or DC power to operate.
*By pressing and holding the top button on the DSV-2A, users can manually override the module and turn it ON / OFF.
Multiple voltage outputs are selectable by the user. The DSV-2A can output either 12 or 24 VDC up to .5 amps, or 12 or 24 VAC up to 4.8VA. Once the module is configured it will activate the low-volt device wired to the DSV-2A.
This allows the user to directly connect low-voltage devices such as solenoids, valves, audio visual alarms or any other device that requires 12 to 24-volt AC or DC power to operate.
*By pressing and holding the top button on the DSV-2A, users can manually override the module and turn it ON / OFF.
Features:
LCD Display, Easy Operation
Seamless Connection with Hydro-X and Hydro-X Pro
Multiple purposes assigment
Plug & Play
Specifications:
Input Voltage: 100~240VAC, 50/60Hz
Output Voltage: DC24/ AC24 0.25A
DC12/ AC12 0.5A
Working Environment: Temperature 32-122°F, Humidity=90%
Packaging Dimensions: 85mm x 80mm x 90mm
Package Contents:
1 x Low-Volt Station DSV-1
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
1 x RJ12 T-Splitter
