Description

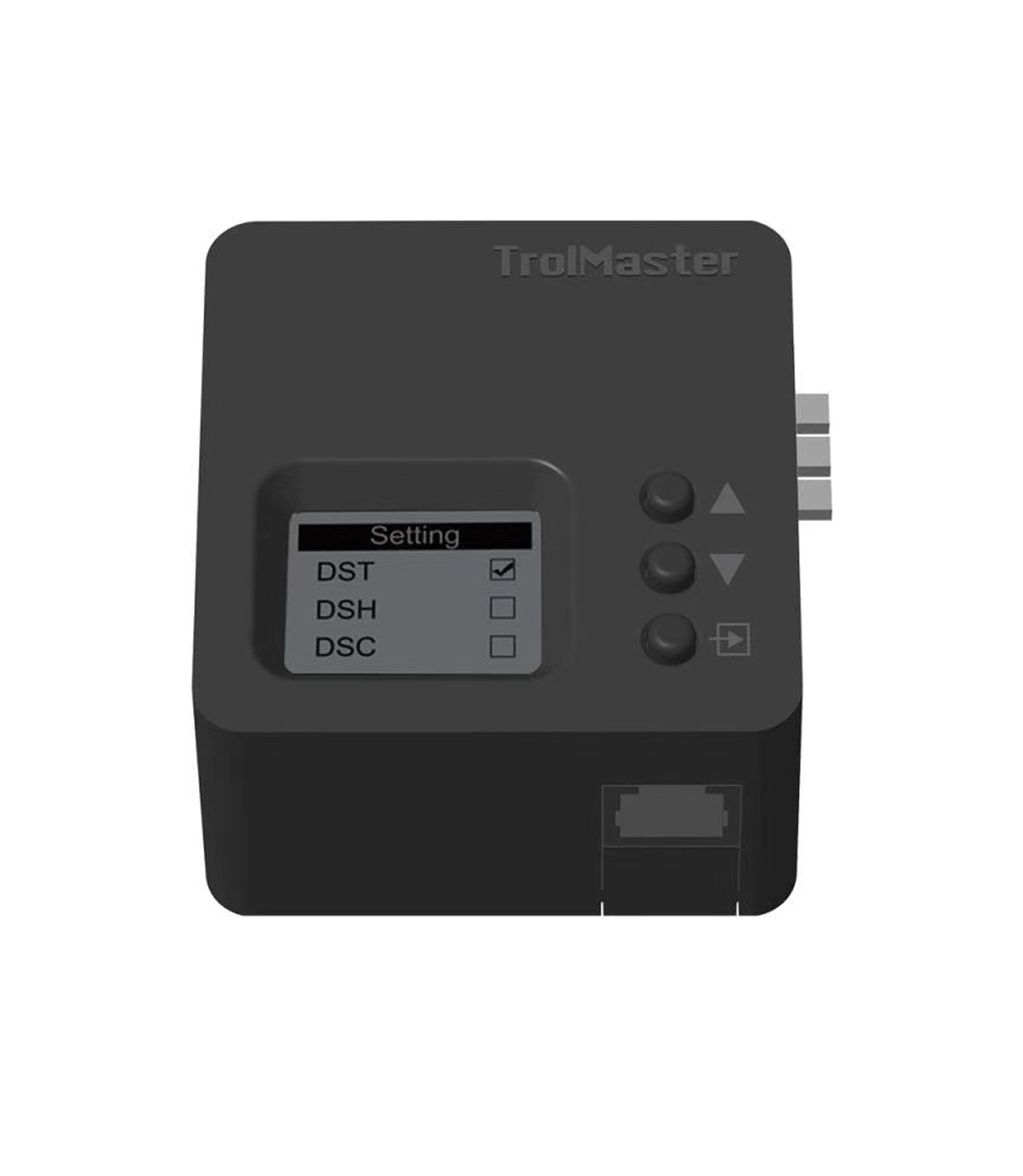

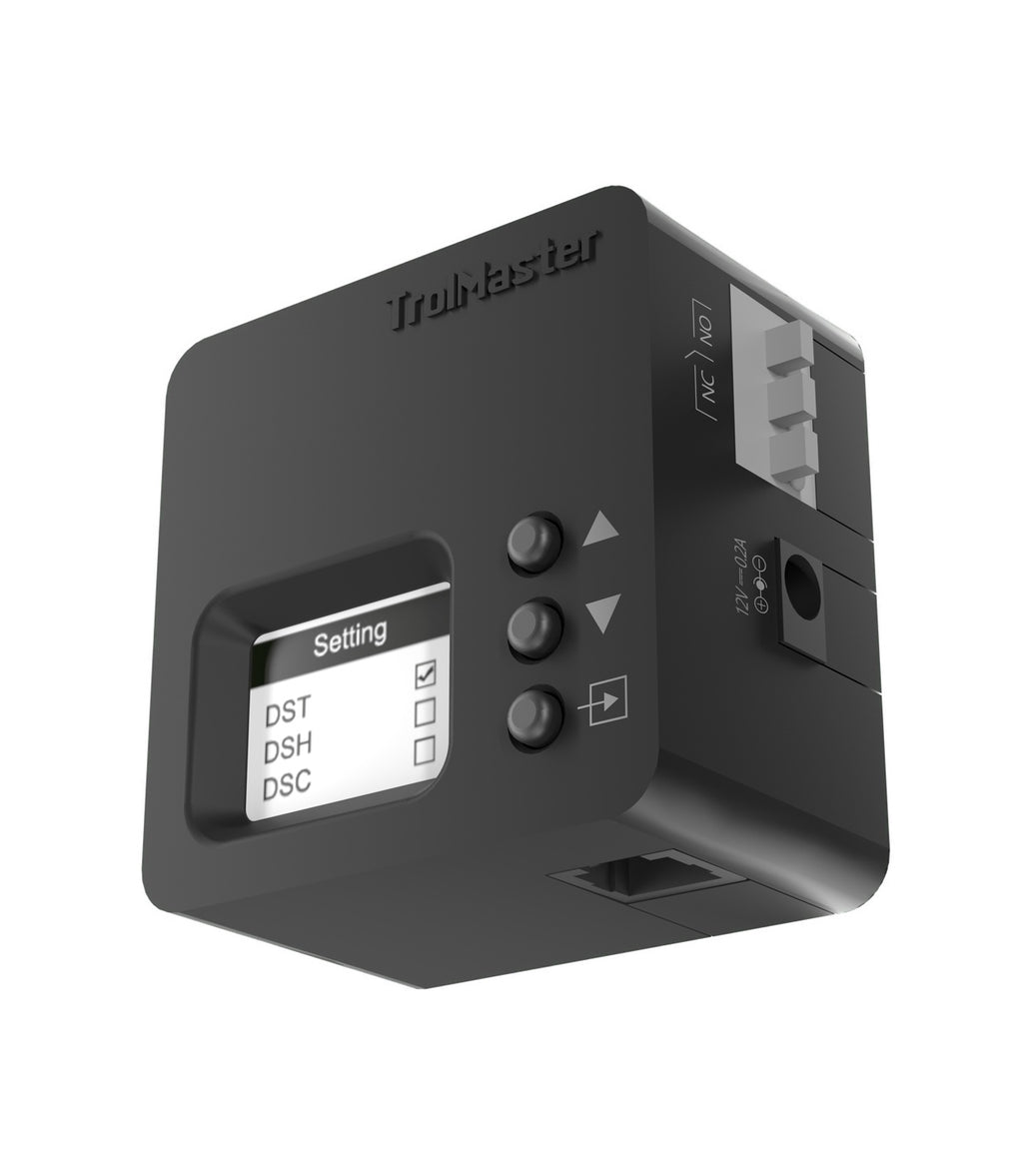

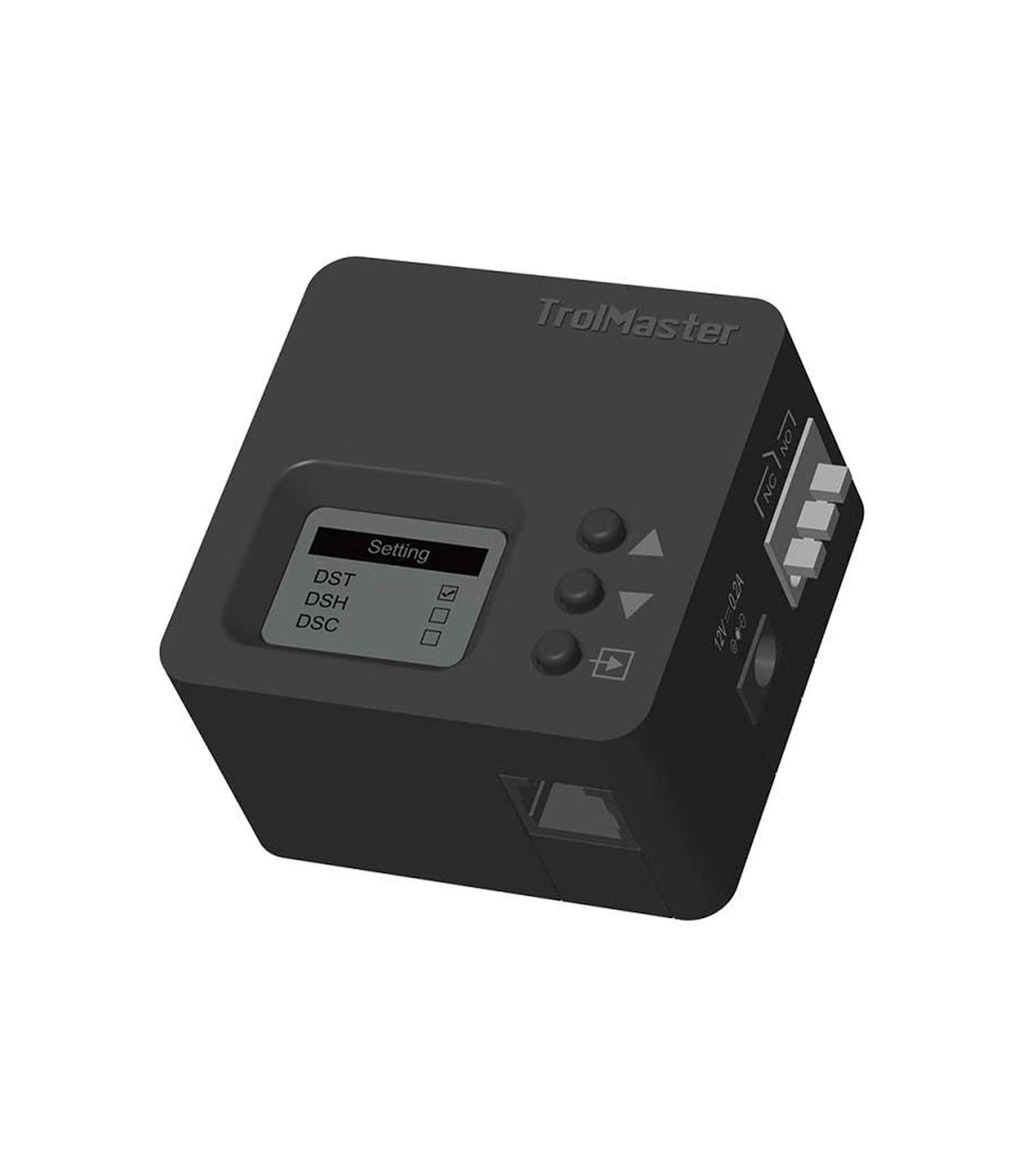

Dry Contact Station DSD-2A (Australia Plug), also known as DSD-1 (USA AC Plug model)
The Trolmaster DSD-2A Dry-contact module provides a simple and flexible solution to users who want to connect to & control devices using the Hydro-X or Aqua-X using a “dry-contact” or relay to activate the device. Many devices require dry contact closure to be controlled or activated. The DSD-2A is the product that you need to control those types of devices.
*The DSD-2A can be configured to have the same functions as other TrolMaster’s power modules. The DSD-2A connects to the “devices” line on the Hydro-X and can be set to control an almost infinite number and types of devices such as:
Lighting contactors
Light Deprivation curtains
Pump contactors
Temperature devices
Humidity devices
CO2 devices
Lighting contactors
Light Deprivation curtains
Pump contactors
Temperature devices

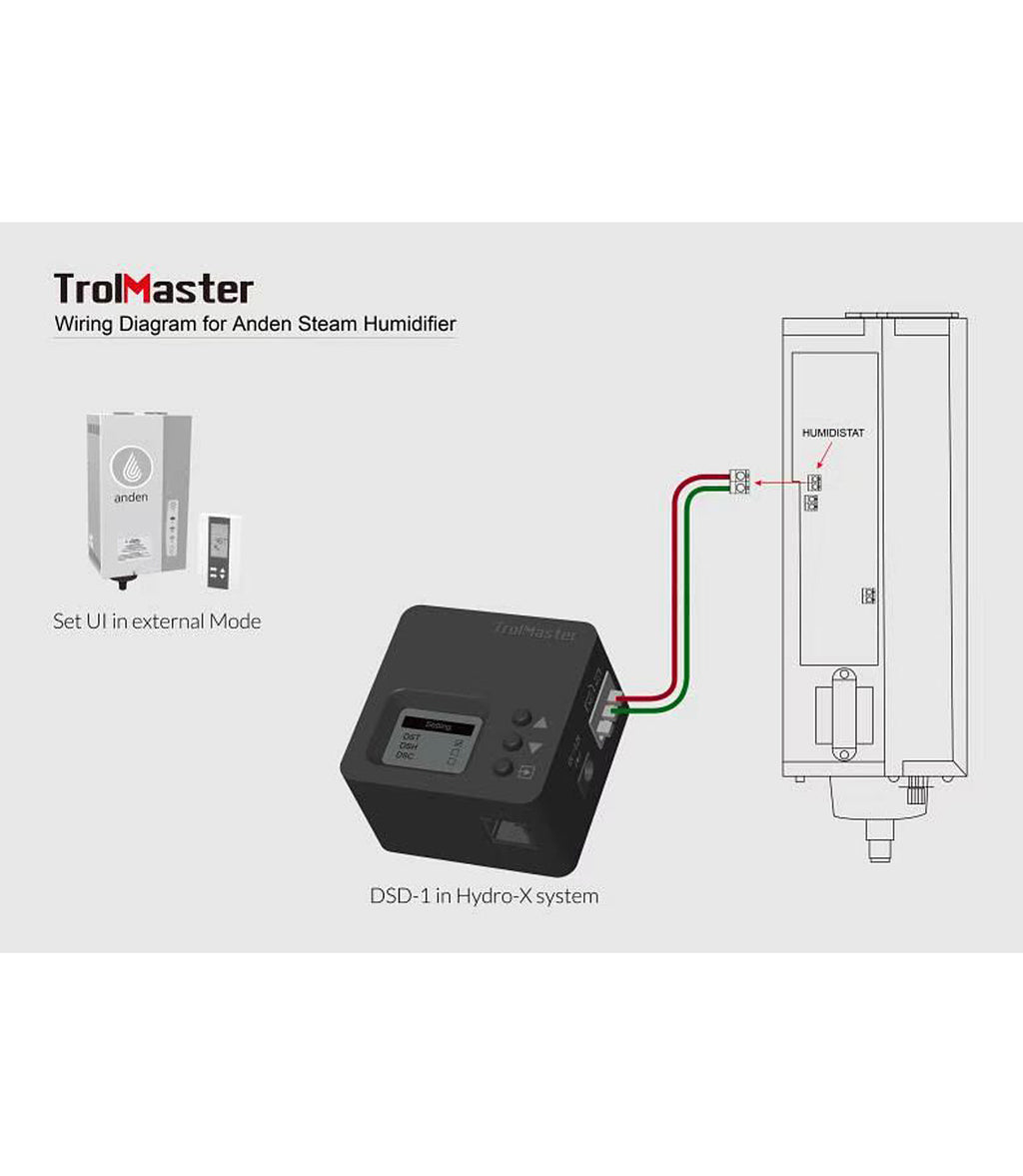

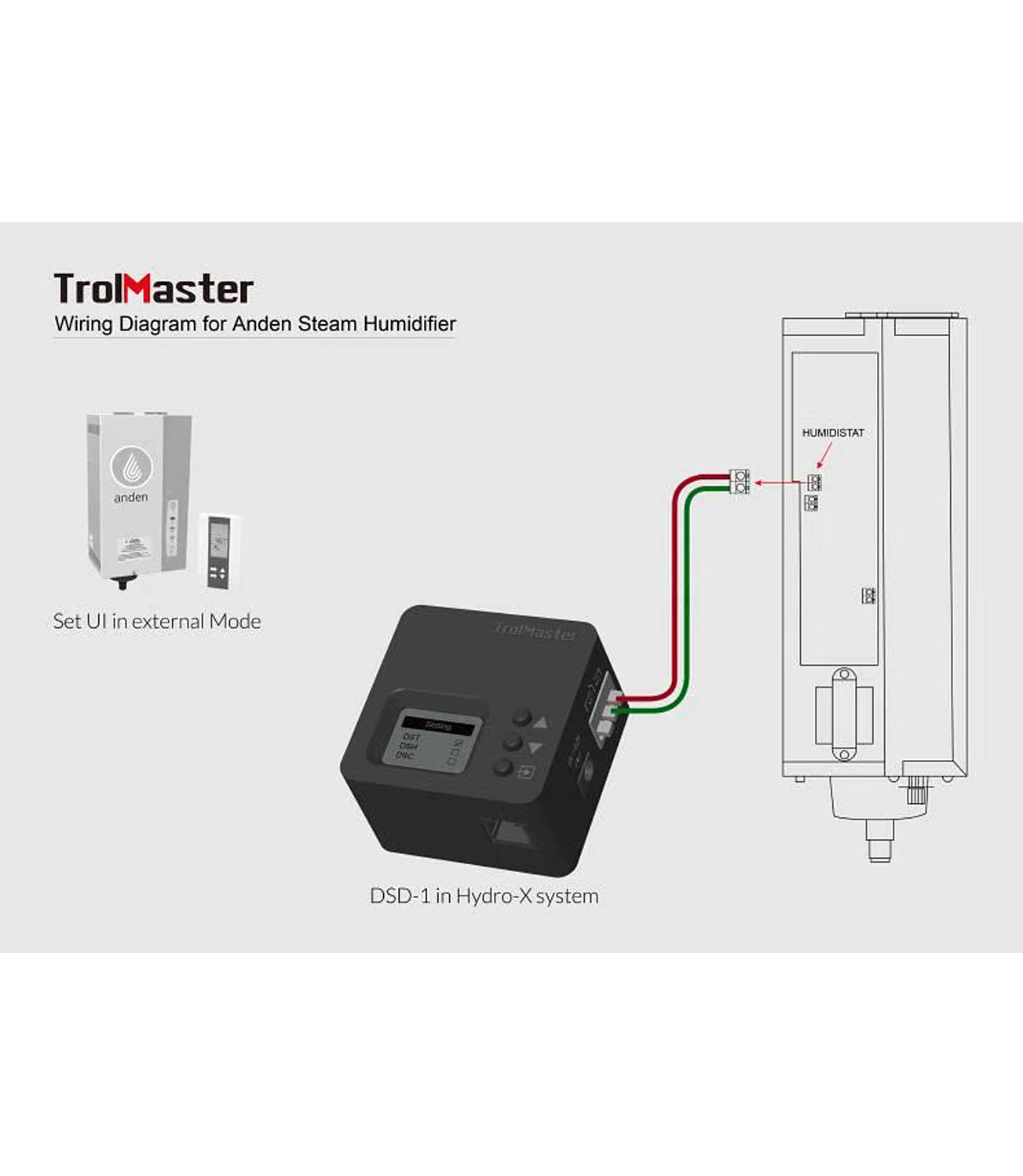

Humidity devices
CO2 devices
*By pressing and holding the top button on the DSD-2A, users can manually override the module and turn it ON / OFF.
* Consult TrolMaster for questions concerning your particular device.
Features:
• LCD Display, Easy Operation
• Seamless Connection with Hydro-X
• Multiple purposes assigment
• Plug & Play
Specifications:
Input Voltage: 100~240VAC, 50/60Hz
Output Current: 6A
Dry Contact Output: 30VDC/250VAC,6A
Working Environment: Temperature 32-122°F, Humidity=90%
Packaging Dimensions: 85mm x 80mm x 90mm
Included:
• 1 x Dry Contact Station DSD-1
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter
