Description

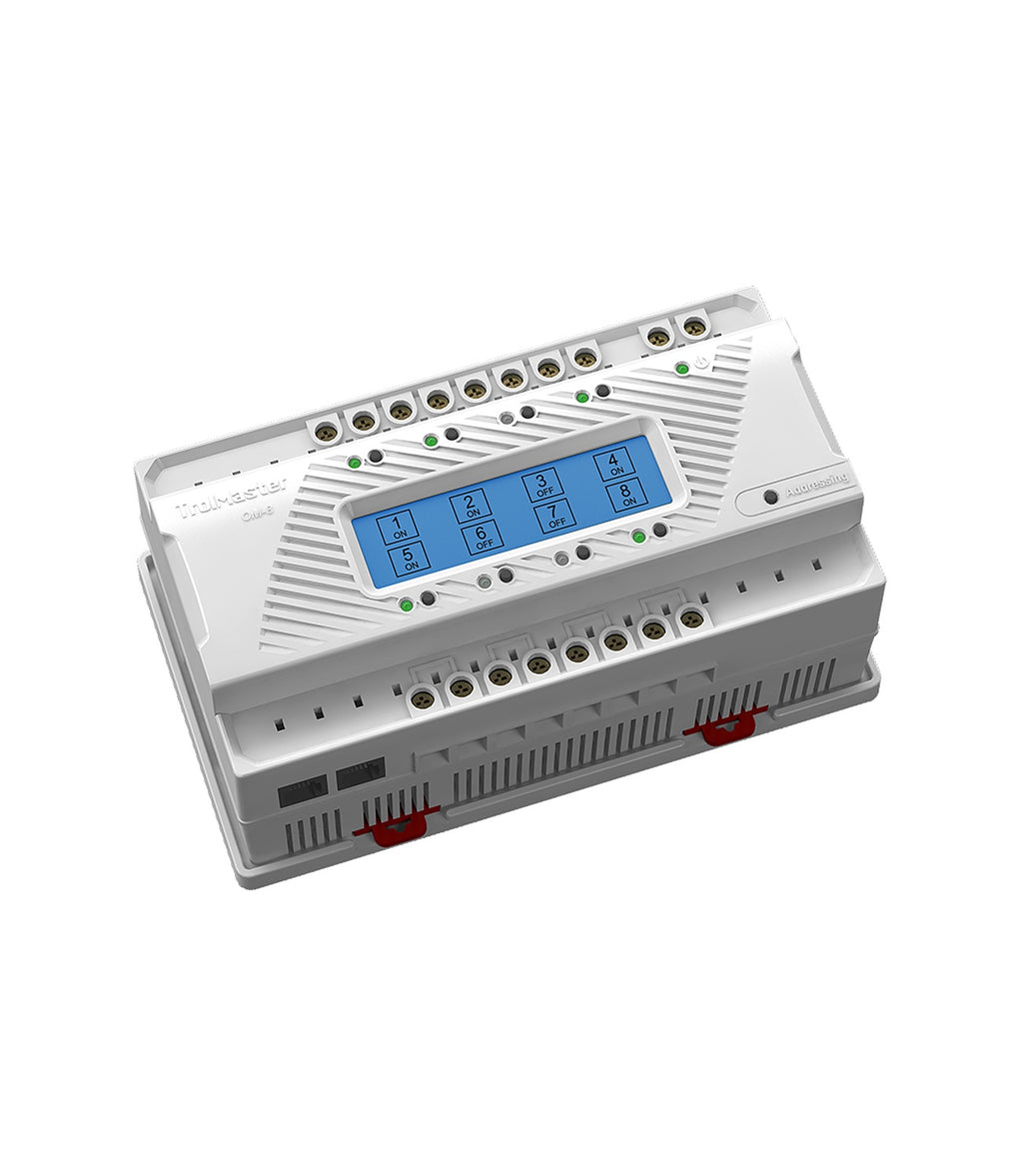

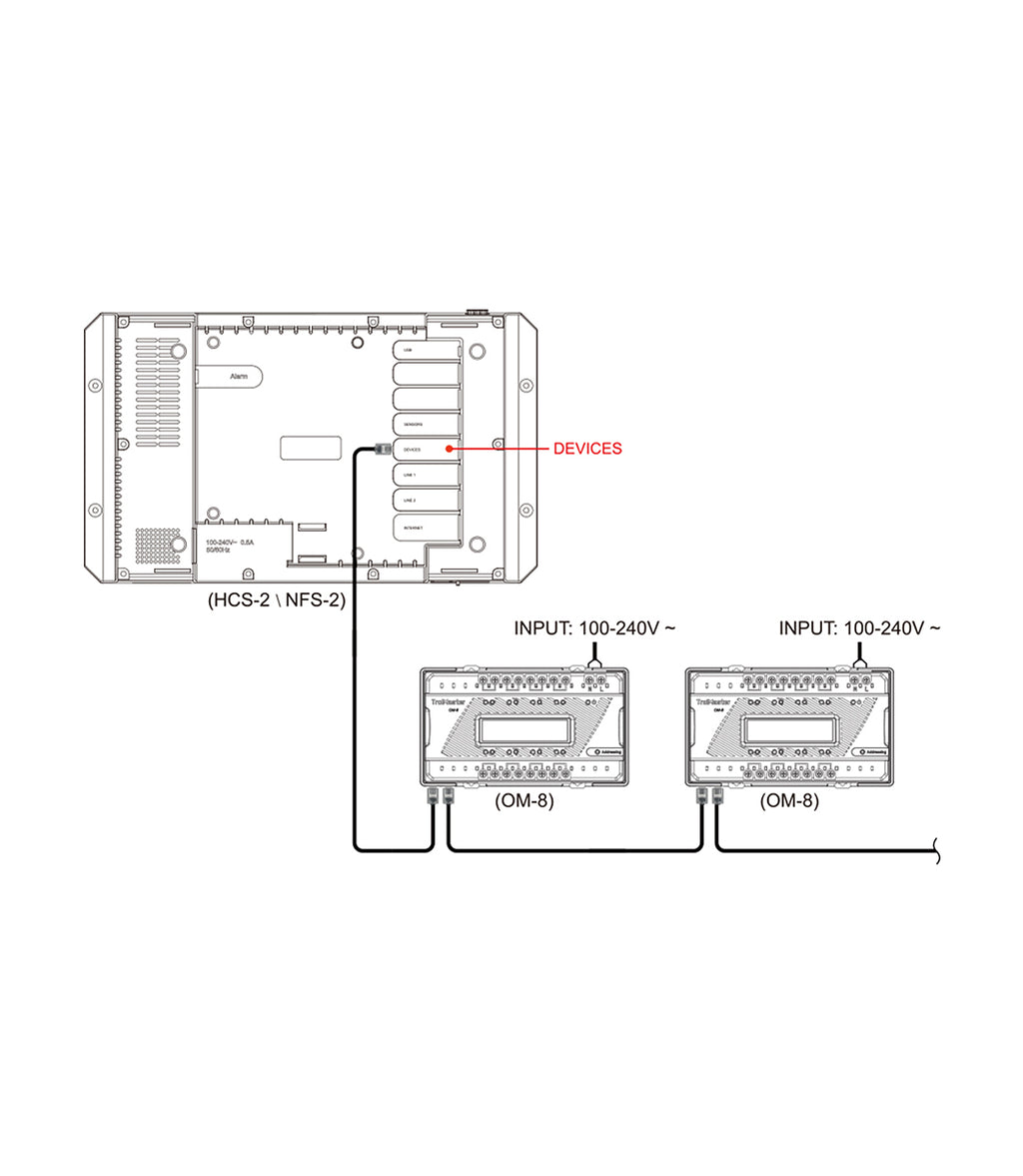

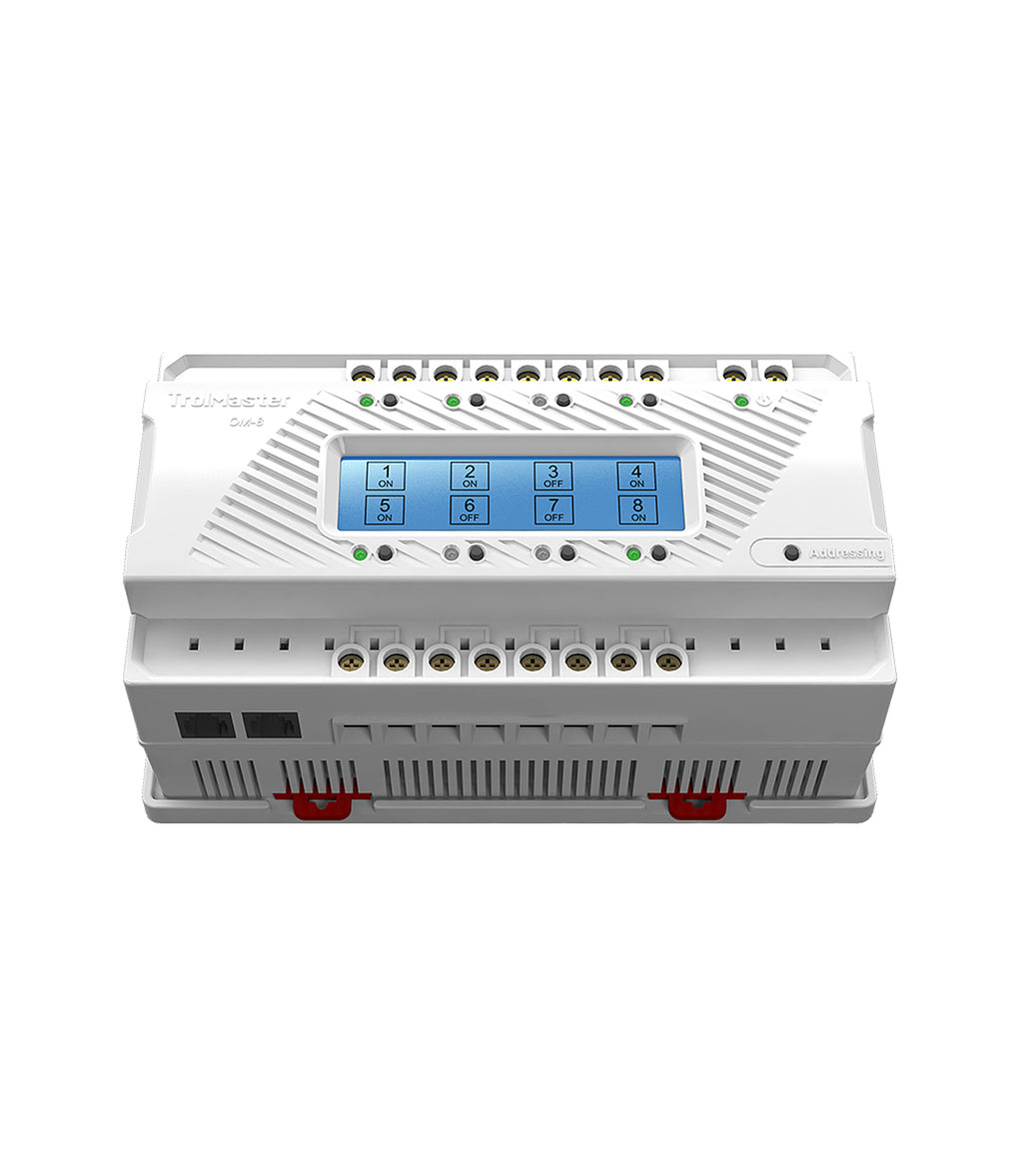

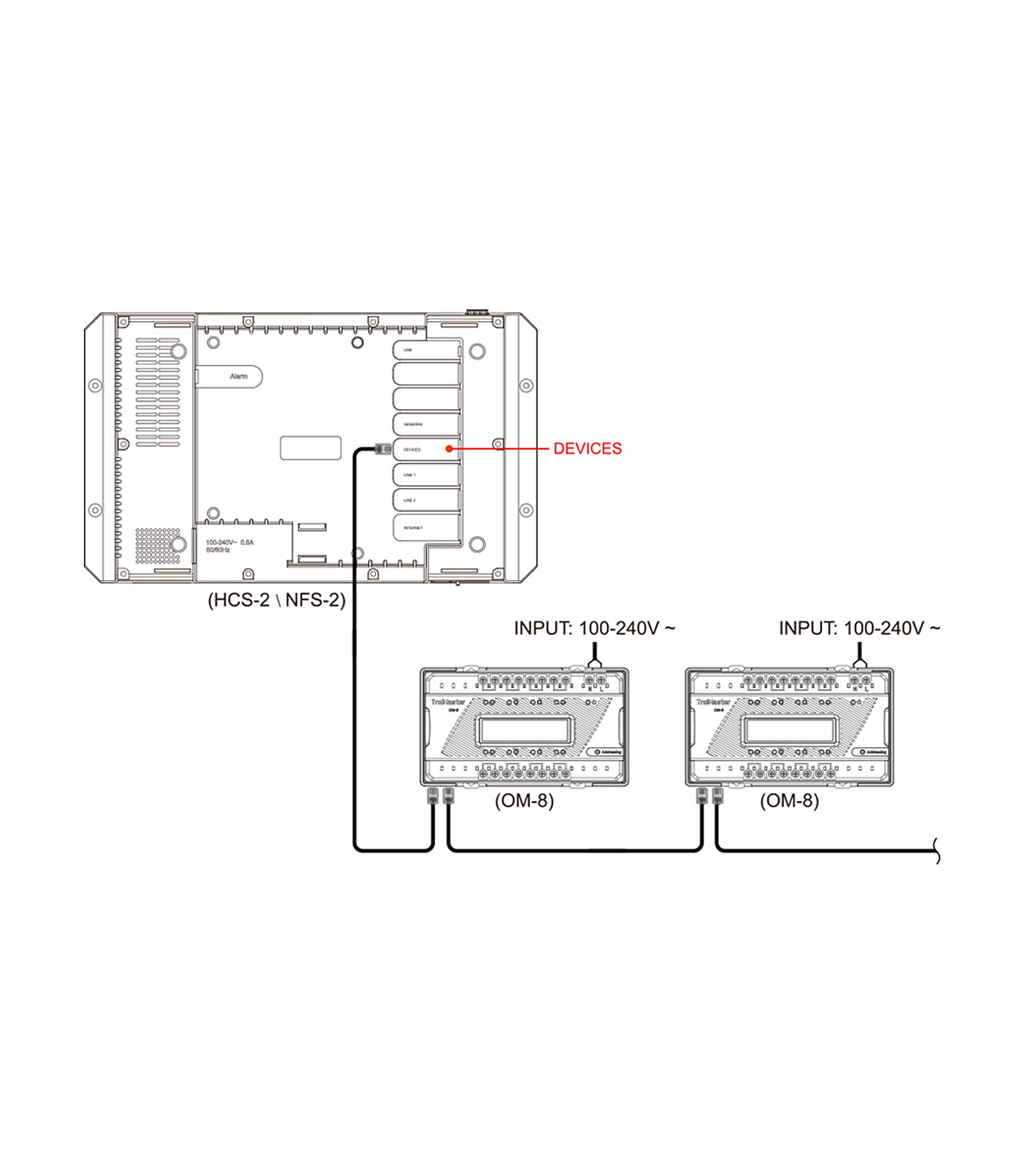

The OM-8 dry contact board allows the main controller to control up to 8 individual outputs on it. It is specially designed for the Hydro-X Pro and Aqua-X Pro system. It has 8 individual electrical contacts, and allows up to 12 Amp current through each contact. *The OM-8 should be mounted inside an electric control cabinet, and connected to a power supply between 100-240 VAC.
*When used with the Aqua-X Pro system, OM-8 can activate pumps/solenoids at a higher amperage of 12 A.
Features:
• LCD Display, easy to set up and use
• Easy installation
• Overload protection on each of the 8 outputs @ 12 amps
• Each contact can be forced open or closed for a duration of 30 minutes
Specifications:
Max Relay Amperage: 12A Per Output
Output Working Environments: Temperature 32-104°F, Humidity≤90%
Package Dimensions: 255mm(L) x 135mm(W) x 95mm(H)
Included:
• 1 x OM-8
• 1 x 16 ft RJ12 Cable
