Description

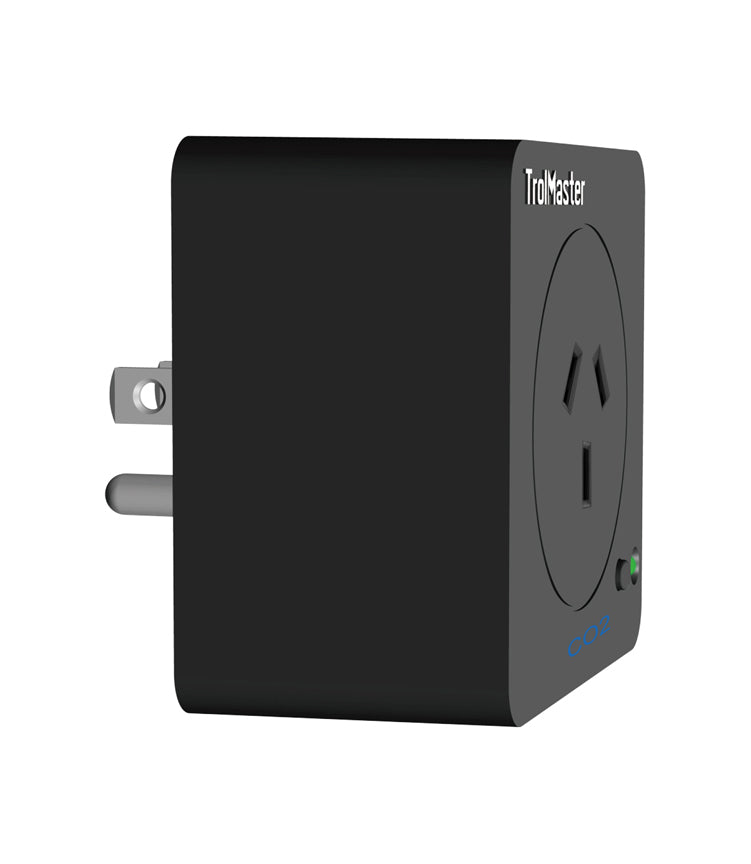

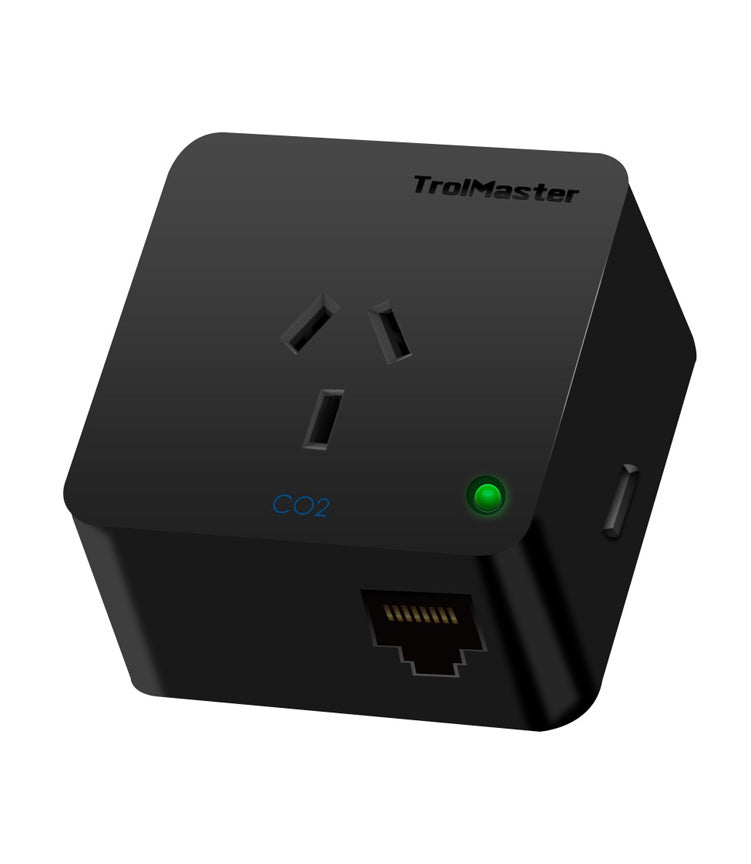

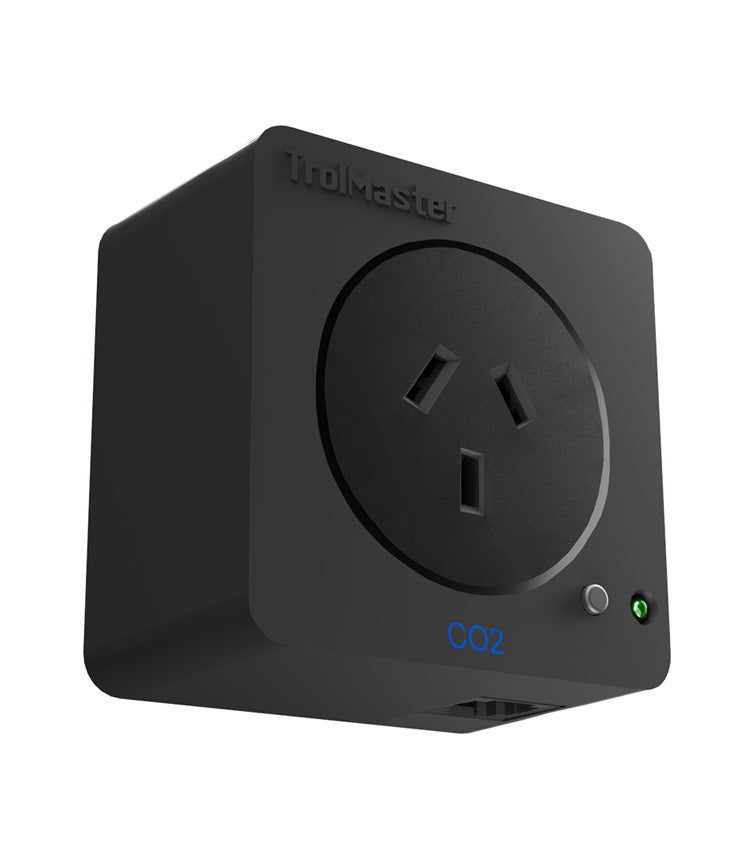

The TrolMaster DSC-2A CO2 control / device module allows user the to easily connect and control standard supplemental CO2 devices or CO2 exhaust controls to the Hydro-X. Any CO2 device that is 10-amps @ 120 volts or less can be controlled by the DSC-2A
Features:
LED Power Indicator
3-Prong Attaching Plug
RJ12 Cable Socket
Addressing
Plug & Play
Specifications:
Input Voltage: 100~240 VAC, 50/60Hz
Output Current: 10A
Output Voltage: 100~240 VAC, 50/60Hz
Working Environments: Temperature 32-122°F, Humidity=90%
Package Contents:
1 x Device Station
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
1 x RJ12 T-Splitter
LED status:* Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/link the module when first installed.
* Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
* SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
* Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.
* Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
* SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
* Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.
