Description
The NFS-2 controller from TrolMaster is one of the most advanced irrigation controllers available today. The NFS-2 is a multi-functional controller which can control multiple irrigation solenoids and pumps. The NFS-2 can also monitor multiple water sensors that can measure pH, EC / PPM, temperature and water content sensor. There is also a new optional DFW-1 flow-meter that serves multiple functions. Each of the solenoids and pumps can be "linked" to work together so that multiple grow areas can be controlled by a single NFS-2. When combined with the optional AMP-3, WCS-1 and WCS-2 sensors and the new DFW-1 flow-meter, the NFS-2 allows the user to monitor up to 50 sensors and receive mobile notifications if a problem is detected by the system. The NFS-2 was created to allow users to customize their irrigation cycle and be able to control the irrigation events by using either the DFM-1 digital flow-meter, WCS-1 or WCS-2 moisture content sensors or by simple timers. Each device being controlled by the NFS-2 can conceivably have an unlimited number of irrigation "events" each 24 hour day.
Features:
• 10’ touch screen - Phone monitoring (TM+) & web-based controlling
• Increased Product Capacity of up to 300 pumps and 300 solenoids
• Expanded Irrigation Schedule up to 50 individual schedules
• Multiple reservoir monitoring on pH, EC, and Temp (with AMP-3)
• Medium EC, Temp and Moisture monitoring (with WCS-2)
• Water consumption Volume monitoring (with DFM-1)
• Feed on Demand
• Feed by volume
• Auto-fill in the reservoir
• Calendar control for multiple days preset schedules
• Flexible Master pumps connections
Specifications:
| Input Voltage | 100-240VAC, 50/60Hz |
| Certifications | ETL/FCC |
| Degree of Ingress Protection | IP20 |
| Max Distance to Device to be connected | 1000 meter |
| Nutrient Sensors (AMP-3, DFM-1, WD-1) | Max 50 pc |
| Medium Sensors (WCS-2, WCS-1) | Max 50 pc |
| PUMPS (OA6-24, OA6-110, DSP-1, DSD-1,DSE-1, OM-8) | Max 50 pc |
| VALVES (OA6-24, OA6-110, DSP-1, DSD-1,DSE-1, OM-8) | Max 50 pc |
| Working Environments Temperature | 32-122°F, Humidity≤90% |

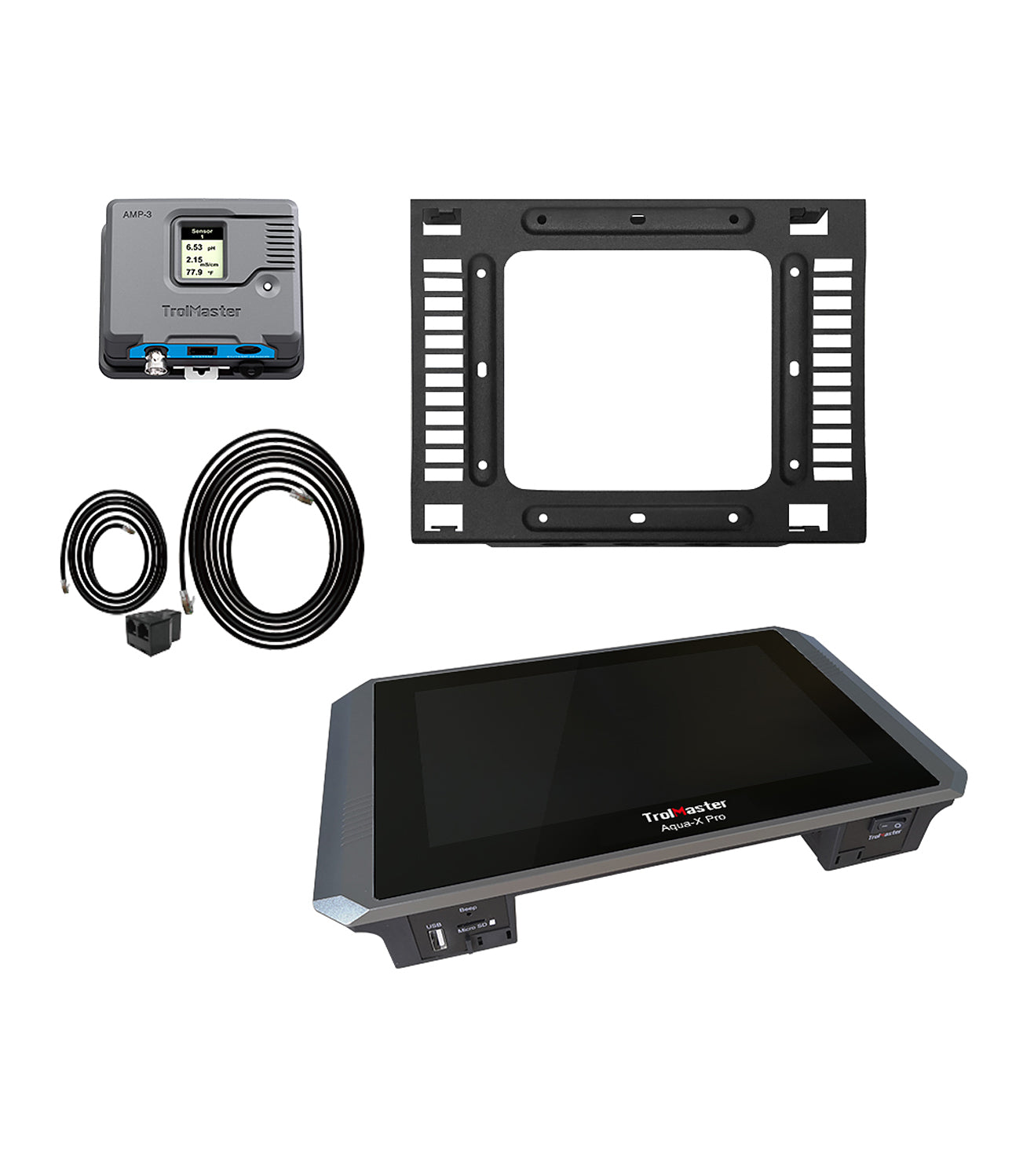

Included:
• 1x Aqua-X Pro
• 1x AMP-3
• 2x 12ft. RJ12 Cables
