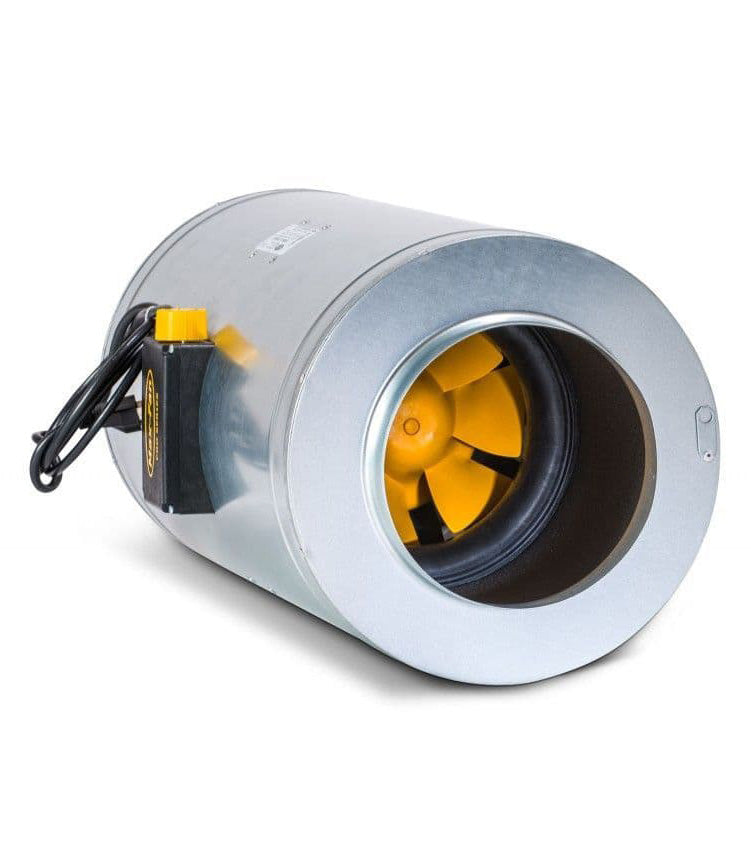

Max Fan Pro Series integrated into a silencer
The Q-Max is the famous Max-Fan Pro Series inside of a silencer. This offers very silent ventilation with the best aerodynamic performance imaginable. The Q-Max is also equipped with our patented rotor-stator system. Add the build in 3-speed switch and high quality insulation to the equation and you’ve got a very efficient Q-Max
Q-Max incorporates the appreciated German made Max-Fan Pro Series, part of the Can-Fan range, into a sound insulated metal casing. This unique combination provides you a very quiet inline mixed flow fan and the best aerodynamic efficiency. With its patented 3D rotor-stator system, the Q-Max conveys significantly stronger air volumes at medium to high pressure values.
The silent operation of the Q-Max is the result of the high quality insulation of the metal casing, the uniform turbulance free air flow and the smooth three speed control. The entire range meets the mandatory ErP requirements for all EU marketed fans.
For efficient performance with the best possible results, we strongly recommend the use of Q-Max together with Can Filters.
Specifications
- Max Fan Pro Series inside a silencer
- More silent and more powerful
- Speed control integrated
- 3 speed switch integrated
- Galvanized metal housing
- Integrated Thermal Cutoff switch inside the motor
- Rotor-stator uniform airflow
- Foam padded silencer for maximal noise reduction
| Material |
Metal |
| Weight |
9.8kg |
| Diameter |
250mm |
| Capacity |
1590m³/h |
| Current |
0.9A |
| Power |
180W |
| Integrated speed switch |
3 speeds |
| Speeds (m³/h) |
1170, 1420, 1590 |
