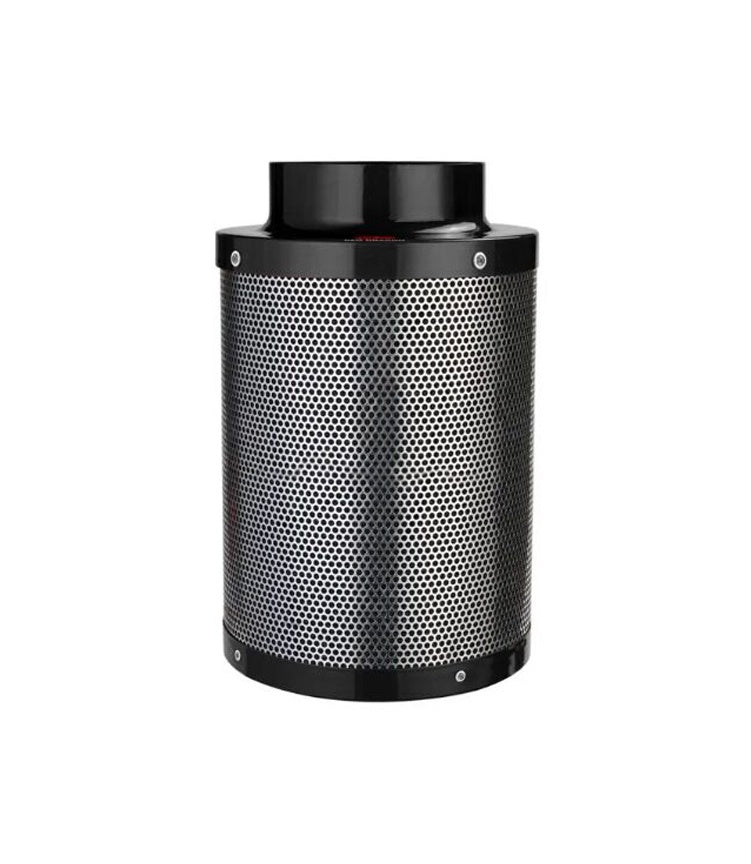

The Red Dragon Carbon Filter 200mm x 500mm Carbon Filter is engineered for growers who demand powerful airflow and superior odour filtration in medium to large grow environments.
Capable of handling up to 1230m³/h, this model integrates seamlessly with high-output inline fans and ducting systems used in serious hydroponic or indoor gardening setups.
Its 50mm thick virgin carbon bed, rated at 960mg/g iodine and 25% butane adsorption, captures volatile organic compounds (VOCs), odours, and airborne contaminants efficiently, ensuring clean and controlled grow space air.

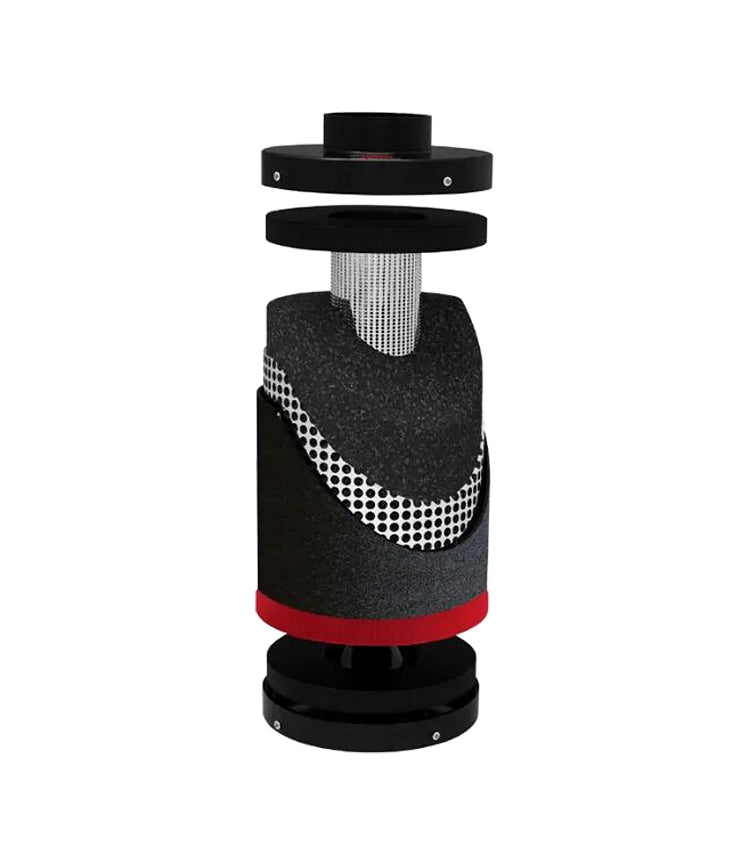

The filter includes 30mm anti-air bypass foam for leak-free operation, a 3mm Dacron pre-filter to trap particulates and protect the carbon bed, and steel top and bottom collars with 55% open-area mesh for long-lasting structural integrity and corrosion resistance.
If you’re running medium to large fan systems and looking for reliable, high-capacity filtration, the 200mm x 500mm model offers outstanding efficiency and performance.
• High-Capacity Airflow: Rated for 1230m³/h, ideal for larger grow rooms and tents.
• 50mm Virgin Carbon Bed: Deep-packed to extend filter life and maintain high odour-trapping capability.
• Superior Absorption Ratings: Iodine value of 960mg/g and 25% butane adsorption for advanced VOC removal.
• Anti-Air Bypass Foam: 30mm foam ring prevents air leakage for maximum filtering efficiency.
• Dacron Pre-Filter: 3mm dust-trapping layer reduces particulate buildup and protects carbon bed.
• Built to Last: Steel collars and 55% open-area mesh for robust performance in demanding grow conditions.
Specifications
Max Airflow: 1230m³/h (724 CFM)
Weight: 11.2Kg
Carbon Bed: 50mm thickness
Iodine Rating: 960mg/g
Butane Rating: 25%
Foam Seal: 30mm Anti Air Bypass
Mesh Open Area: 55% Steel Mesh
Pre-Filter: 3mm Dacron
Collars: Steel Top & Bottom
