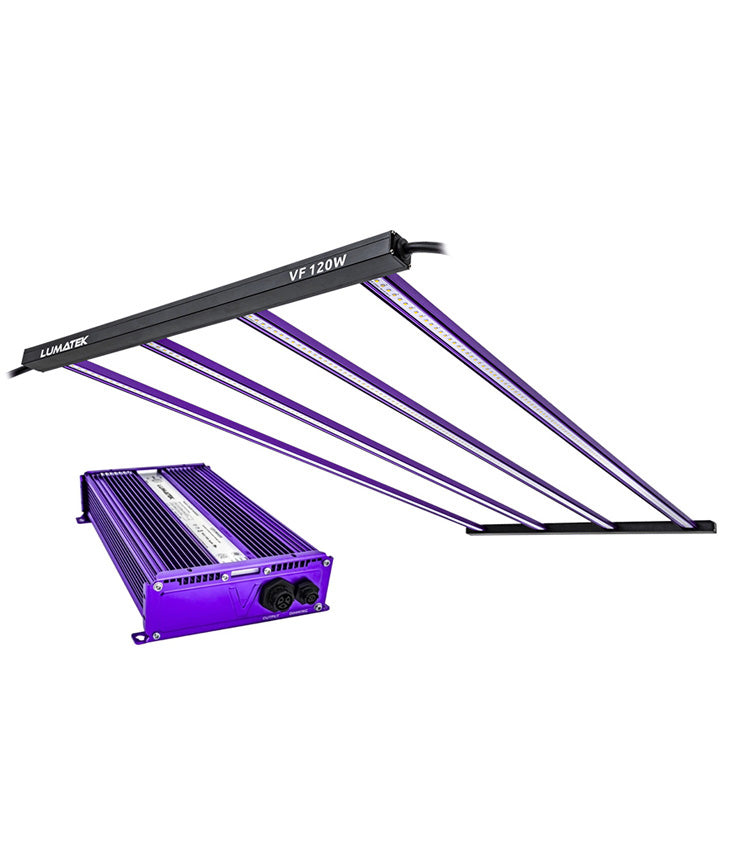

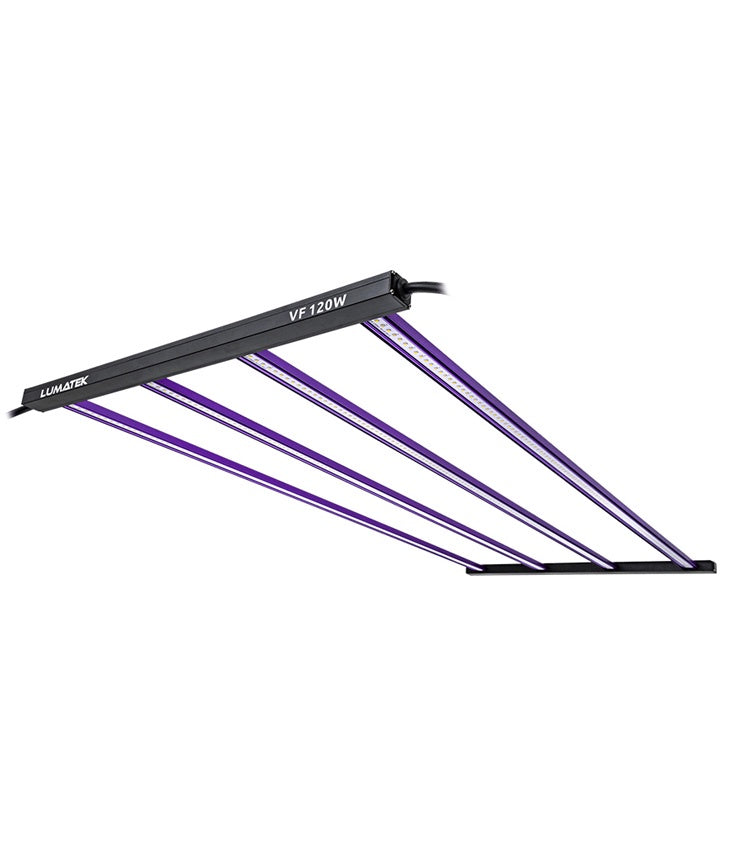

The VF120W comprises of four 30W LED bars with 4000K White and 3000K Warm White diodes.
It has a total PPF output of 308 μmol/s and a 2.4 μmol/J Efficacy.

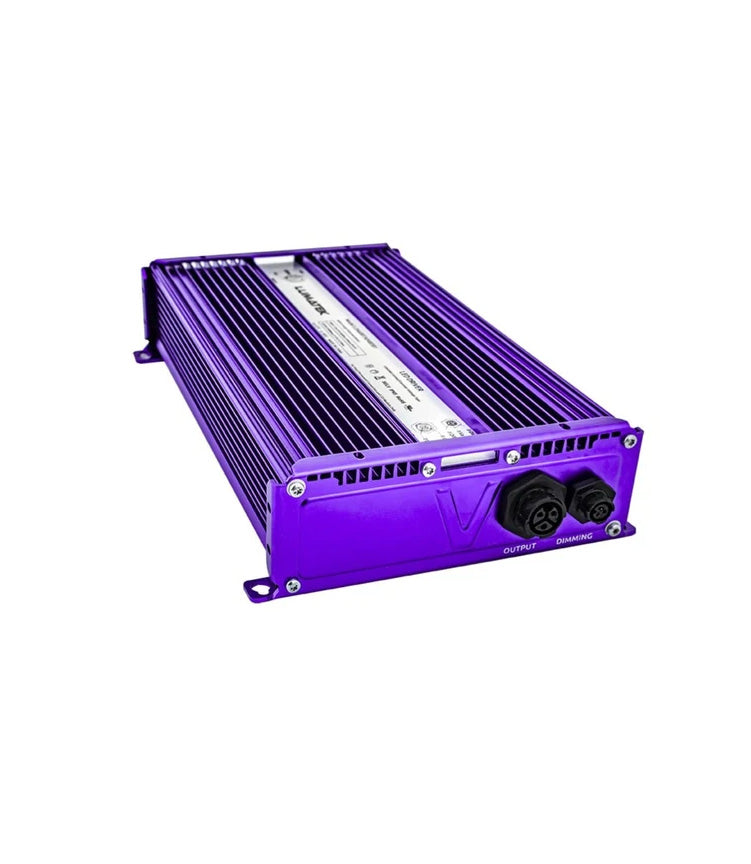

The fixture requires a 650 Watt Driver (sold separately) which can run up to 5 VF120W fixtures.
This fixture can be dimmed with a 0-10V Light Dimmer (sold separately) or externally controlled with a Digital Control Panel.
Daisy-chain driver connectivity is possible if you would like to add more units to the system so all fixtures can be dimmed with a single dimmer.
KEY FEATURES
• IDEAL SPECTRUM AND LIGHT INTENSITY FOR LOW PPFD TARGET PLANTS
• EFFICACY OF 2.4 µmol/J
• PPF OF 308 µmol/s
• INCLUDES FOUR 30W LED BARS ATTACHED TO THE FRAME
• EXTERNAL CONTROL WITH LUMATEK CONTROL PANEL PLUS 2.0 OR UNIVERSAL CONTROLLERS 0-10 V
• FULLY DIMMABLE AN IN-SERIES LINK OPTION
• HIGH HEAT DISSIPATION
• SHORTEN PLANT GROWTH CYCLE
• POWERED BY A 650 W DRIVER SOLD SEPARATELY, THAT CAN RUN UP TO 5 VF 120W FIXTURES
• USER FRIENDLY PLUG & PLAY ASSEMBLING
• IP65 WATER & DUSTPROOF RATED
• 3 YEAR WARRANTY
SPECIFICATIONS
• PRODUCT CODE: LUMLED015
• LIGHT DISTRIBUTION 120° (Beam Angle)
• INPUT VOLTAGE 220-240 V AC, 50-60 Hz
• INPUT POWER 130 W (0.6 A @230 V AC)
• EFFICACY 2.4 µmol/J
• PPF 308 µmol/s
• DIMMING OFF-25-50-75-100% with Knob on the main 650 W driver (Sold Separately)
• EXTERNAL CONTROL With Lumatek or any Universal Controllers 0-10 V
• DAISY CHAIN CAPABILITY Yes
• WEIGHT 2.1 Kg
• DIMENSIONS 1207 x 521 x 21 mm
• SPECTRUM Spectrum G
• THERMAL MANAGEMENT Passive
• LIFETIME L90 > 60000 hrs
• WARRANTY 3 Years
• IP RATING IP65
• CERTIFICATIONS CE, EMC, LVD
