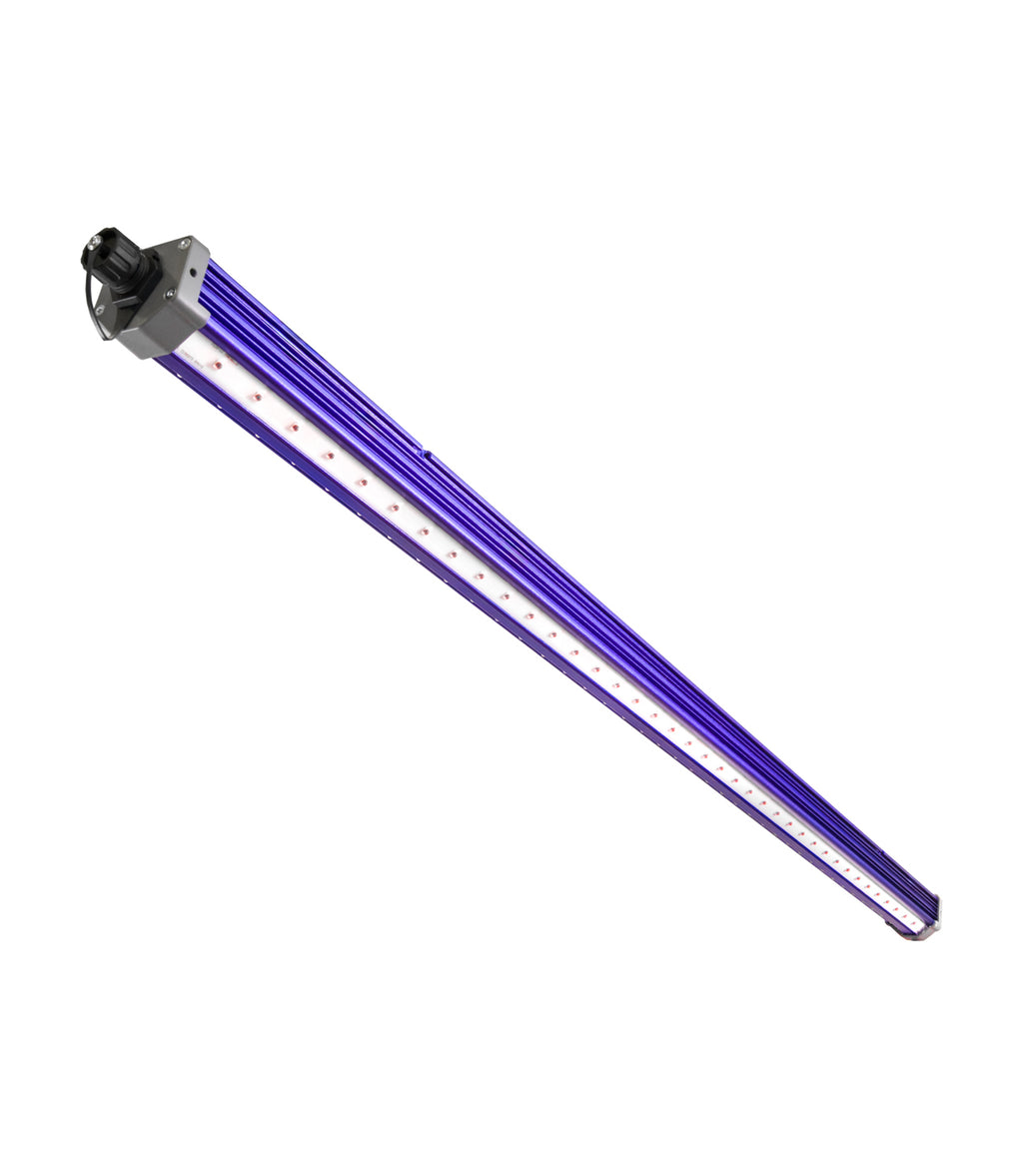

Lumatek Far-Red LED Bar 50W



The LUMATEK 50W FAR-RED LED BAR is a supplemental adding to your crop that has been specifically created to extend the ZEUS LED [400-700] nm Full-Spectrum range to [400-750] nm.

Designed to fit directly on the popular LUMATEK ZEUS LED fixtures frames, the integration of the very valuable FAR-RED photons [701-750] nm harnesses the principles of the EMERSON Enhancement effect, allowing growers to promote stem elongation and leaf expansion during the vegetative and the early days of flowering stages enabling to fill in the grow area. Also, taking advantage of their high efficacy, they can be used at the end of the life cycle to improve the overall photosynthetic efficiency.



With its peak at 730 nm and an output of 13 μmol/s [600-700] nm and 140 μmol/s [701-800] nm, the LUMATEK 50W FAR-RED is a supplemental LED bar tool, to help growers enhance PSII photochemical efficiency and photosynthetic rate when added to the provided Full-Spectrum by the ZEUS range.



This unit has an independent power source and can also be connected in series with daisy-chain link cables. To ensure unit performance, this LED bar has a single input and output socket for the Power Cable or Daisy Chain link Cable, depending on the use of that bar. For this reason, the Power (4 m) and Daisy Chain (1.5 m) cables are sold separately.

The LUMATEK 50W FAR-RED LED BAR was designed to fit directly into the ZEUS fixtures and when FAR-RED photons are mixed with the produced Full-Spectrum from the ZEUS range, a 10-20% ratio is secured.



• ZEUS 465W PRO 2.9 | 1.2 x 1.2 m footprint

• ZEUS 600W PRO 3.1 | 1.5 x 1.5 m footprint

• ZEUS 1000W XTREME CO2 | 1.5 x 1.5 m footprint w/ CO2 Supplement

• ZEUS 1000W PRO | 1.5 x 2.0 m footprint

Always mix the supplemental FAR-RED radiation with the previously mentioned LUMATEK ZEUS Full-Spectrum LED Range.



For a good FAR-RED radiation spread, ensure to install the recommended minimum units, and follow the distance to canopy referred on the Grow Light Strategies table.



FAR-RED can also damage plants. If you notice plant damage, we recommend increasing the distance between fixture and canopy or decrease the FAR-RED radiation delivered by reducing the photoperiodic time.



There is no specific defined photoperiodic time as it will depend on the grower plant morphology preferences.



- Promotes stem elongation and leaf expansion

- Enhance density of your grow area
- Improve the overall photosynthetic efficiency
- Attachable to all LUMATEK ZEUS Full-Spectrum LED range
- Top efficacy FAR-RED diodes
- Plug and Play
- Internal LED Driver
- Daisy chain connectivity (up to 18 pcs.)
- Passive Cooling
- IP65



Items Included:
1 x 50W FAR-RED LED BAR
2 X METAL HANGING HOOKS

1 x Light Bar Power Cable

1 x Light Bar Daisy Chain Cable



PPF (400 – 750) nm: 155 µmol/s
Efficacy (400 – 750) nm: 3.1 µmol /J
Input Voltage: 220-240 V AC 50-60 Hz
Driver: 50 W, 220-240 V AC 50-60 Hz
Input power: 50 W (+/- 5%) @230 V AC
Waterproof/Dustproof: IP65
Life Span: L90 > 45000 Hrs
Light Distribution: 140°
Light Source: FAR-RED Diodes
Dimensions: 1000 X 48 X 42 mm
Weight: 1.2 Kg
Thermal Management: Passive Heat Sink
Power Factor: > 0.90
Working Temperature: -10 ° - ±40 °C
Working Humidity: 20% - 80% Non-condensing
Dimmable: No
Daisy-Chain Capability: Yes (Max. 18 PCS)





Benefits include energy savings; Lumatek LED solutions demonstrate the potential to save 40% on electricity and studies indicate that LED-lit canopies can generate more yield per kWh.



Plant and crop performance; initial studies indicate growers using LED lighting may experience yield increases and changes in cannabinoid and terpene profiles, leading to more consistent medicinal product profiles from harvest to harvest.



Flexible light intensity; Lumatek LEDs can be dimmed to adjust PPF level to suit crop and growth stage without changing spectral power distribution or losing efficiency.



Less maintenance; Lumatek LEDs are rated for 60,000 hours use supported by a market leading 5 Year warranty.



Reduced HVAC; Lumatek LEDs are highly efficient and a less wattage consumption means less heat released into the space, allowing for potentially lower HVAC loads and operating expense.



Safety; Lumatek LED drivers are intelligent and feature full circuit protection including over/under voltage, short circuit and over temperature protection. Lumatek Zeus LED drivers also feature auto-power increase/decrease to match the amount of light bars connected to fixture. All Lumatek LED fixtures are CE certified LVD and EMC compliant.
