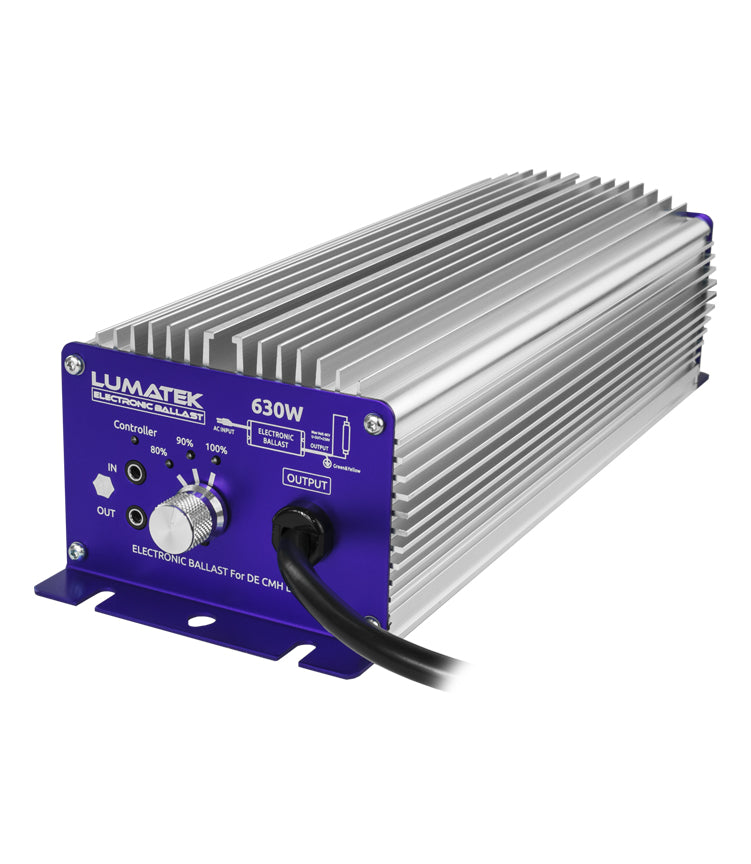

Lumatek 630w CMH Controllable Ballast

Sale price$395.00


This reliable digital ballast has been successfully used in cultivation facilities around the word and uses high frequency technology to efficiently fire and operate 630W Double-Ended (DE) Ceramic Metal Halide (also known as CMH/CDM/LEC) lamps.
CMH technology creates high energy PAR/PPF levels with low heat and full spectrum light which is closer to sunlight and produces healthier plant growth and larger yield. With a CRI (Colour Rendering Index) of >90%, CMH is perfect for growing high quality produce and essential oil extraction.
This ballast is for use with Lumatek 630W DE CMH lamp (4200K Daylight and 3100K Agro available).
For safety this ballast uses full circuit protection including open/short circuit, over temperature, over/low voltage, end of lamp life/rectification and EMI suppression.
The new addition of Control capability allows you to easily monitor and regulate your grow room environment (Lighting timming, sunrise/sunset, digital 1% dimming, etc). By simply connecting the Lumatek Digital Panel (sold separately) into the TRS “Link” port on your controllable ballast.
More Light – Less Heat – Full Spectrum – More Yield
Voltage 240V 50/60Hz
Input Current Max (A) 3.2A
Input power 668W
Output power 630W
Power factor >0.97
Efficiency 95%
Voltage range 185 to 275V
THD <10%
Dimming 80% - 90% - 100%
CF <1.7
Operating frequency high frequency
Environment temperature for full load operation 40℃
Enclosure temperature rise (Δt) ) 30℃
Ballast IP rated IP20
Humidity 90%
Dimensions 320 x 114 x 81mm
Weight 3.8 Kg
Electronic ballast for 630W DE CMH lamps
No audible noise, no flicker
Full circuit protection; open/short, over temperature, over/low voltage, end of lamp life/rectification
EMI suppression certified
