Lumatek 315W CMH Controllable Ballast


Price:
Sale price$149.00

Description

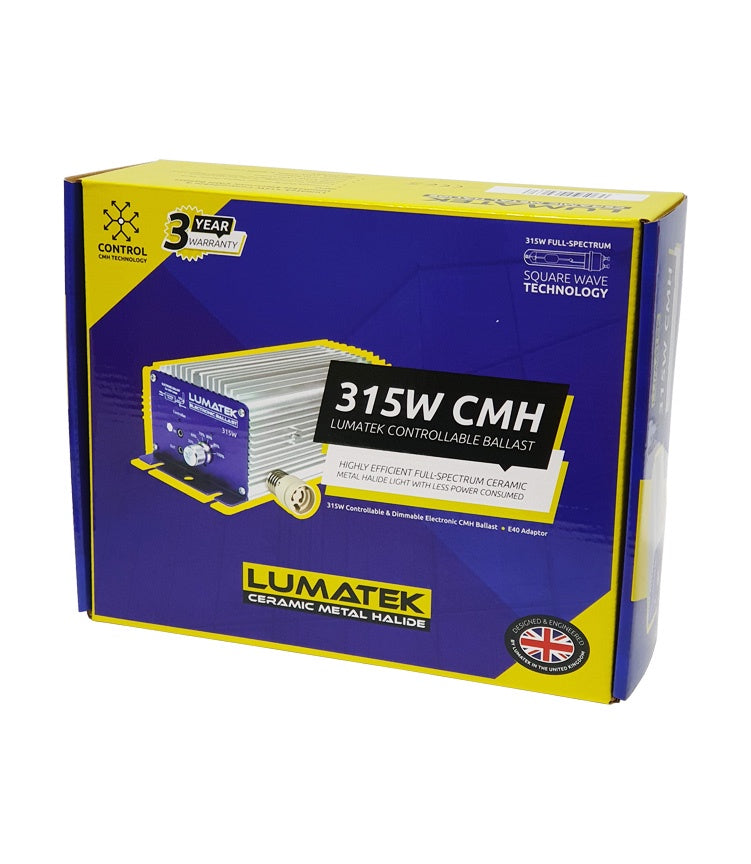

LUMATEK 315W CMH CONTROLLABLE BALLAST + E40 Adaptor

Lumatek developed this reliable intelligent digital ballast that has been successfully used in cultivation facilities around the word.

Using square wave technology to efficiently fire and operate 315W Ceramic Metal Halide (also known as CMH/CDM/LEC) lamps this ballast offers a full-spectrum output with less power consumed, lower light temperature production, more umol (PAR) light and more UV-A & UV-B than traditional HID/HPS/MH fixtures.

CMH technology creates high energy PAR/PPF levels with low heat and full spectrum light which is closer to sunlight and produces healthier plant growth and larger yield.

With a CRI (Colour Rendering Index) of >90%, CMH is perfect for growing high quality produce and essential oil extraction.

The new addition of Control capability allows you to smartly monitor your room temperatures, light timing, automation, safety control and dimming. By simply connecting the Lumatek Digital Panel (sold separately) into the TRS “Link” port on your controllable ballast.



Controllable Banner Control Panel Plus

FULLY CONTROLLABLE WITH LUMATEK CONTROL PANEL PLUS 2.0 (HID+LED)



Key Features:
• High efficiency, energy-saving
• E40 Adaptor included
• Completely silent and maximum heat dissipation
• Dimming: 50% - 60% - 70% - 80% - 90% - 100%
• Soft start technology
• 3 years warranty
• EMI Supression Certified
• RF shielding
• LED status indicator
• Full protection
• Random start technology
• Automatic frequency adjustment
• Re-strike system
• Controllable option via remote Lumatek Digital Controller


Specifications:
• Output power 315W
• Input Voltage 220-240V 50/60Hz
• Input Current (Max) 1.40A
• Input Power 334W
• Power factor 0.98
• Efficiency 95%
• Voltage range 185 to 275V
• THD <10%
• Dimming 50%-60%-70%-80%-90%-100%
• Lamp CCF <1.6
• Operating frequency low frequency
• Environment temperature for full load operation 40℃
• Enclosure temperature rise (Δt) ) 30℃
• Ballast IP rated IP20
• Humidity 90%
• Dimensions 245 x 114 x 81mm
• Weight 2.5Kg

EMI suppression certified
Full circuit protection; open/short, over temperature, over/low voltage, end of lamp life/rectification
No audible noise, no flicker
