Description

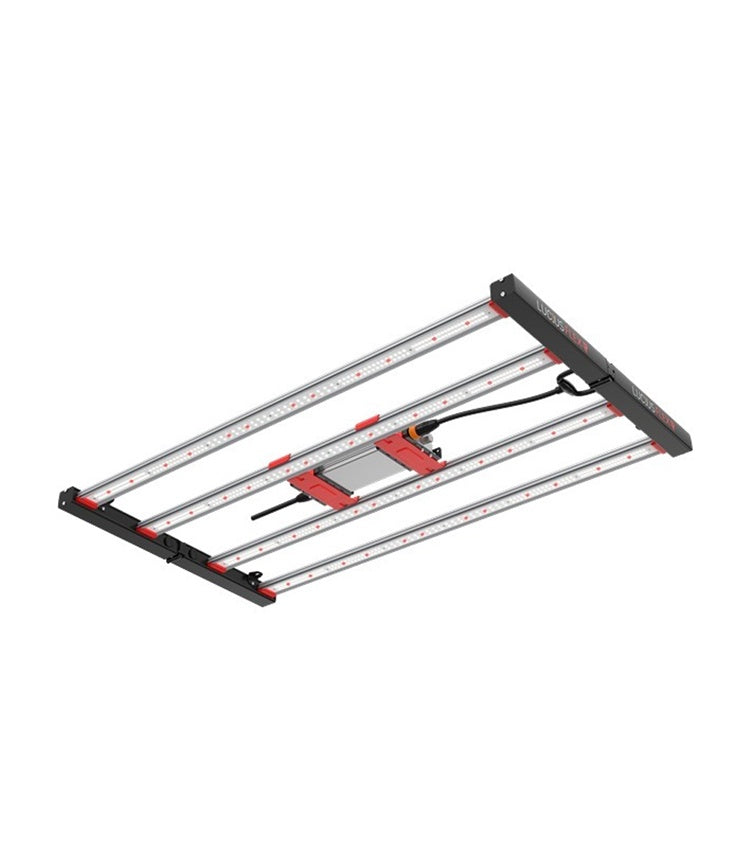

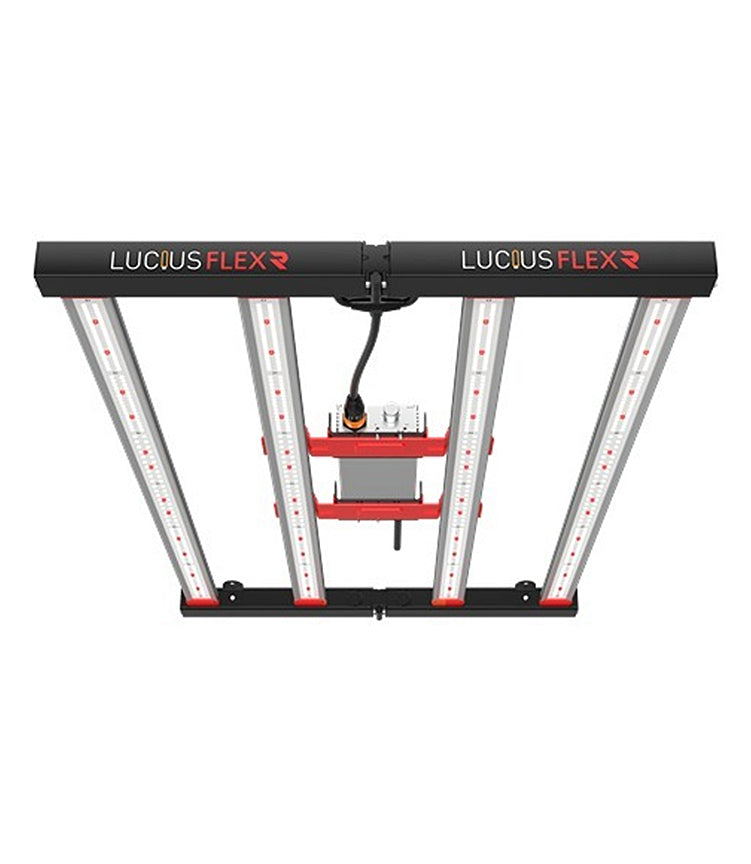

The LUCIUS FLEX R provides growers with the latest OSRAM LED technology in a robust design.
The R series technology adopts enhanced red diodes to achieve a PPF efficacy up to 3.50µmol/J (400W & 680W) and 3.65µmol/J (1000W).
Each bar is built to last with an innovative IP65 rated silicon that protects the LEDs without compromising light output. Delivering optimal growth, crop after crop.
The Lucius FLEX R comes pre-assembled tested and Certified by Western Electrical Australia, meeting National and International standards.
Features:
• High Efficacy up to 3.5 µmol/J
• IP65 Rated Foldable Design
• Low Ceiling Installation Full Cycle Spectrum Osram Diodes Controller Compatibility
Box Contents:
• LED Fixture
• Driver Mount (x2) 3.5mm Signal Cable 2m S-Hanger (x2)

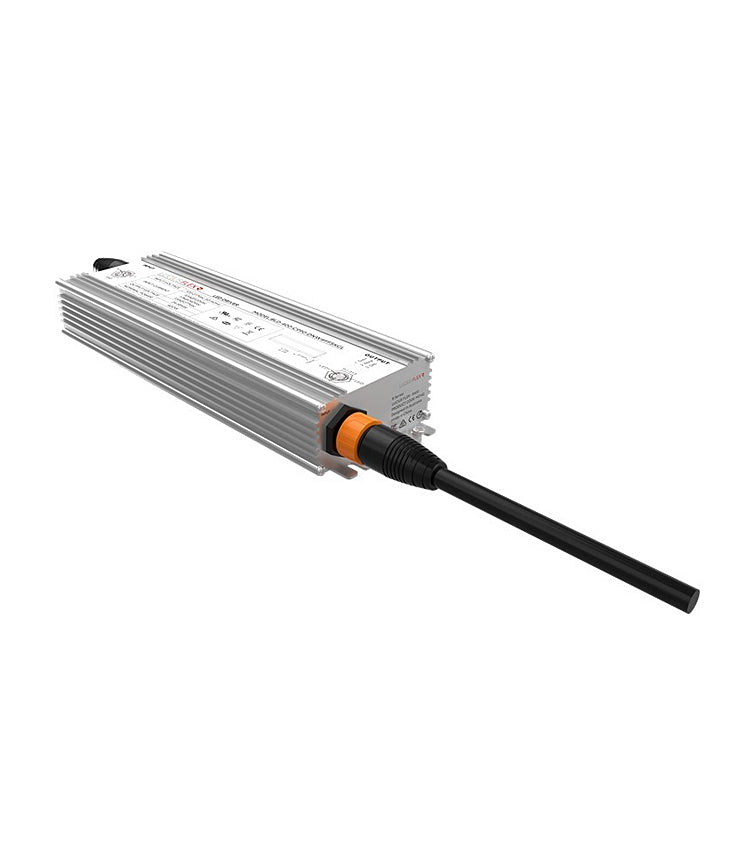

• LED Driver
• Input Power Cable 2m Rope Rachet (x2)
• M5 Eyebolt (x2)
• Output Cable
• Output Extension Cable 2m Lance Hanger (x2)
• FLEX R Manual
Product Specifications:
| Power | 400W |
| Voltage Range/Frequency | 100-277V ~ 50/60Hz |
| Current 120V | 3.5A |
| Current 208V | 1.98A |
| Current 220V | 1.86V |
| Current 230V | 1.78A |
| Current 240V | 1.71A |
| Current 277V | 1.50A |
| PPF Efficacy | 3.5µmol/J |
| Max PPF | 1400µmol/s |
| Colour Temp | 4000K |
| CRI | 60% |
| PF | >0.95 |
| THD | <10% |
| Beam Angle | 120° |
| Control Knob | OFF/25/50/75/100%/RC |
| External Control | Compatible with 0-10V LED Controllers |
| Signal Cable | 3.5mm TRS Male Jumper Cable |
| Thermal Management | Passive |
| BTU/h | 1365 |
| Protection | Over-voltage, Under-voltage, Short Circuit, Over-temperature |
| Dimensions | 1170 x 690 x 62mm 46.06 x 27.16 x 2.44" |
| Weight | 4.74±0.3Kg 10.38±0.66Lbs |
| Working Temp |
0°C to +40°C (32°F to +104°F) (95% RH)
-40°C to +70°C (-40°F to +158°F) (85% RH)
|
| IP Rating | IP65 |
| Warranty | 3 Years |
