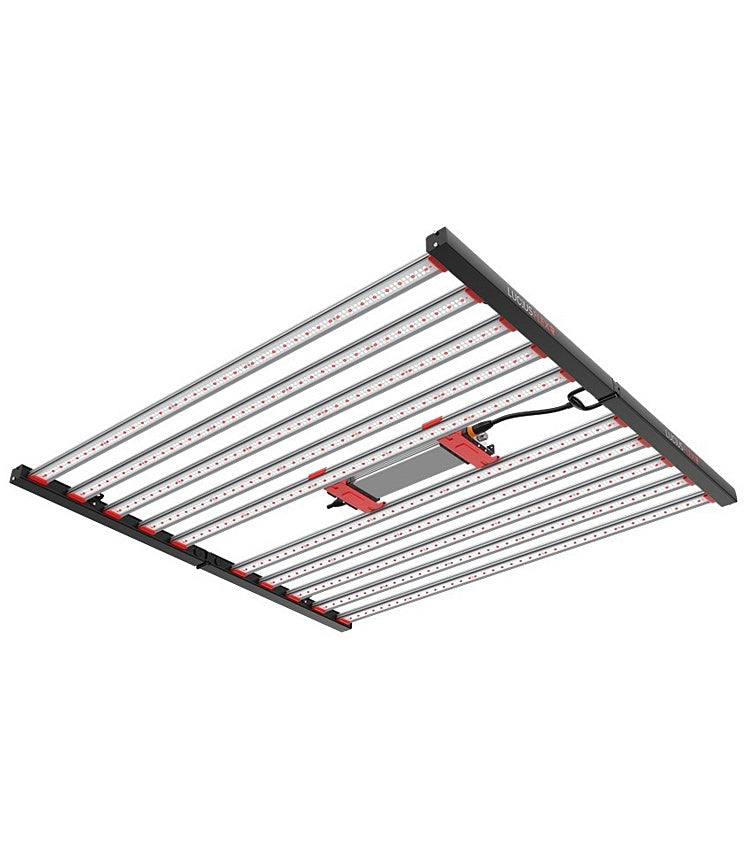

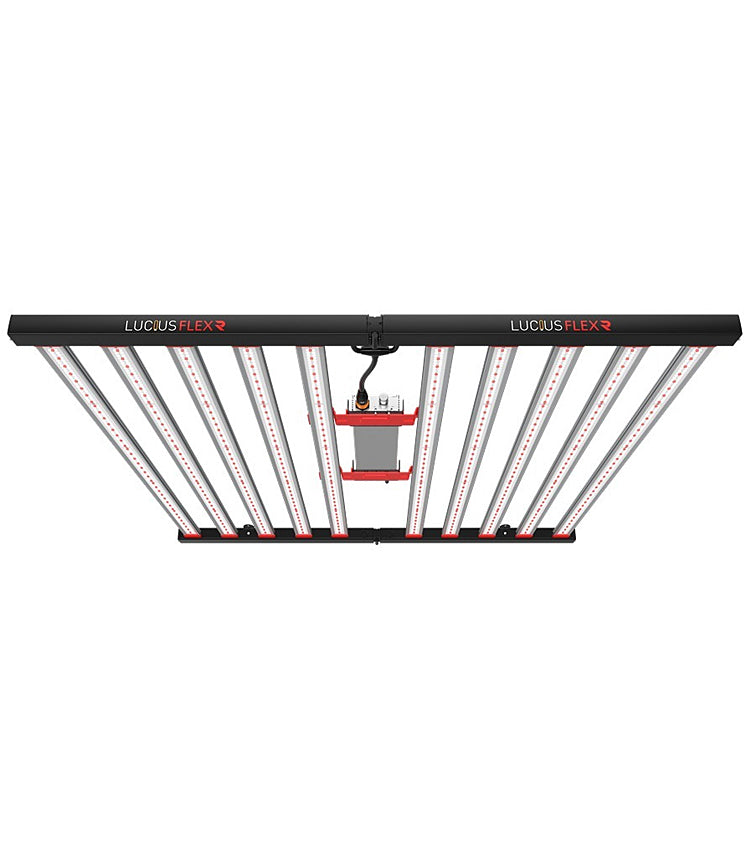

The LUCIUS FLEX R provides growers with the latest OSRAM LED technology in a robust design.
The R series technology adopts enhanced red diodes to achieve a PPF efficacy up to 3.50umol/J (400W & 680W) and 3.65umol/J (1000W).
Each bar is built to last with an innovative IP65 rated silicon that protects the LEDs without compromising light output. Delivering optimal growth, crop after crop.
The Lucius FLEX R comes pre-assembled, tested, and Certified by Western Electrical Australia, meeting National and International standards.
Features:
• High Efficacy up to 3.5 mol/J
• IP65 Rated Foldable Design
• Low Ceiling Installation Full Cycle Spectrum Osram Diodes Controller Compatibility
Box Contents:
• LED Fixture
• Driver Mount (x2) 3.5mm Signal Cable 2m S-Hanger (x2)

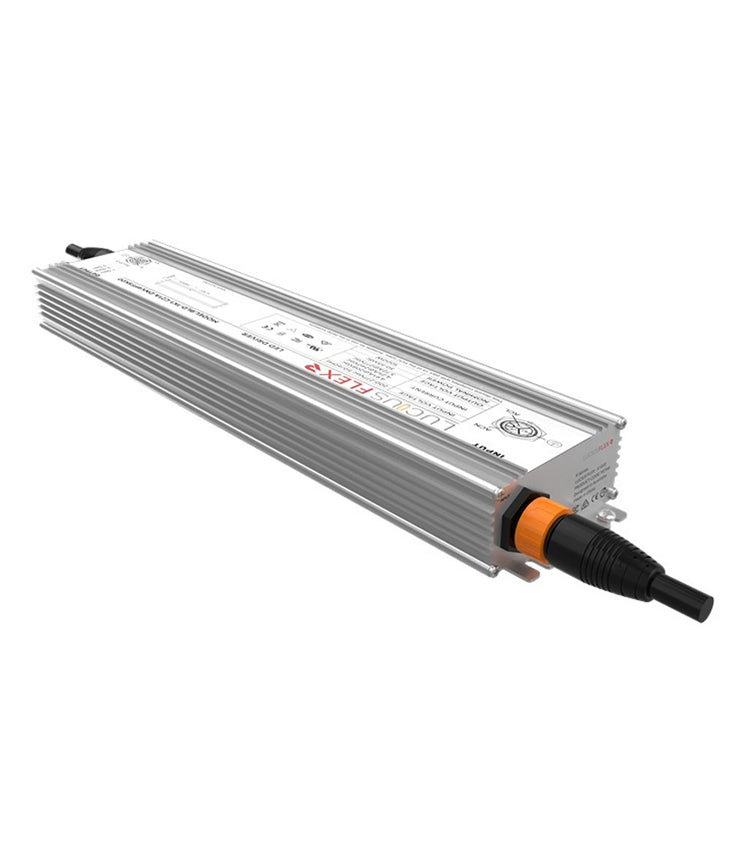

• LED Driver
• Input Power Cable 2m Rope Rachet (x2)
• M5 Eyebolt (x2)
• Output Cable
• Output Extension Cable 2m Lance Hanger (x2)
• FLEX R Manual
Product Specifications:
| Power |
1000W |
| Voltage Range/Frequency |
100-277V ~ 50/60Hz |
| Current 120V |
- |
| Current 208V |
4.91A |
| Current 220V |
4.63V |
| Current 230V |
4.43A |
| Current 240V |
4.25A |
| Current 277V |
3.72A |
| PPF Efficacy |
3.65µmol/J |
| Max PPF |
3650µmol/s |
| Colour Temp |
4000K |
| CRI |
60% |
| PF |
>0.95 |
| THD |
<10% |
| Beam Angle |
120° |
| Control Knob |
OFF/25/50/75/100%/RC |
| External Control |
Compatible with 0-10V LED Controllers |
| Signal Cable |
3.5mm TRS Male Jumper Cable |
| Thermal Management |
Passive |
| BTU/h |
3413 |
| Protection |
Over-voltage, Under-voltage, Short Circuit, Over-temperature |
| Dimensions |
1170 x 1115 x 79mm 46.06 x 43.90 x 3.11" |
| Weight |
10.4±0.3Kg 22.9±0.66Lbs |
| Working Temp |
0°C to +40°C (32°F to +104°F) (95% RH)
-40°C to +70°C (-40°F to +158°F) (85% RH)
|
| IP Rating |
IP65 |
| Warranty |
3 Years |
