Specifications
| Power |
620W |
| Voltage Range / Frequency |
100-277V ~ 50/60Hz |
| Current |
Amp @ 120V |
5.45A |
| Amp @ 208V |
3.0A |
| Amp @ 220V |
2.85A |
| Amp @ 230V |
2.75A |
| Amp @ 240V |
2.65A |
| Amp @ 277V |
2.3a |
| PPF Efficacy |
2.5µmol/J |
| Max PPF |
1550µmol/s |
| CCT |
4000K |
| CRI |
85% |
| PF |
>0.95 |
| THD |
<10% |
| Beam Angle |
120° |

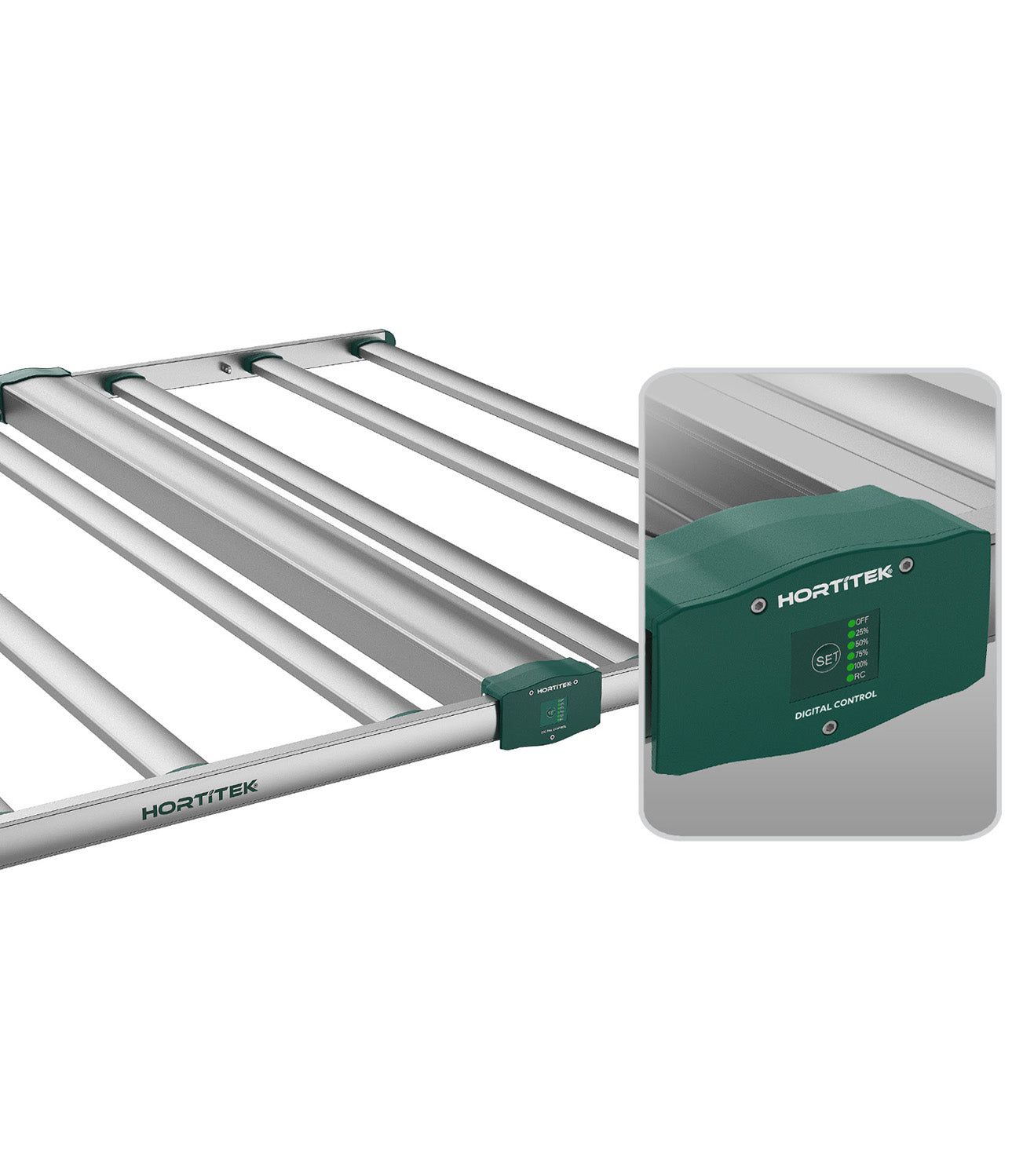

| Control Panel |
OFF / 25% / 50% / 75% / 100% / RC |
| External Control |
Compatible with 0-10V LED Controllers |
| Signal Cable |
3.5mm TRS Male Jumper Cable |
| Thermal Management |
Passive |
| BTU/h |
2116 |
| Protection |
Over-Voltage, Open Circuit, Short Circuit |
| Dimensions |
1175mm x 1172mm x 67mm |
| Weight |
11kg±0.3kg | 24.2lbs±0.66lbs |
| Working Temperature |
0°C to 40°C / 32°F to 104°F (95% RH) |
| Storage Temperature |
-40°C to 70°C / -40°F to 158°F (85% RH) |
| IP Rating |
IP65 |
| Warranty |
3 Years |
Coverage Area
| Application |
Vegetative |
Flower |
| ¹Hanging Height (cm) |
70 |
30 |
20 |
| Max PPFD (µmol/s/m²) |
500 |
850 |
1000 |
| Coverage Dimensions (m) |
1.88 x 2.02 |
1.30 x 1.50 |
1.25 x 1.45 |
| ²Coverage Area (m²) |
3.80 |
1.95 |
1.82 |
¹Hanging Height refers to the distance between the plant canopy and the LED.
²Coverage Area refers to the region that the plants receive at minimum 200PPFD for flowering and 100PPFD for vegetative.
