Description

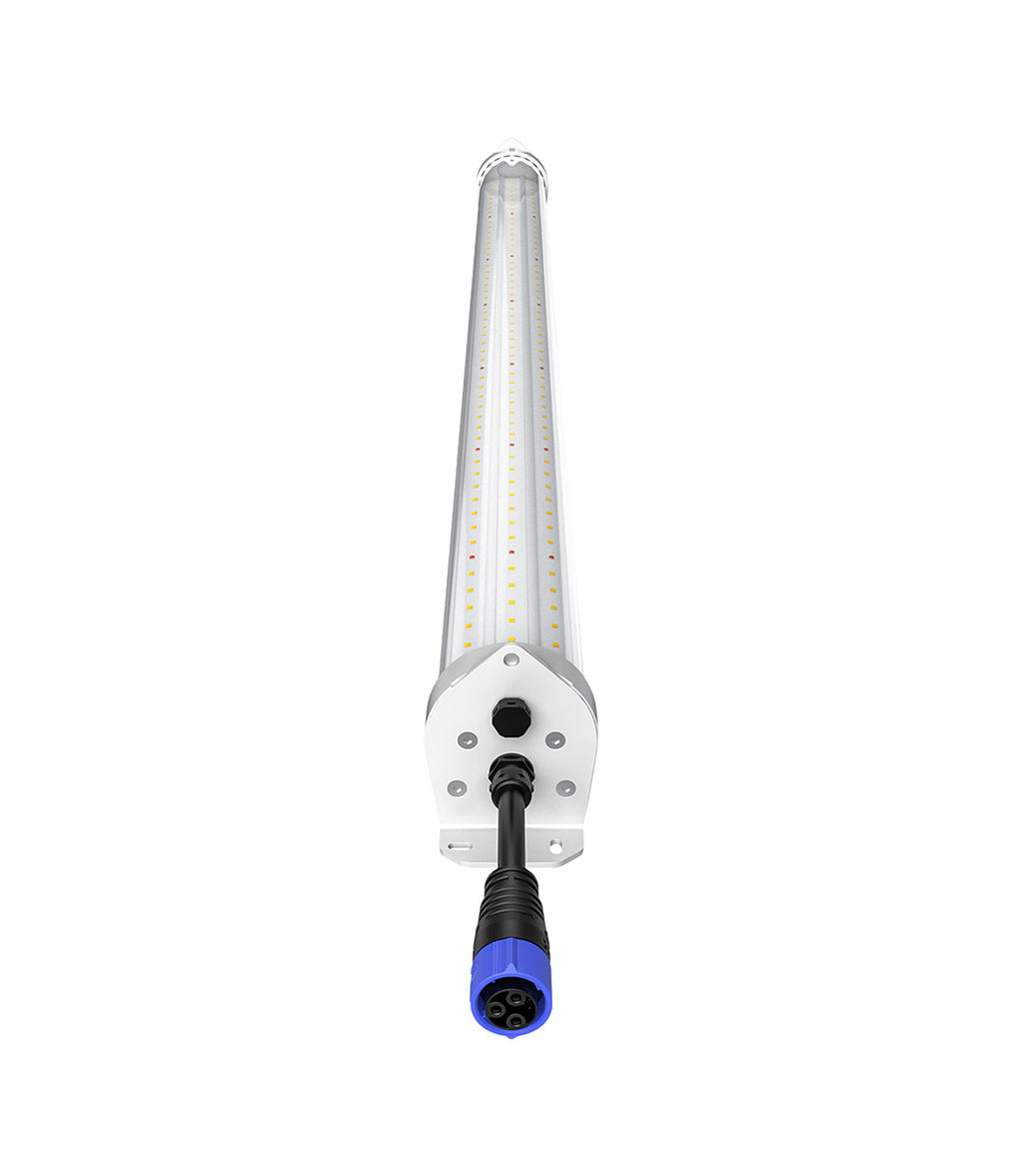

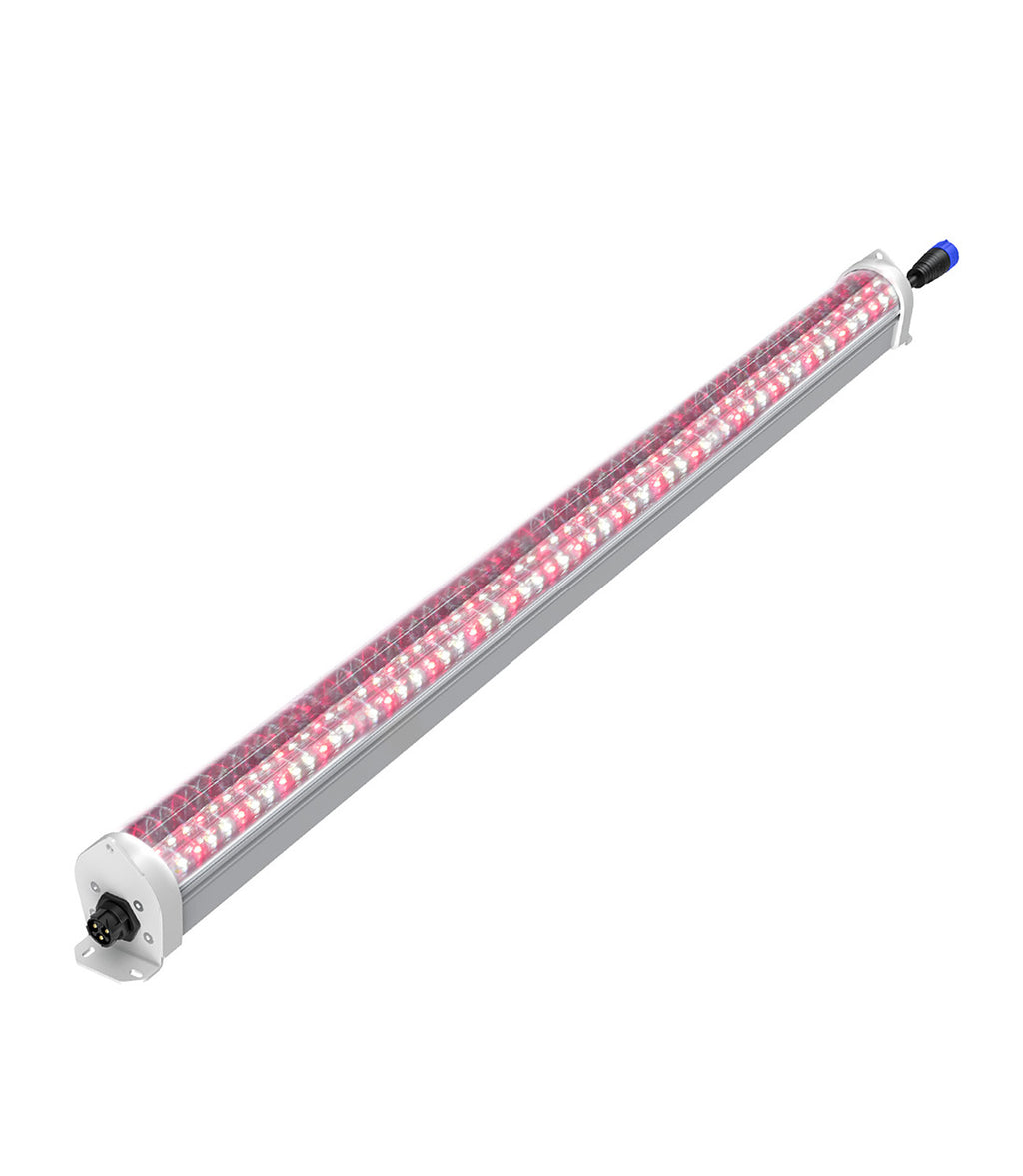

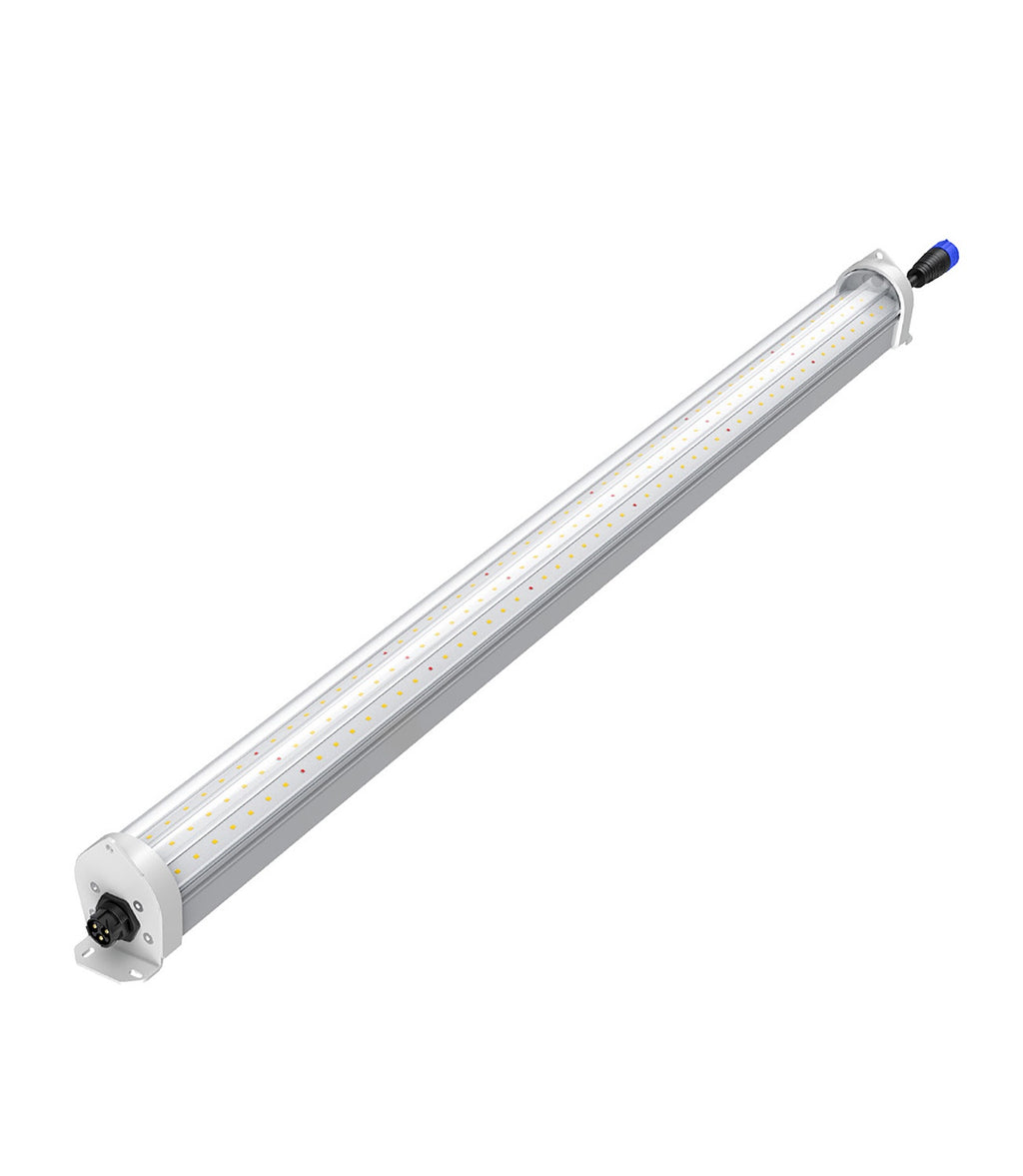

The HORTITEK ECO-R UNDERLIGHT 140W is designed to deliver targeted supplemental lighting beneath the canopy for better light penetration and balanced growth. With a full-spectrum output and a high efficacy of 2.6μmol/J, it enhances yield potential by reaching lower plant levels often missed by overhead lights. The compact, lightweight build allows for easy integration into any grow setup, while the IP65 rating ensures durability in tough environments. Simple to install and energy-efficient, the ECO-R UNDERLIGHT is a powerful addition to any serious grower’s lighting system
FEATURES
PRODUCT SPECIFICATIONS
|
Product Code
|
M4850
|
M4851
|
||||
|
Spectra
|
R
|
W
|
||||
|
Power
|
140W
|
|||||
|
Voltage Range / Frequency
|
120-277Vac ~ 50/60Hz
|
|||||
|
Voltage
|
120V
|
208V
|
220V
|
230V
|
240V
|
277V
|
|
Current
|
1.22A
|
0.71A
|
0.68A
|
0.65A
|
0.62A
|
0.56A
|
|
Max No. of Fixtures
Power & Signal Chaining
|
5 LEDs | 10 LEDs | 10 LEDs | 12 LEDs | 12 LEDs | 12 LEDs |
| Nominal PPF Efficacy | 2.90μmol/J | 2.85μmol/J | ||||
| Max PPF Efficacy | 3.3μmol/J @25% | 3.0μmol/J @25% | ||||
|
Max PPF
|
406μmol/s
|
399μmol/s
|
||||
|
CCT
|
3000K
|
5800K
|
||||
|
CRI
|
60%
|
82%
|
||||
|
PF
|
>0.98
|
|||||
|
THD
|
<10%
|
|||||
|
Beam Angle
|
150°
|
|||||
|
External Control
|
0-9V LED Control
|
|||||
|
Power and Signal Extension
|
1.5m or 5m Extension Cable (Sold Seperately)
|
|||||
|
Thermal Management
|
Passive
|
|||||
|
BTU/h
|
478
|
|||||
|
Dimensions
|
1192.2x77.6x97.4mm | 46.9x3.1x3.8”
|
|||||
|
Weight
|
3.05kg | 6.7lbs
|
|||||
|
Protection
|
Over-Voltage, Under-Voltage, Short Circuit, Over-Temperature
|
|||||
|
Working Temperature
|
0°C to 40°C / 32°F to +104°F (95% RH)
|
|||||
|
Storage Temperature
|
-40°C to +70°C / -40°F to +158°F (85% RH)
|
|||||
|
IP Rating
|
IP66
|
|||||
|
Warranty
|
2 Years
|
|||||
