Digi Lumen Side Bar Tent Mounting Bar


Price:
Sale price$37.50

Description

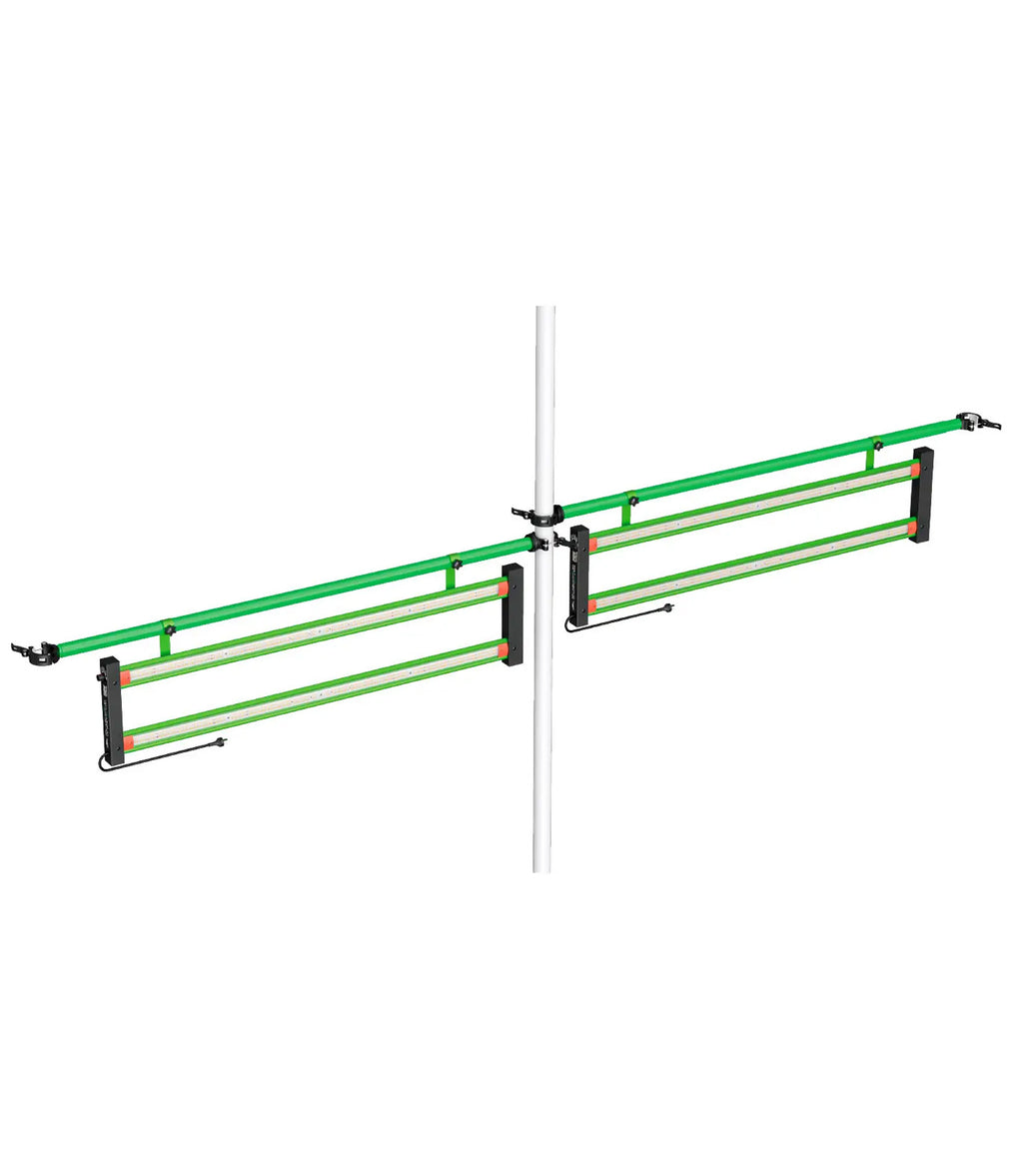

Adjustable Mounting Bar is suitable for grow tents with either 1.2 or 1.5 m pole spacings. Position the Adjustable Mounting Bar between the vertical tent poles at the desired height and tighten the end clamps. The Side Bar simply hook securely over the Adjustable Mounting Bar and secure via the lock screws.

A rubber clamp insert is provided to ensure the three most popular tent pole sizes (16, 19 & 25 mm) are compatible with the end clamps.


 Instructions for Tent Mounting
When mounting Side Bars into a grow tent we recommend using the optional Adjustable Mounting Bar. Adjustable Mounting Bars extend from 1150 mm to 1550 mm.

1) Fasten the hooks onto the LED bar using the provided lock screws. Space the hooks approximately 900 mm apart.

2) Clamp the adjustable mounting bar to the upright tent poles. Mounting bars may need to be offset (one above the other).

3) Hook the Side Bar Arrays over the adjustable mounting bars.

4) Tighten the lock screws on the hooks to your prefered light beam angle.
