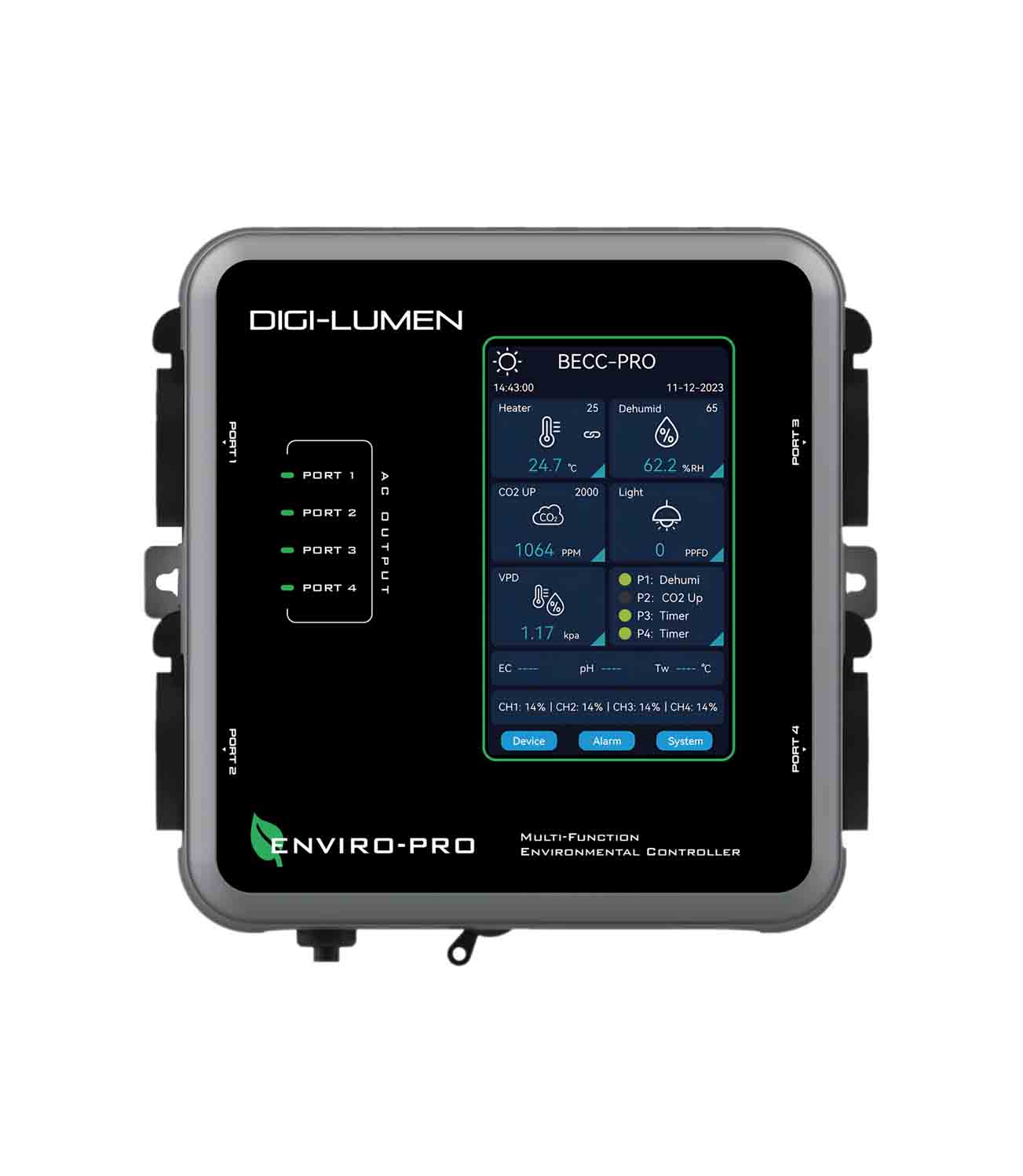

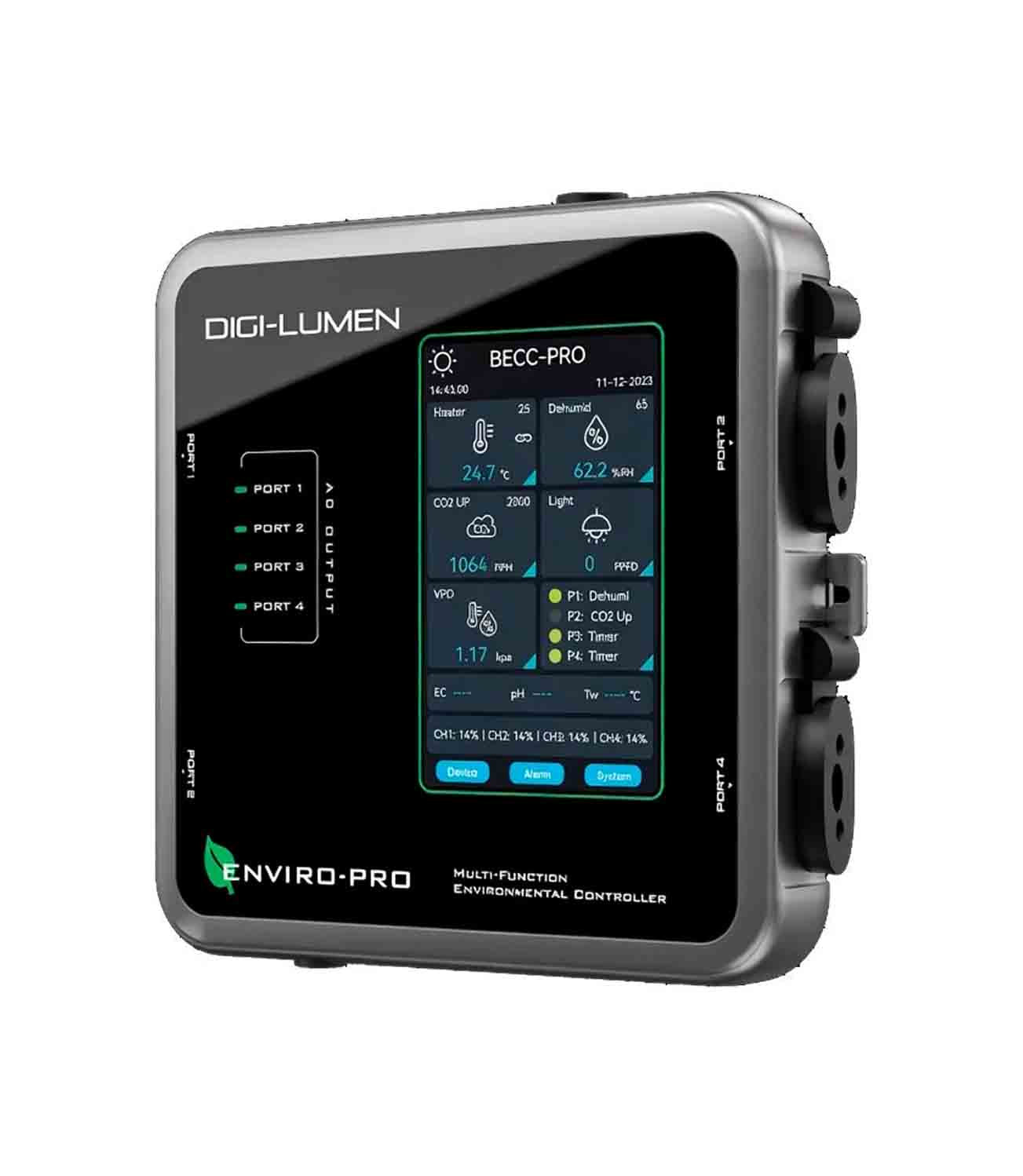

Digi Lumen Enviro Pro Controller

The Digi-Lumen Enviro-Pro is a powerful, all-in-one intelligent environmental controller designed for modern indoor cultivation. Whether you’re running a personal grow tent, container farm, or small-to-medium commercial facility, the Enviro-Pro delivers precise, automated management of temperature, humidity, CO₂, VPD, lighting, and nutrient solutions — all from a sleek 5-inch high-resolution touchscreen. Engineered for both beginners and experienced growers, it combines real-time monitoring, advanced automation, and reliable device control into one compact, professional-grade unit.

Comprehensive Real-Time Monitoring
Displays live readings for air temperature & humidity, CO₂ levels, VPD (Vapor Pressure Deficit), nutrient EC, pH, water temperature, and light intensity. Optional PAR sensor and ECPH module expand capabilities even further.

4-Channel 0-10V Dimming Control
Independently control up to four lighting zones with precise dimming. Choose from Manual, Auto Timer, or Auto Cycle modes, plus PAR-based automatic dimming when a PAR sensor is connected.

• Programmable heating, cooling, humidification, dehumidification, and CO₂ enrichment/depletion

• Day/Night scheduling with sunrise/sunset simulation

• Fuzzy Logic CO₂ control for ultra-stable PPM levels

• Smart lock functions (Cooling & Dehumidify Lock, CO₂ & Cooling Lock, CO₂ & Dehumidify Lock) to prevent waste and optimize performance

• Temperature protection for lights (automatic dimming or shutdown)

Intuitive Touchscreen Interface
125 mm (5") LCD display (800 × 480 resolution) with clear, easy-to-navigate menus for quick setup and real-time status at a glance.

Flexible Device Control
Assign any of the four ports to Timer, Heating, Cooling, Humidification, Dehumidification, CO₂ UP, or CO₂ DOWN functions. Supports smart sockets, exhaust fans, heaters, humidifiers, dehumidifiers, CO₂ regulators, and more.

Smart Alerts & Data Logging
Customizable alarms for temperature, humidity, CO₂, water temperature, and sensor/device offline status. View historical alarm data directly on the controller.

Network Ready & App Integration
Built-in Ethernet port with DHCP or manual IP configuration. QR code binding connects instantly to the Digi-Lumen mobile app for remote monitoring and control.

Easy Installation
Includes wall-mount hardware and U-bolt for grow tent frame mounting. IP20 rated for indoor use.



• Operating Voltage: AC 100–240 V, 50/60 Hz

• Max Input Current: 10 A

• Max Output Current: 8 A per port

• Light Control Output: 4 × DC 0–10 V (30 mA per channel)

• Sensor Port: RJ12 (RS485, 12 V / 0.5 A)

• Network Port: RJ45

• Display: 5" LCD, 800 × 480 resolution

• Operating Temperature: 0–50 °C

• Protection Level: IP20

• Digi-Lumen Enviro-Pro Controller

• 4-in-1 Sensor (BLS-4) with cable

• 5 m RJ12 Cable Splitter

• Mounting kit (wall screws + U-bolt for tent frames)



From hobbyist setups to professional operations, the Digi-Lumen Enviro-Pro gives you the precision, reliability, and peace of mind you need to maximize yields and minimize guesswork. Robust, future-proof, and incredibly easy to use — this is environmental control, elevated.

The 4-in-1 sensor on the DIGI-LUMEN Enviro-Pro Controller measures four key parameters: Temperature, Relative Humidity, CO₂ levels, and Light (via an integrated photocell).
It connects via a remote cable (typically 4.5 m) to the main controller unit, enabling real-time monitoring and automated control of your grow environment (e.g., CO₂ dosing, heating/cooling, humidification/dehumidification, and lighting timers).

• Temperature - Monitors and controls temp (typically 5–50°C range). Supports day/night settings and high/low alarms for safety.

• Humidity (RH) - Tracks relative humidity (usually 5–95% range, ±3% accuracy) to prevent mould, dryness, or other issues.

• CO₂ - Measures carbon dioxide concentration for precise dosing (e.g., with tanks/regulators or burners). Includes fuzzy logic mode for stable levels and stops dosing in the dark.

• Light (Photocell) - Detects light presence/intensity. This enables automatic day/night modes, so the controller can apply different setpoints (e.g., higher CO₂ or different temp/humidity during lights-on periods) and prevent CO₂ waste at night.



The DIGI-LUMEN Enviro-Pro Controller uses these readings to manage up to four 240V outlets (for CO₂ equipment, fans, heaters, lights, etc.) and has a 5-inch display for easy setup. It’s designed for grow tents, greenhouses, or small plant factories.
Other sensors (like pH/EC) are optional/add-on modules.
