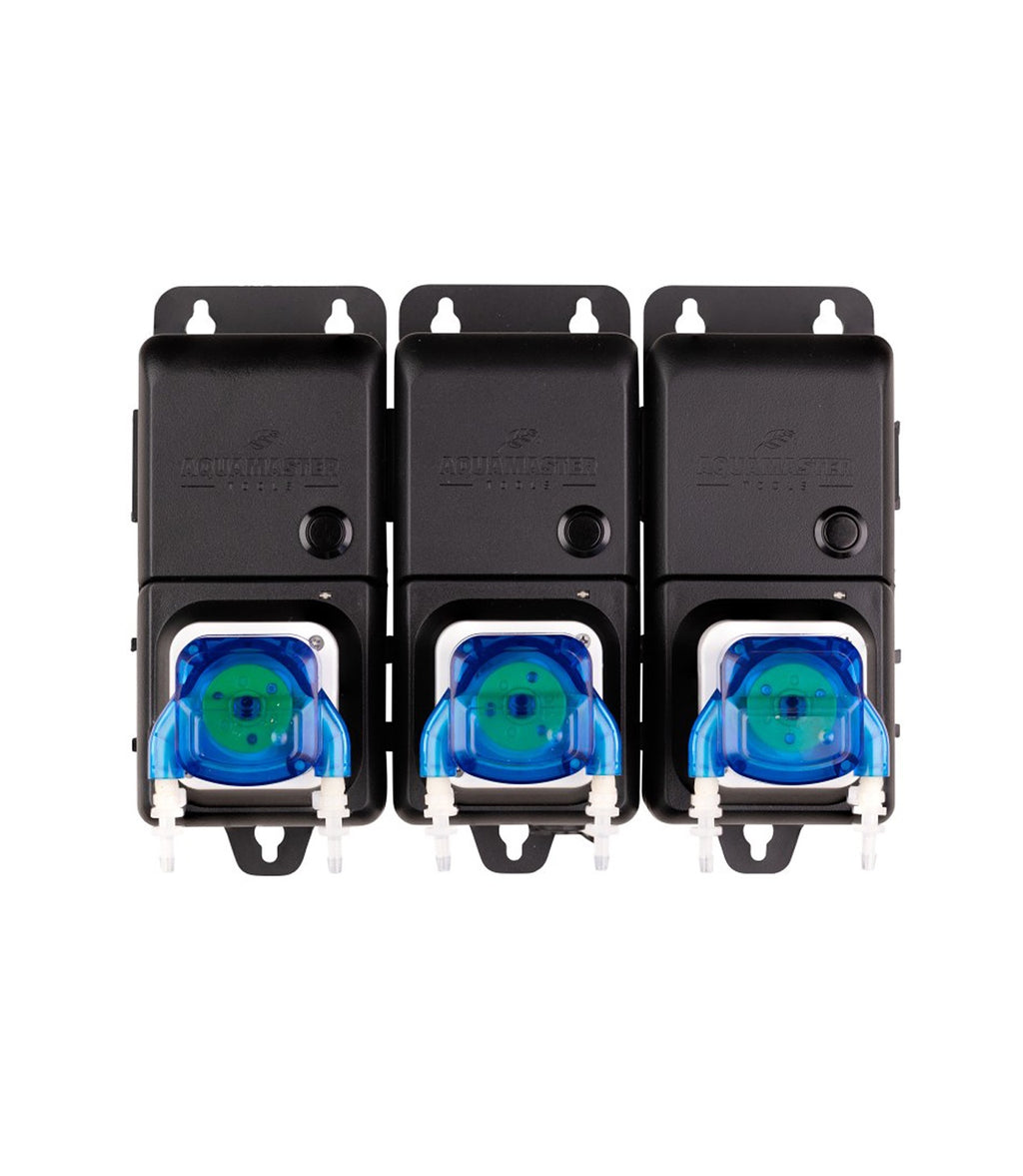

C30 pump unit 3x peristaltic pump set for nutrient dosing
The C30 is a dosing unit with three peristaltic pumps, designed for accurate nutrient dosing. It is only suitable for EC dosing and not for pH control. Each pump has a standard dosing rate of 1.5 ml per second.
Connection and Expansion Options
• The C30 connects directly to the controller via the left UTP port (bottom side).
• The right UTP port is used for expansion with a C10 (1 pump) or a C20 (2 pumps).
• Mechanical linking is done via the side slide rail, and electrical connection via the included 50 cm UTP cable.
Pump numbers in the controller menu:
• C30 only: Pump 1, 2, and 3
• C30 + C10: Pump 1 to 4
• C30 + C20: Pump 1 to 5
Maximum: 5 EC pumps + 1 pH pump per controller.
Manual Operation
Each pump has a manual priming button, ideal for filling or emptying the tubing during setup or maintenance.
What's in the Box
• 1× C30 dosing unit (3 pumps)
• 3× Tubing (3 meters each)
• 1× UTP cable (150 cm) for controller connection
• 1× UTP cable (50 cm) for expansion
• 1× International power adapter
Specifications
|
Individual flow rate
|
90 ml per 60 seconds (depending on the temp and viscosity of the liquid)
|
| Opperation temp |
5°C - 50°C (41°F - 122°F) |
| Noise level |
<60 DB |
| Power Supply |
AC85~260V, 50~60Hz, with standard UK/EU/ AU/US plugs |
| Power |
6 W |
| Rated voltage |
12V |
| Peristaltic tube lifetime |
1000 Hours |
| Motor lifetime |
800 Hours |
| Dimensions |
197 x 159 x 100 mm |
| Weight |
706 gram |
