Description

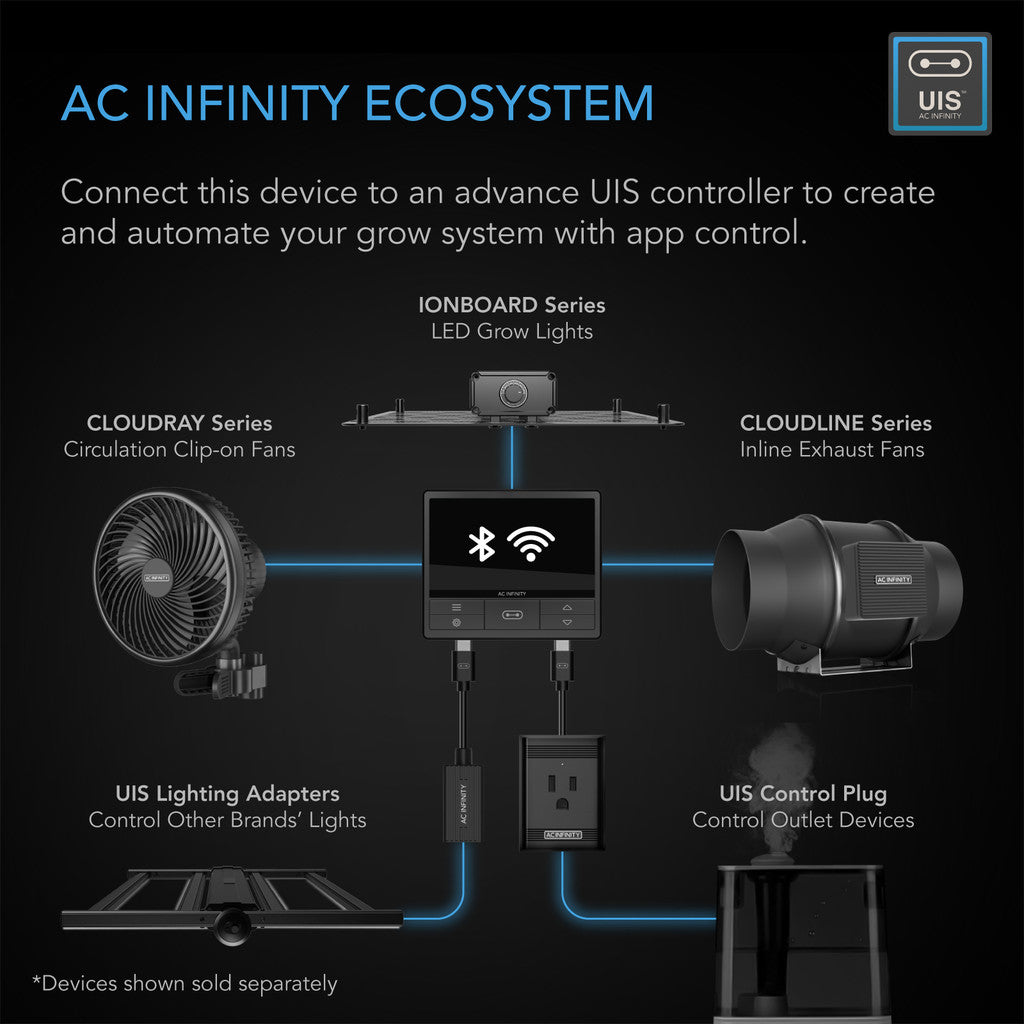

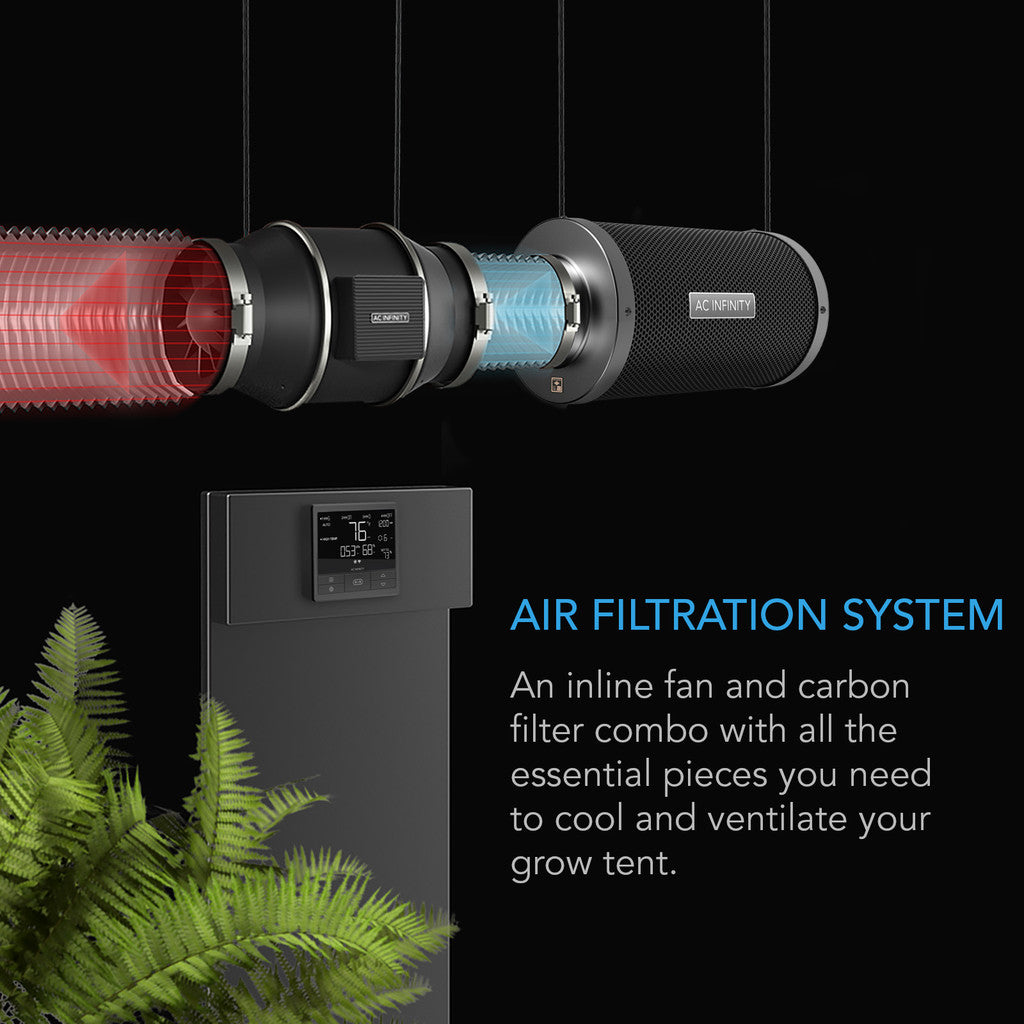

A grow tent air filtration system with all the necessary inline components you need to ventilate your grow space. By assembling these essential pieces, this package will help you quickly get your grow build started and eliminate the guesswork of purchasing them individually. This inline fan kit features the CLOUDLINE Series fan that is capable of delivering powerful yet quieter performance. Paired with a carbon filter using Australian virgin charcoal to block odors from seeping out of your grow tent. These two pieces are connected by a set of flexible ducting with four layers of protection to properly direct airflow away. Accessories include duct clamps, prefilter cloth, rope clip hangers, and hanging straps to complete the installation. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
• An air filtration kit with everything you need to cool, ventilate, and control odors in your grow space.
• Features the CLOUDLINE inline fan with a PWM-controlled EC motor for quiet and energy efficient ventilation.
• Smart controller sets climate triggers, schedules, and grow cycles. Access graphs and alerts via Bluetooth app.
• Australian carbon filter with flexible ducting traps odors while routing stale air away from your grow tent.
• Kit Duct Size: 6” | Fan Airflow: 402 CFM | Noise 32 dBA | Carbon Thickness: 38 mm | Ducting Length: 25 ft.
• 2 years warranty on all AC Infinity products.

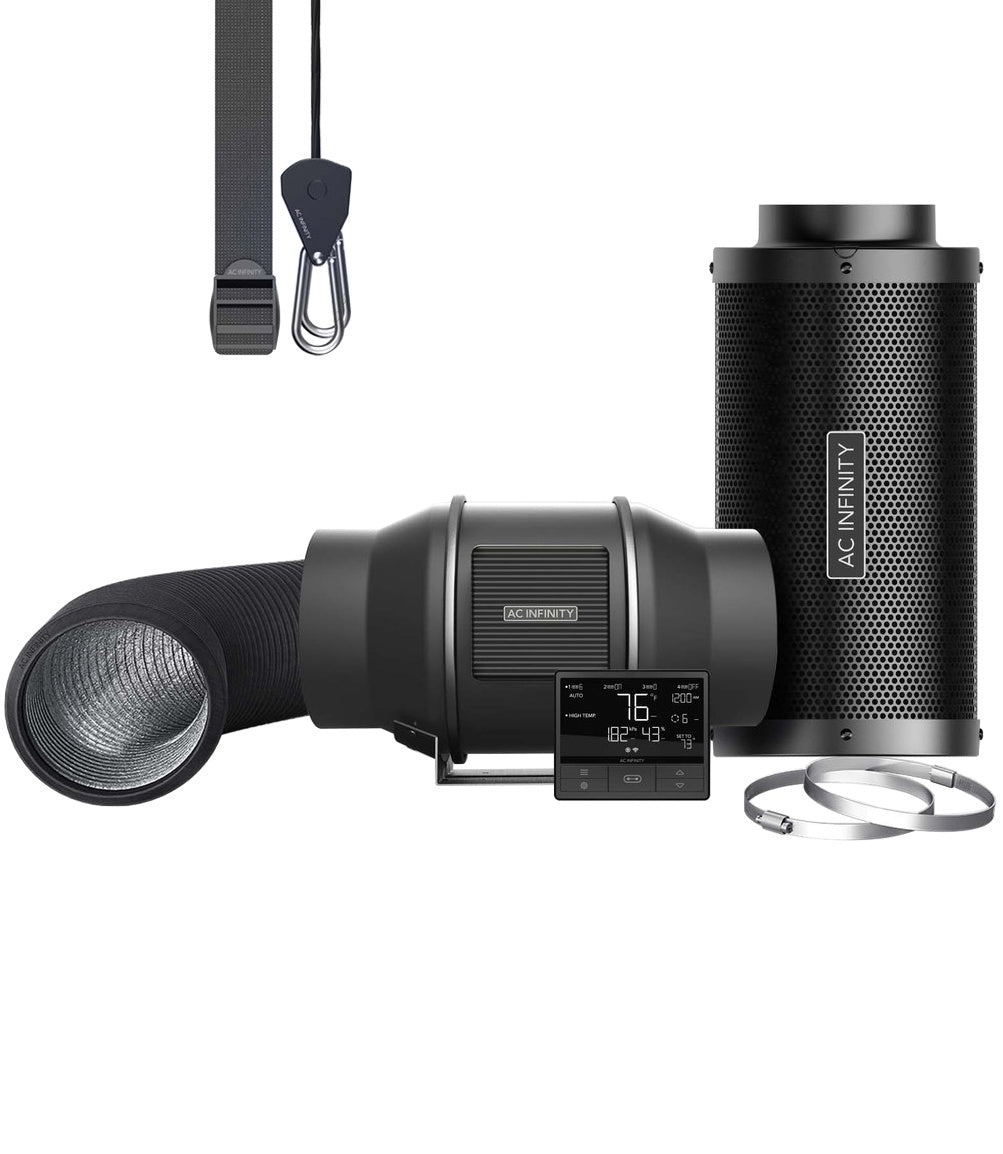

AC Infinity T6 Air Filtration Kit 150mm includes:
• 1 x AC Infinity Cloudline T6 Inline Fan 6 inch / 150mm
• 1 x AC Infinity Controller 69 Pro with probe (for added wifi and VPD control)
• 1 x AC Infinity Carbon Filter 6 inch / 150 MM
• 1 x Ducting 6 inch / 150mm, 7.62m Length
• 2 x Duct Clamps 6 inch / 150mm
• 2 x Ratchet Rope Hangers
• Straps and Brackets to hang fan

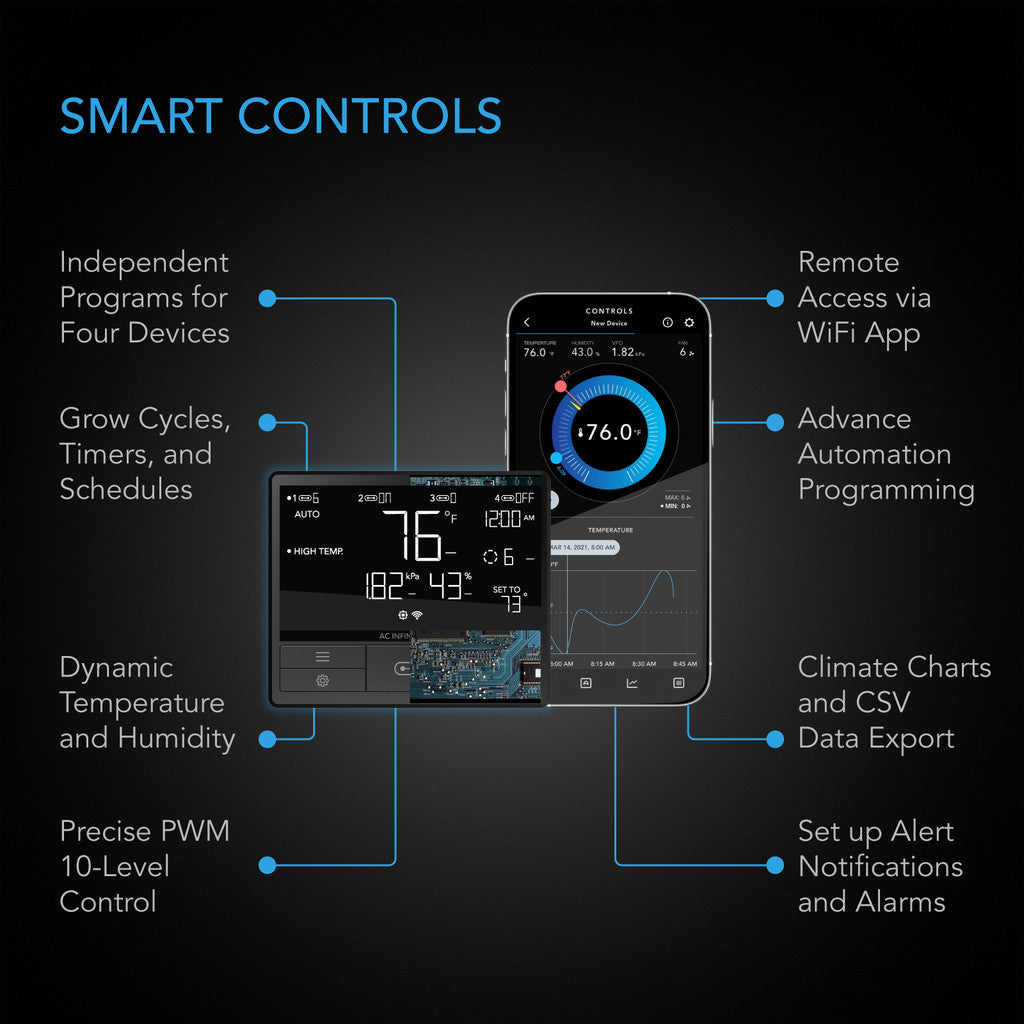

INTELLIGENT PROGRAMMING
CONTROLLER 69 Pro distributes smart programming to the quiet inline fan to keep temperature and humidity in check and produce the optimal environment. Set dynamic programs that go beyond on/off triggering and adjust fan speed in response to changing indoor climate. Minimum baseline levels keep the inline fan running at low speeds for consistent airflow while timer, cycle, and schedule modes add custom on-demand activation. Equipped with four ports to expand your airflow or add lighting for growing applications. Securely connect with the AC Infinity app via Bluetooth to remotely access your devices, unlock advance programs, set alarms, notifications, view historical charts, and export CSV data.

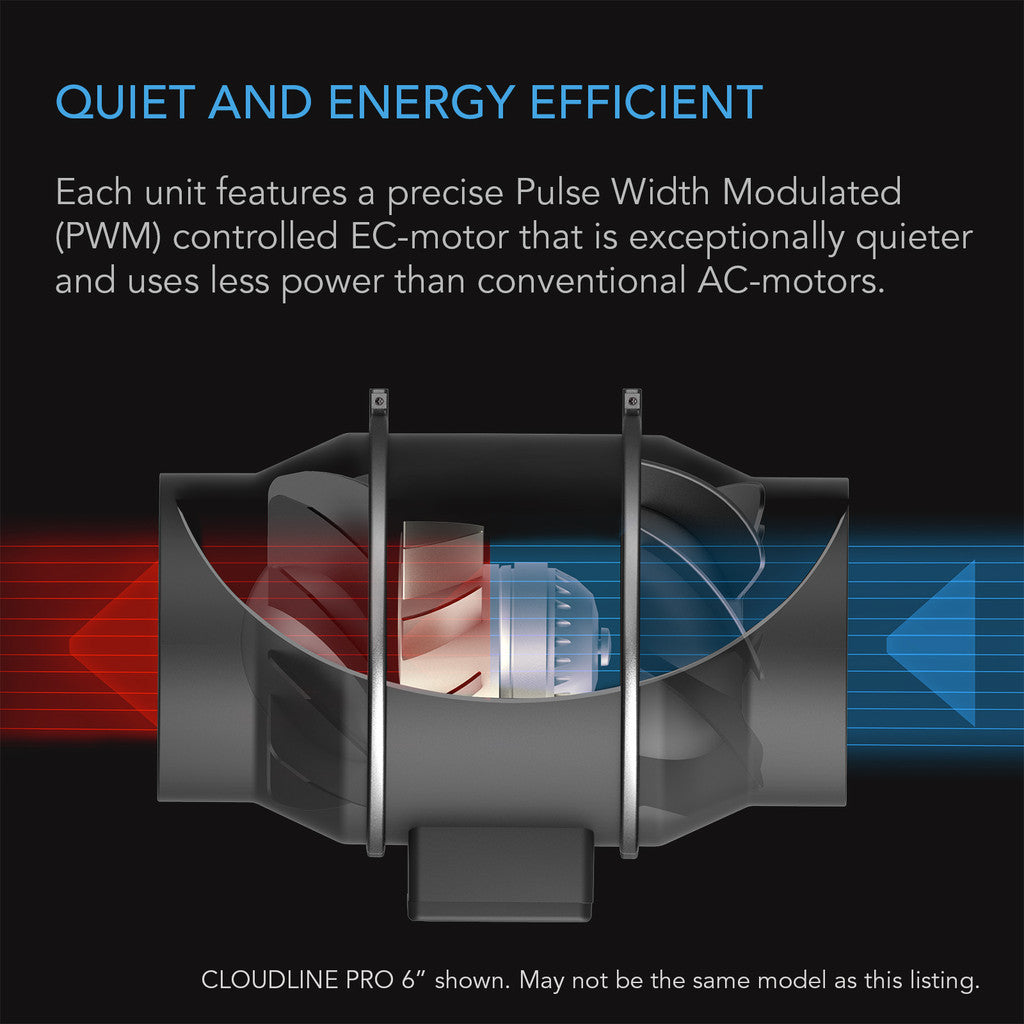

QUIET AND ENERGY-EFFICIENT DESIGN
The included CLOUDLINE Series inline fan features a PWM-controlled EC motor, enabling smooth operation at low RPM speeds with no additional heat or noise. It achieves high-performance airflow fit for grow tents thanks to its mixed-flow design and its use of stator blades and hydrodynamic wind circles. Dual ball bearings give this inline fan a 67,000-hour lifespan which is backed by its IP-44 rating, resisting dust and splashing liquids.

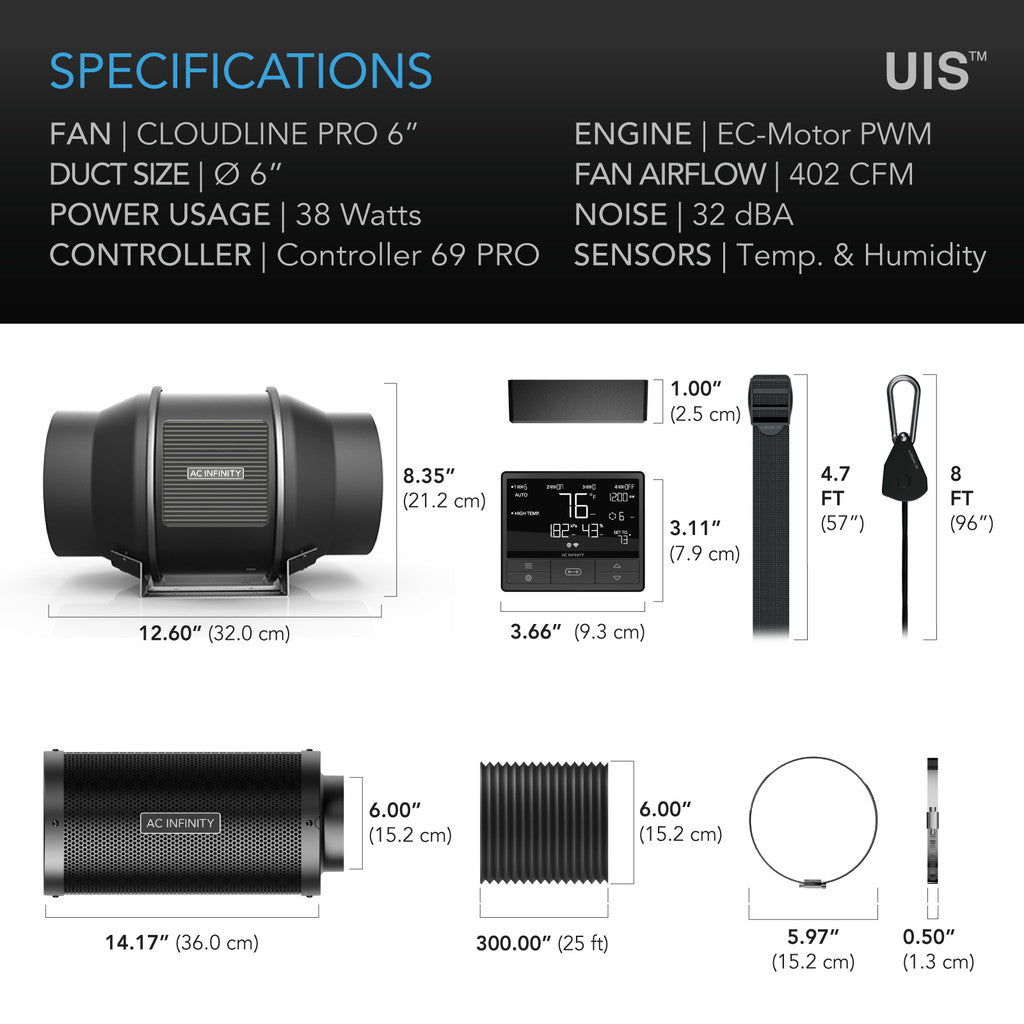

Specifications
| Manufacturer | AC Infinity Inc. |
| Product Name | Air Filtration Kit PRO 6" |
| Product Model | AC-FKT6 |
| UPC Code | 819137022928 |
| Product Manual | |
| Product Manual |  PDF |
| Product and Mounting Dimensions - Fan Unit | |
| Duct Size | 6" / 150 mm |
| Total Dimensions | 7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm) |
| Mounting Hole-To-Hole Distance | 3.15 x 2.36 in. (8.0 x 6.0 cm) |
| Screw Hole Size | Ø 0.236 in. (Ø 0.6 cm) |
| Cord Length to Controller | 72 in. (6 feet) / 1.8m |
| Cord Length to Plug | 72 in. (6 feet) / 1.8m |
| Product and Mounting Dimensions - Controller | |
| Total Dimensions | 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm) |
| Required Mounting Area | 4.71 x 2.64 in. (12.0 x 6.7 cm) |
| Hole to Hole Distance | 2.87in. (7.3 cm) |
| Display Size | 3.5 x 1.4 in. (9 x 3.5 cm) |
| Screw Hole Size | Ø 0.119 in (Ø 0.3 cm) |
| Cord Length to Plug | 96 in. (8 feet) / 2.4 metres |
| Sensor Probe Length | 144 in. (12 feet) / 3.7 metres |
| Product Performance and Technical Specs - Fan Unit | |
| Total Airflow (Fan Only) | 402 CFM |
| Total Noise | 32 dBA |
| Static Pressure | 394 Pa |
| Voltage | 100-240V AC |
| Frequency | 50/60Hz |
| Max Power Draw | 61 W |
| Average Power Usage | 35 W |
| Current | 0.85 A |
| Power Connector Type | Australian power plug |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 0 to 140°F |
| Ingress Protection | IP 44 |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
| Fan Quality Approvals | CE, RoHS |
| CE Certification (Fan Only) |
PDF
|
| ETL Cert. (Fan Only) |
PDF
|
| RoHS Cert. (Fan Only) |
PDF
|
| SAA Cert. (Fan Only) |
PDF
|
|
Product and Mounting Dimensions - Carbon Filter |
|
| Duct Opening Size | 6" / 150mm |
| Total Dimensions | 15.94 x 8.93 in. (40.5 x 22.7 cm) |
| Flange Length | 1.57 in. (4.0 cm) |
|

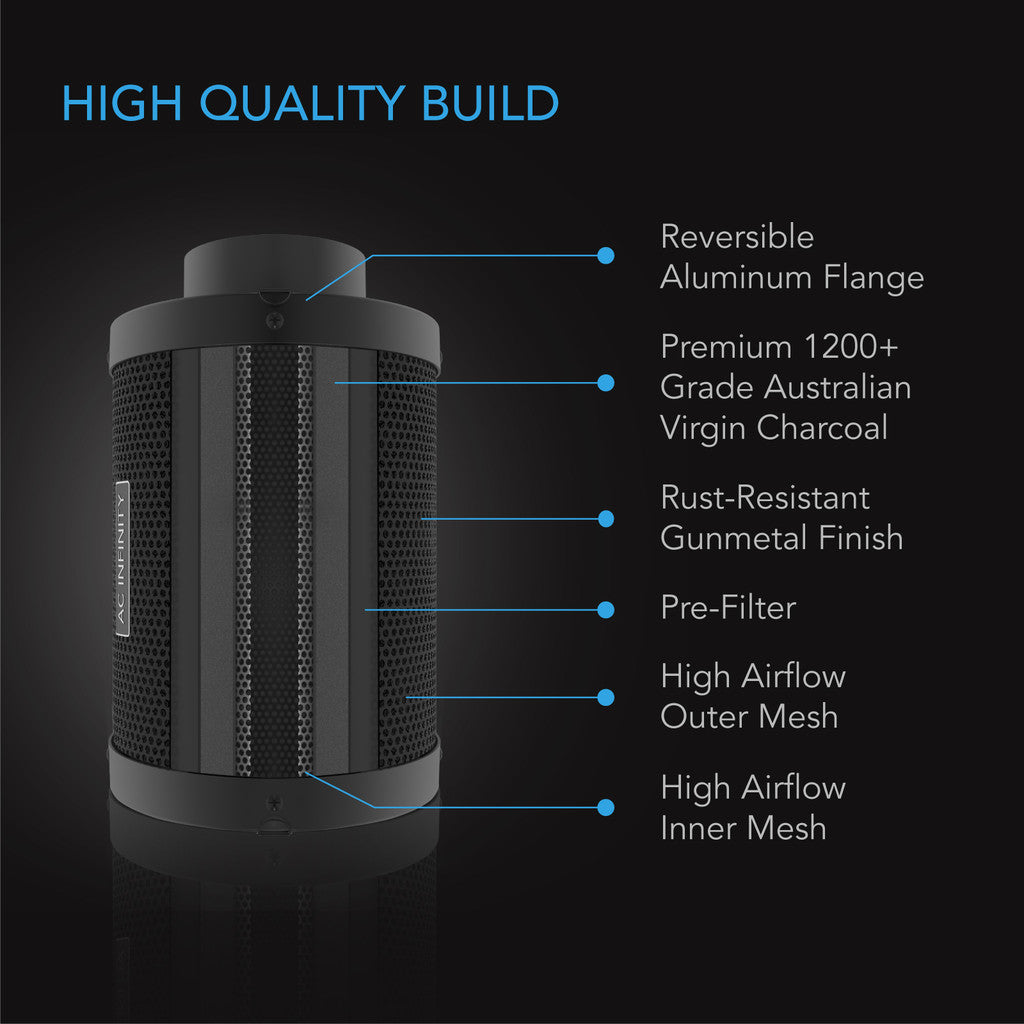

Product Performance and Technical Specs - Carbon Filter |
|
| Flange Material | Aluminum |
| Flange Design | Reversible |
| Mesh Material | Galvanized Steel |
| Carbon Type | Australian Virgin RC412 |
| Carbon Grade | 1200+ IAV |
| Carbon Thickness | 38mm |
| Maximum Airflow | 410 CFM |
|
Product Dimensions - Ducting |
|
| Ducting Size | 6 inch / 15.2 cm |
| Length | 300 in. (25 ft) / 7.62m |
|
Product Performance and Technical Specs - Ducting |
|
| Outer Layer | PVC Thermoplastic |
| Inner Material | Aluminum Foil |
| Internal Structure | Spiral Steel-Wire |
