AC Infinity Room To Room Fan, Two-Way Airflow, Temperature controller, 8 Inch / 200mm

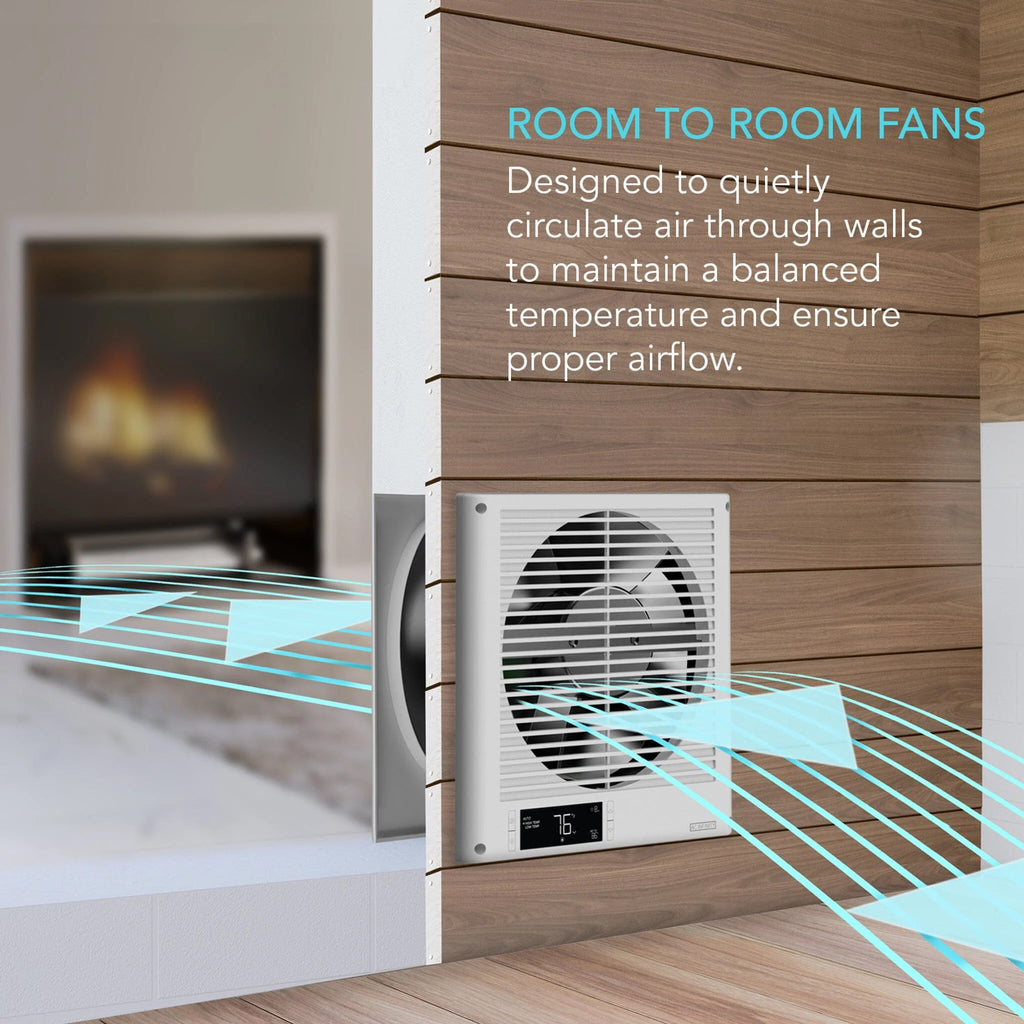

• Room ventilation fan designed to balance room temperature by transferring air from one room to another.

• Digital controller features 10 precise fan speeds with temperature, timer, and cycle programming.

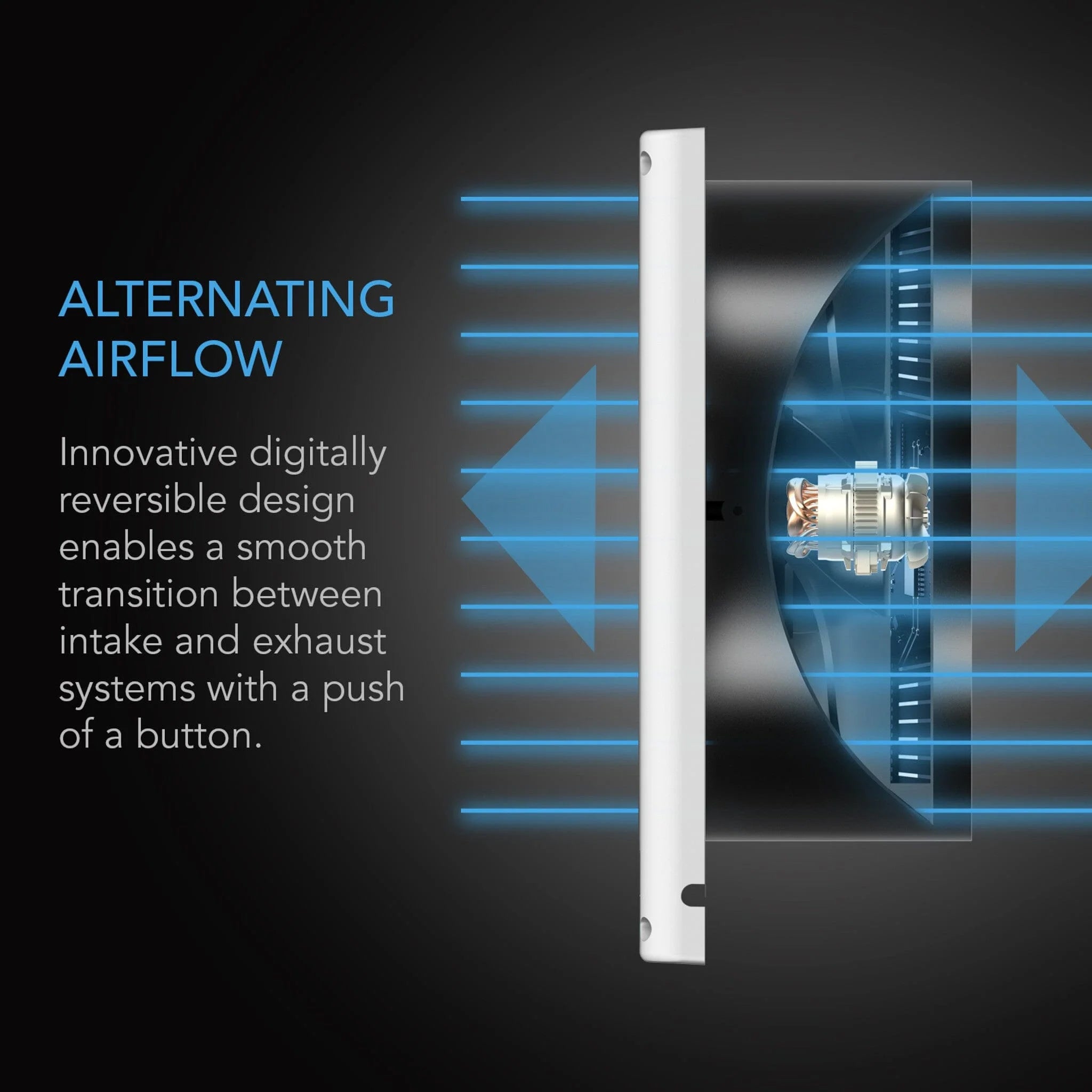

• Alternating exhaust system enables digitally reversible airflow with a single push of a button.

• Next-gen EC motor with PWM controls and dual ball bearings housed in a flush mount heavy-duty frame.

• Dimensions: 10.15 x 10.15 x 4.58 in. | Fan Diameter: 8 in. | Airflow: 305 CFM | Noise: 48 dBA

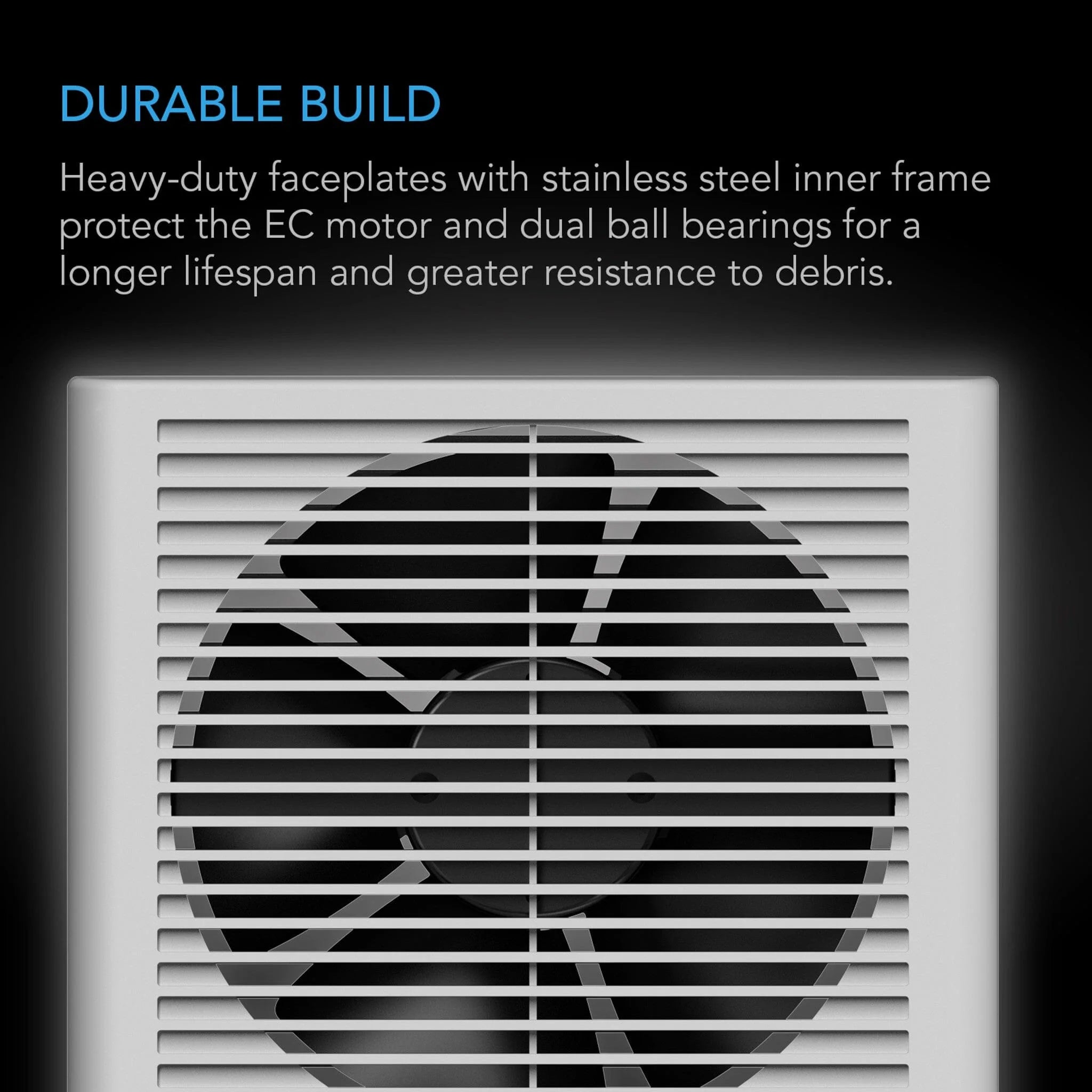

An in-wall vent fan designed to quietly circulate air between multiple rooms to maintain a stable temperature. Powered by an intelligent controller that features temperature, timer, and cycle programming. Its airflow is digitally reversible with a single push of a button and allows for an effortless transition between intake and exhaust functionality. Ensuring greater efficiency, the EC motor with next-level PWM controls smoothly operates at extremely low RPM speeds without generating motor noise. The durable faceplates and inner metal frame shield the motor and its dual ball bearings for long-lasting use.

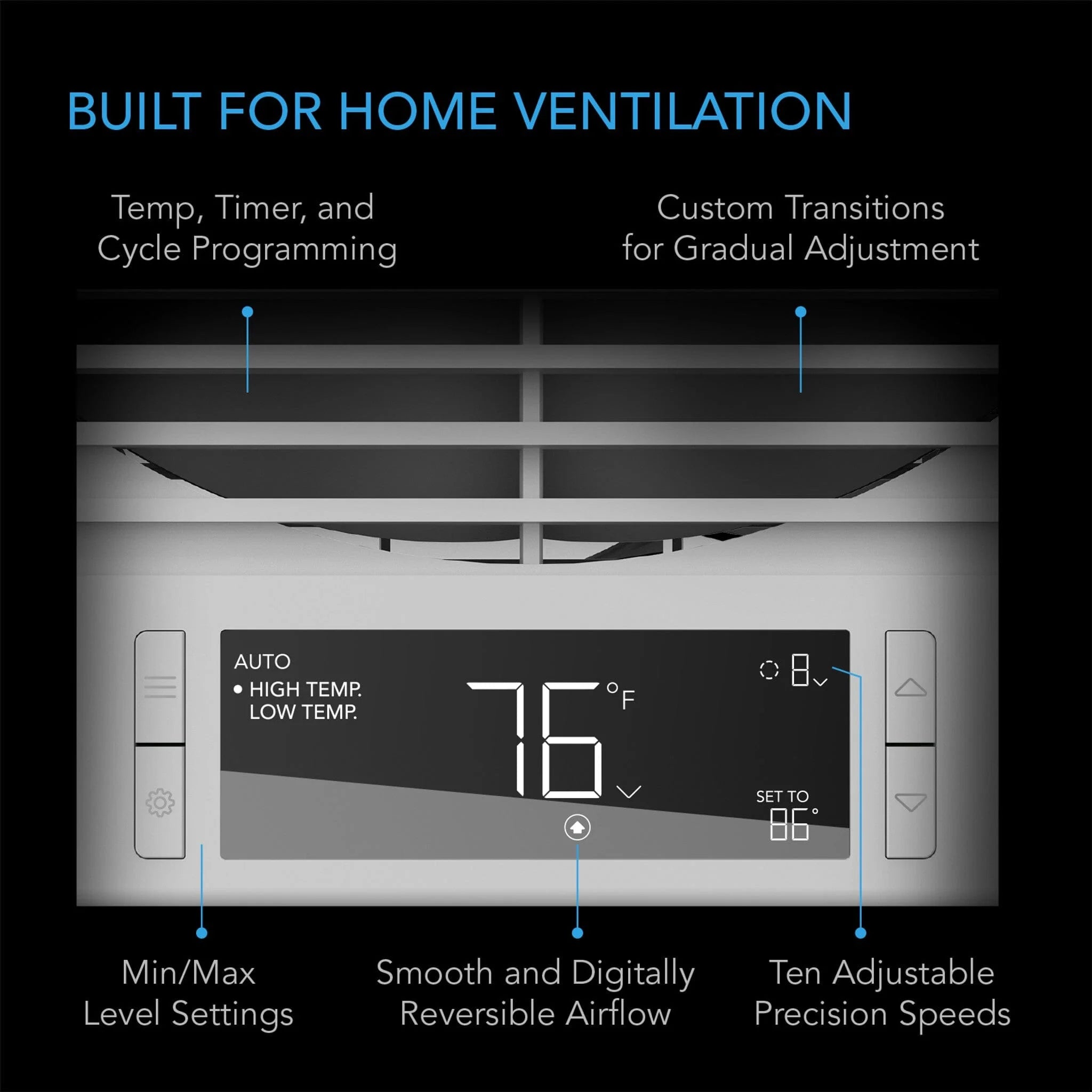

The digital controller enables the ability to set the fan’s speed to optimal noise and airflow levels. Automated programs for greater climate control include ten precise speeds, temperature triggers, timers, and cycles with custom transitions. This will enable dynamic fan speeds that change to fit any climate condition, only increasing when temperatures rise.

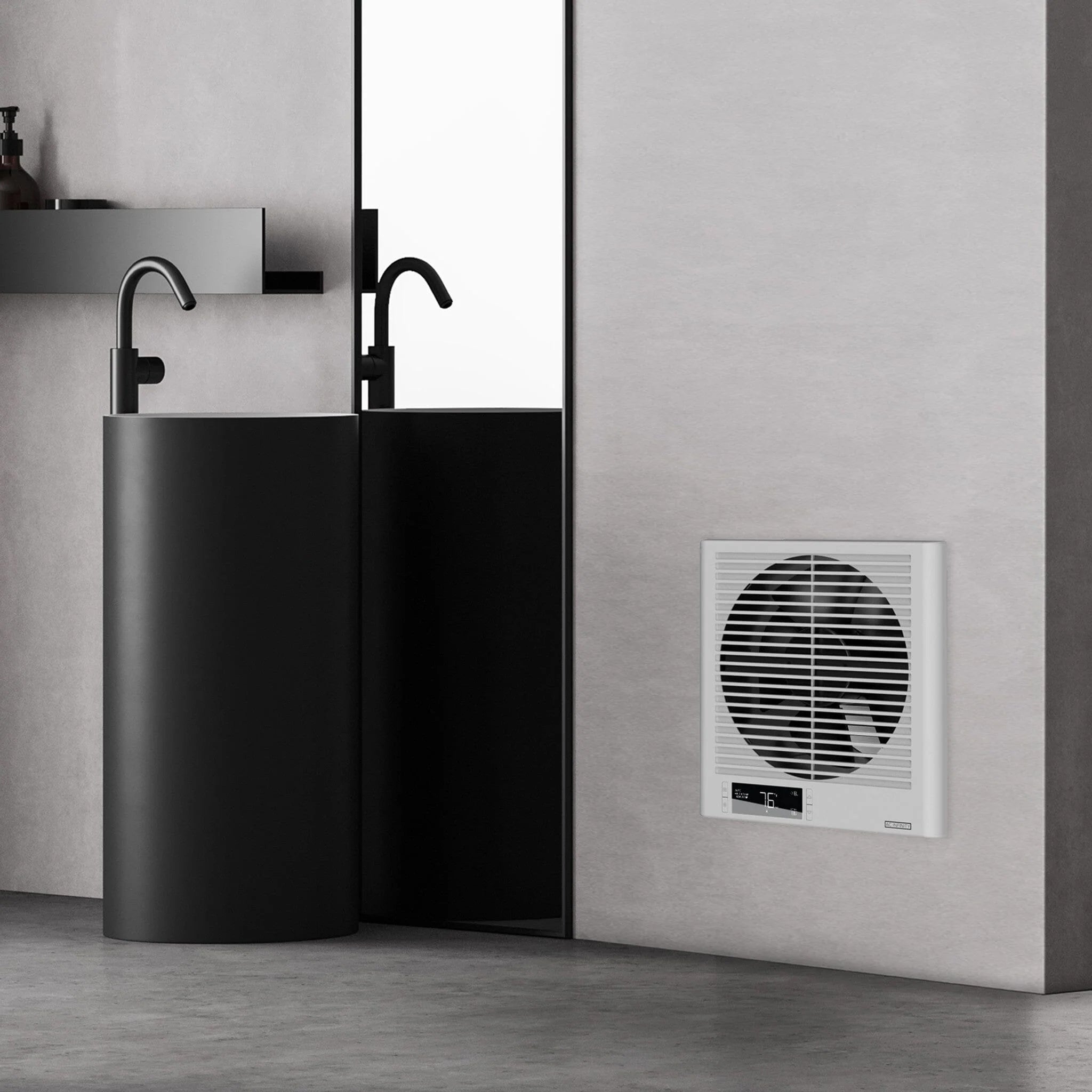

This through the wall fan improves ventilation between rooms and is ideal for offices, workshops, rec rooms, laundry rooms, and areas that may otherwise not receive proper airflow. The flush mount faceplates make for a clean, sharp appearance while the heavy-duty frame is crafted to withstand dust and additional debris.



Product Identification Room to Room fan 200 mm
Manufacturer	AC Infinity Inc.
Product Name	Room to Room Fan 8"
Product Model	AC-TWT8
UPC Code	819137023338

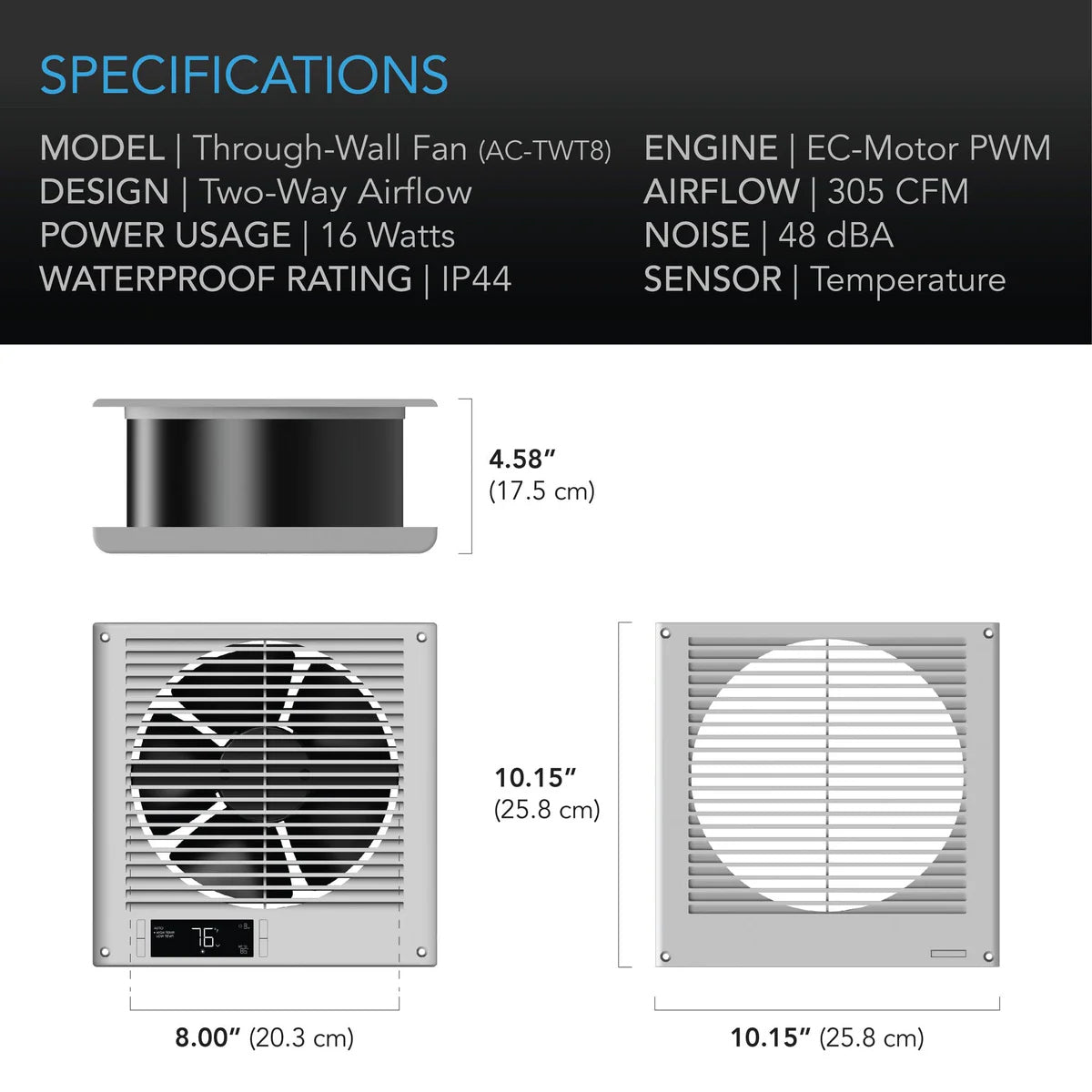

Product and Mounting Dimensions
Fan Size	8"
Total Dimensions	10.15 x 10.15 x 4.58 in. (25.8 x 25.8 x 11.7 cm)
Cord Length to Plug	72 in. (6 feet)
Product Performance and Technical Specs
Maximum Airflow	305 CFM
Total Noise	48 dBA
Static Pressure	64.7 Pa
Operating Voltage	100V-240V AC
Power	16 W
Current	0.26 A
Operating Humidity	35 to 85% RH
Operating Temperature	40 to 140°F
Fan Bearings	Dual Ball Bearing
Mounting Positions	Horizontal
Life Expectancy	50,000 Hours
Product Manual
Product Manual	PDF
