Description
• Ultra-quiet UL-certified USB fan designed to cool various electronics and components.
• Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.
• Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright.
• USB plug can power the fan through USB ports found behind popular AV electronics and game consoles.
• Dimensions: 4.7 x 4.7 x 1 in. per fan | Total Airflow: 104 CFM | Total Noise: 19 dBA | Bearings: Dual Ball
PRODUCT DESCRIPTION

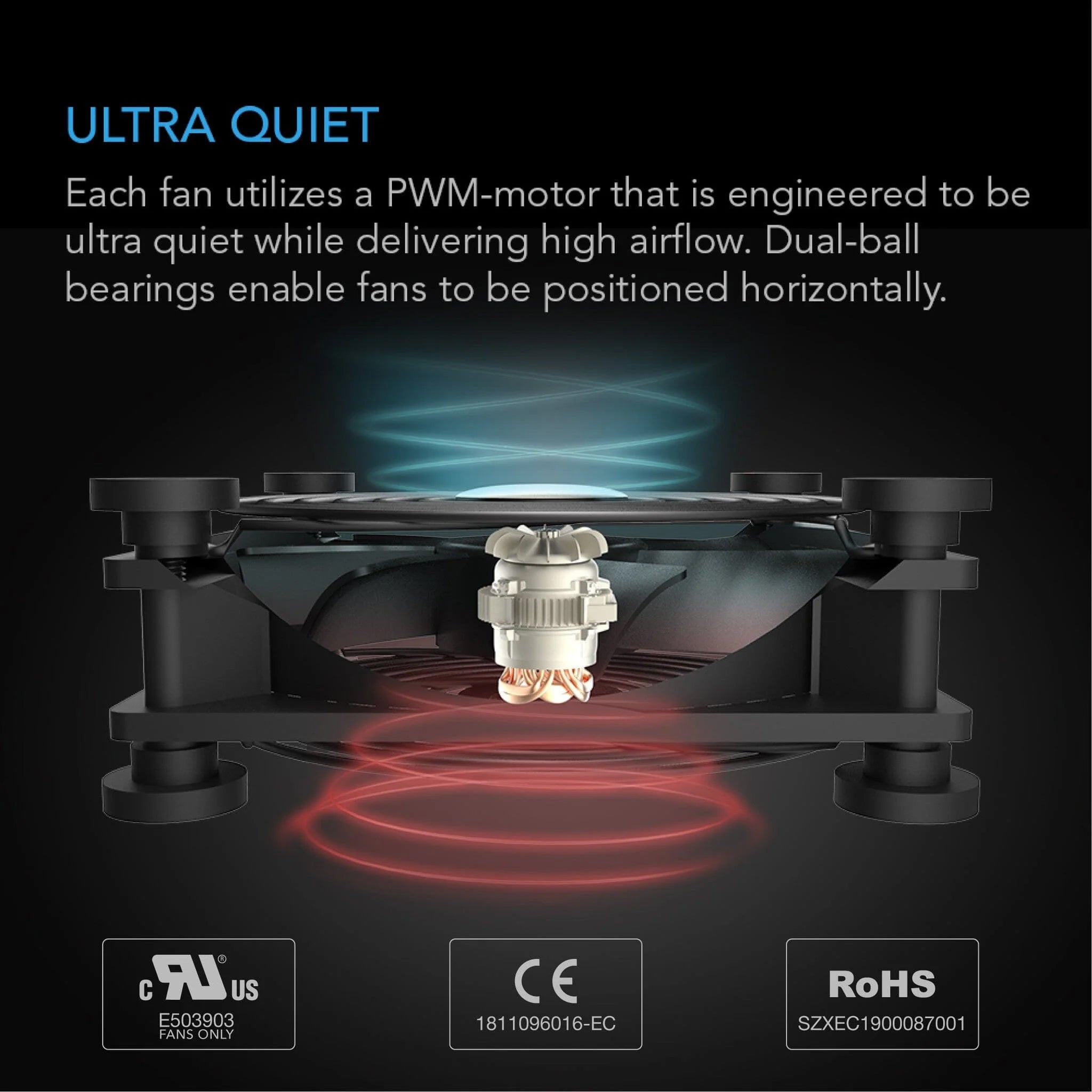

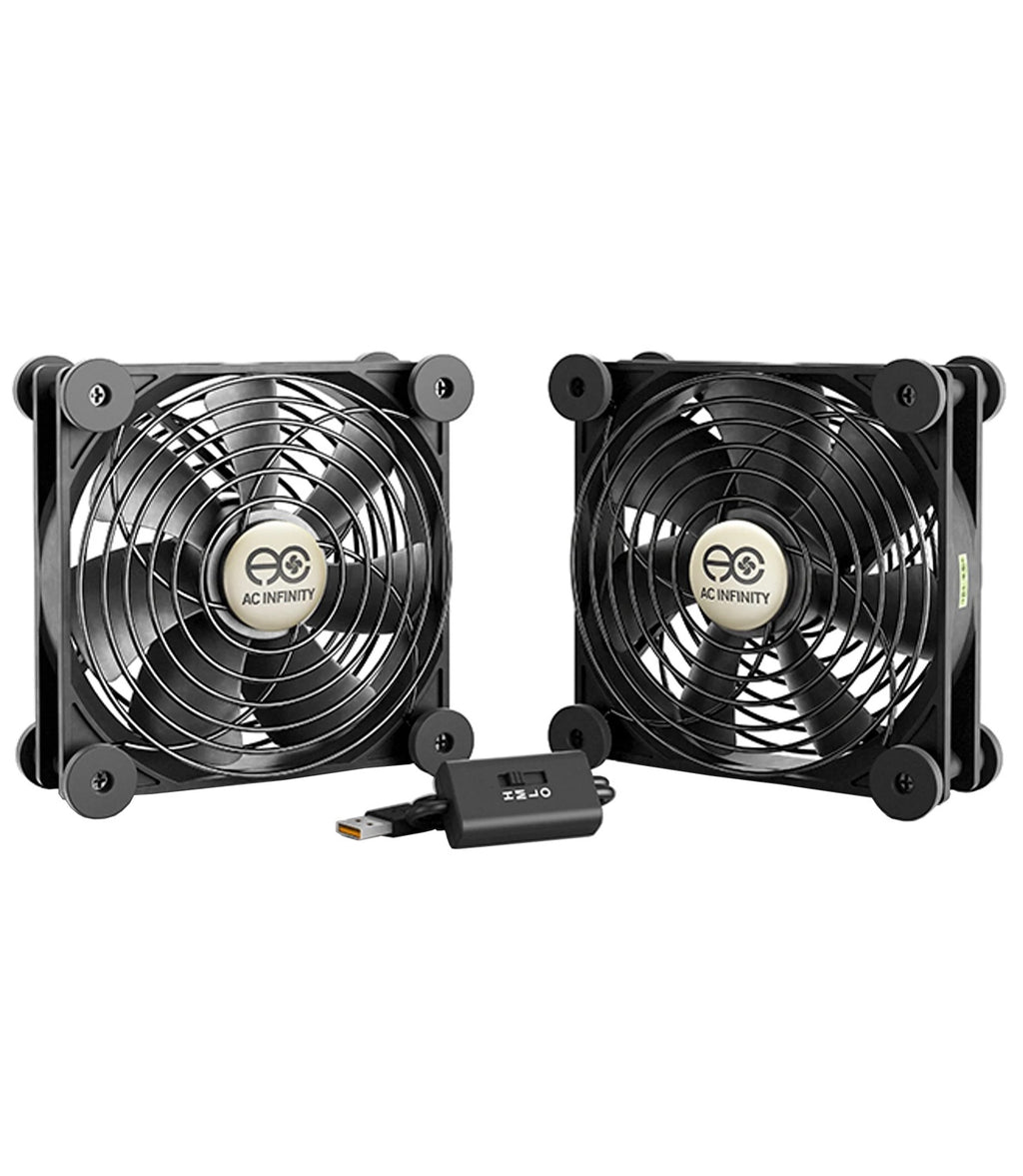

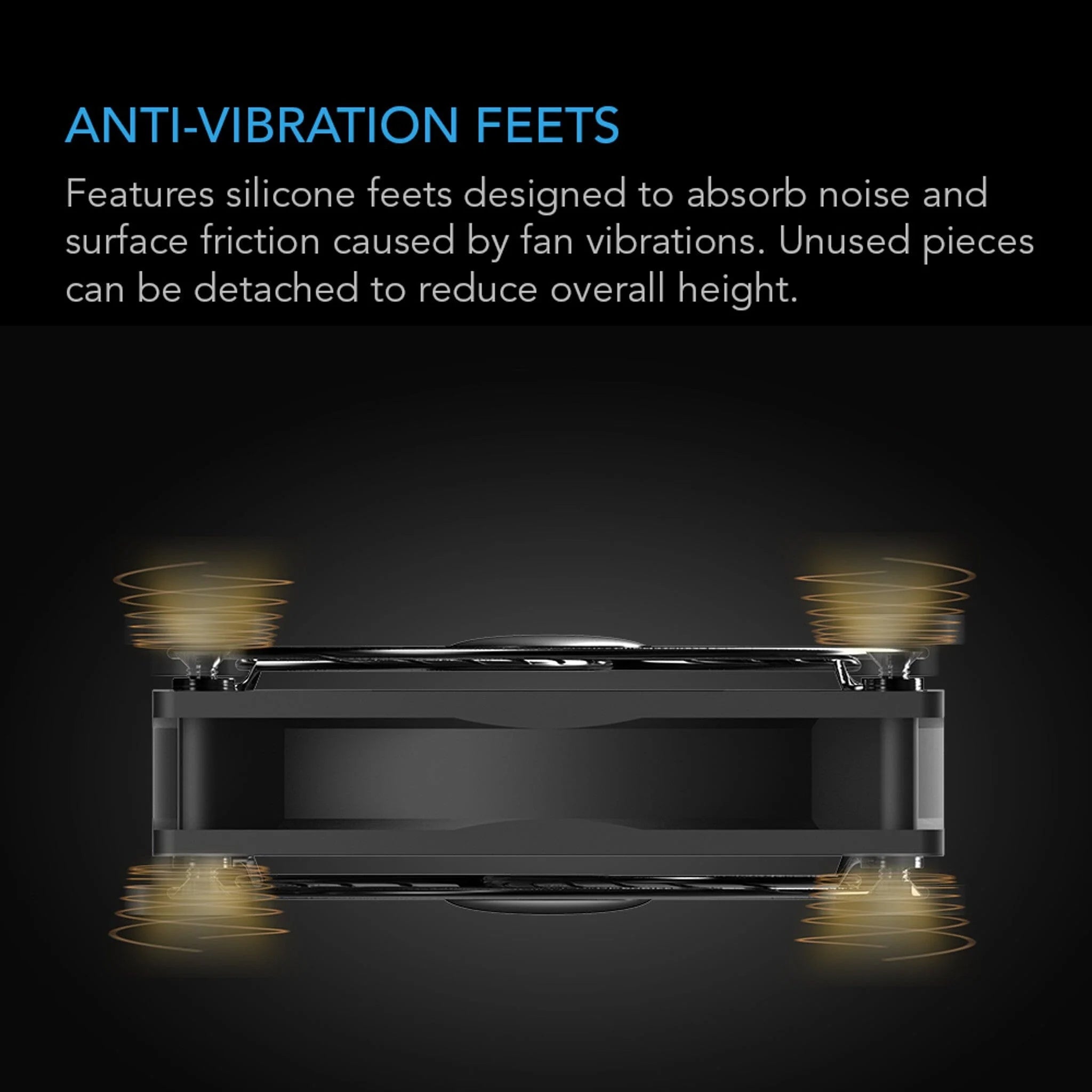

The ultra-quiet cooling fan can be positioned to stand upright or laid flat to cool various electronics and components. Features a multi-speed controller with power switch. Includes eight large anti-vibration rubber feet and a 6-foot power cord. The USB plug can be plugged into the USB ports found behind popular electronics such as receivers and video game consoles. Each unit contains an additional USB port, up to four fans can be daisy chained together to share the same power source. This fan system is CE and RoHS certified and contains premium dual-ball bearings, allowing it to be mounted horizontally or vertically. Contains AC Infinity axial fans ACX-FD1425(B)05W3 which meet UL-507 standards for safety under Underwriters Laboratories certificate E503903.

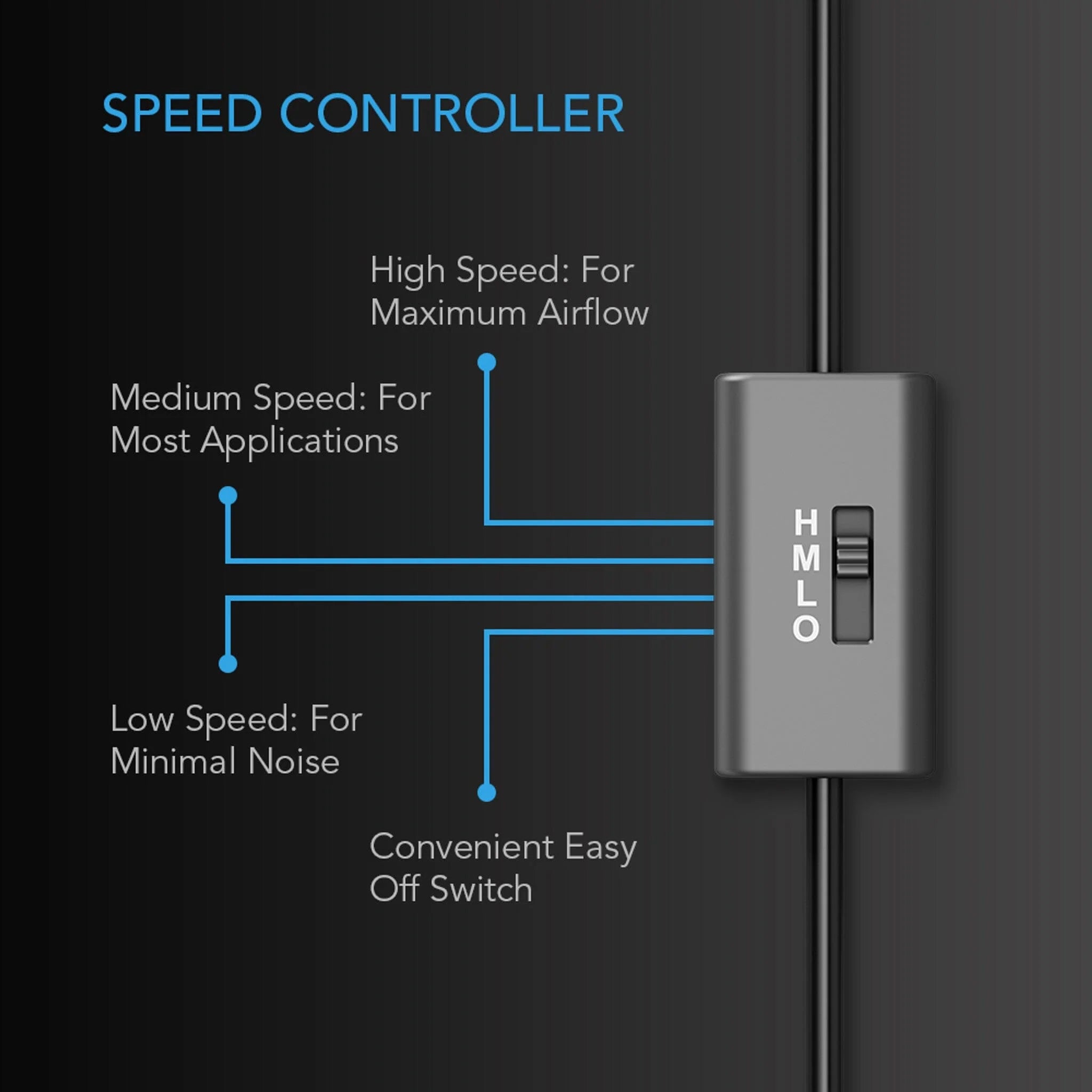

SPEED CONTROLLER
The fan includes an in-line multi-speed controller with power switch to set the fan’s speed to optimal noise and airflow levels for various environments.
CONNECTING ADDITIONAL UNITS
For electronics and components that requires more airflow, each fan unit can daisy chain additional MULTIFAN S series fans. Up to four fans can share the same USB power source; and up to six fans can share the same thermal controller (sold separately). MULTIFAN S1, S2, S3 and S4 contains one fan, and MULTIFAN S5 and S7 contains two fans.
APPLICATIONS

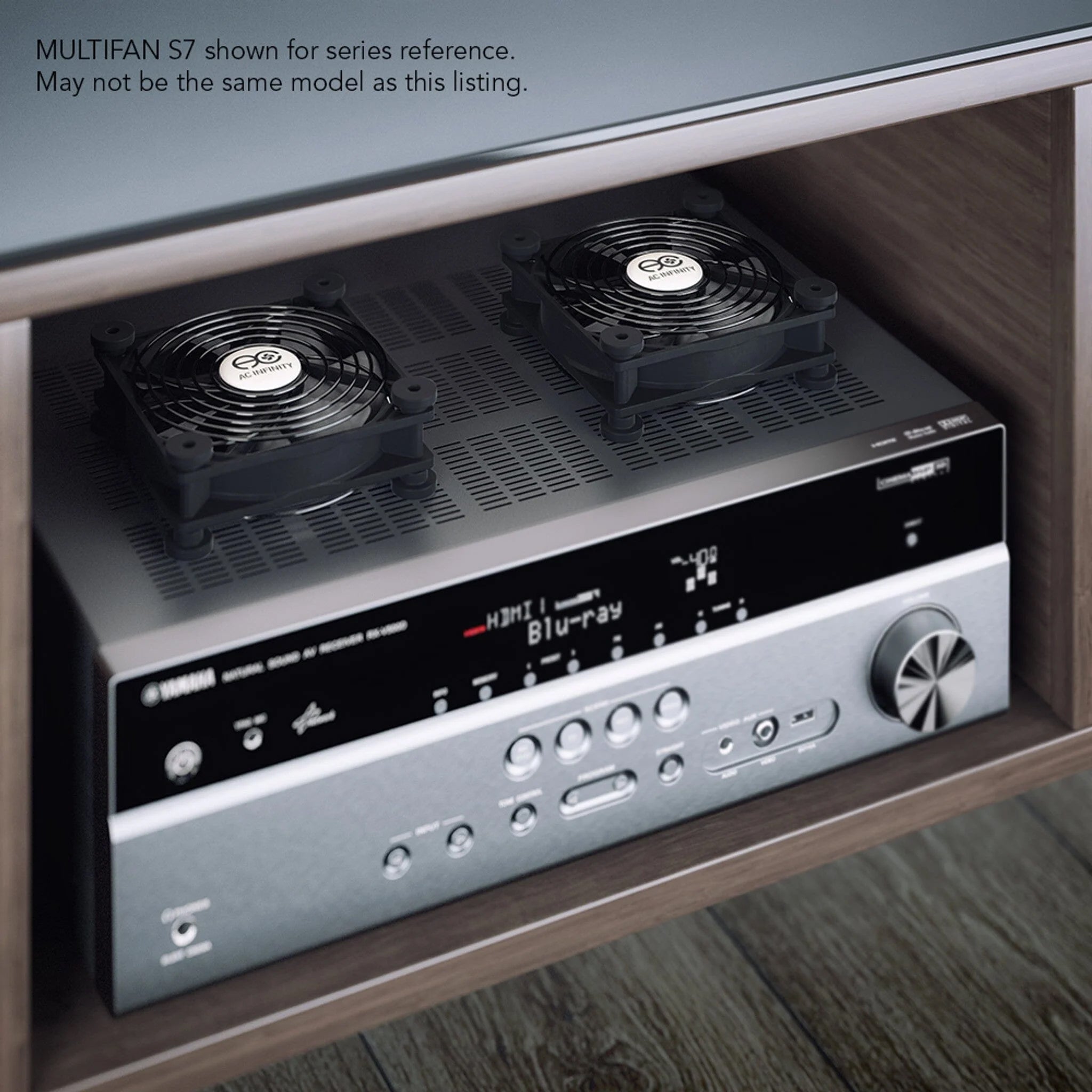

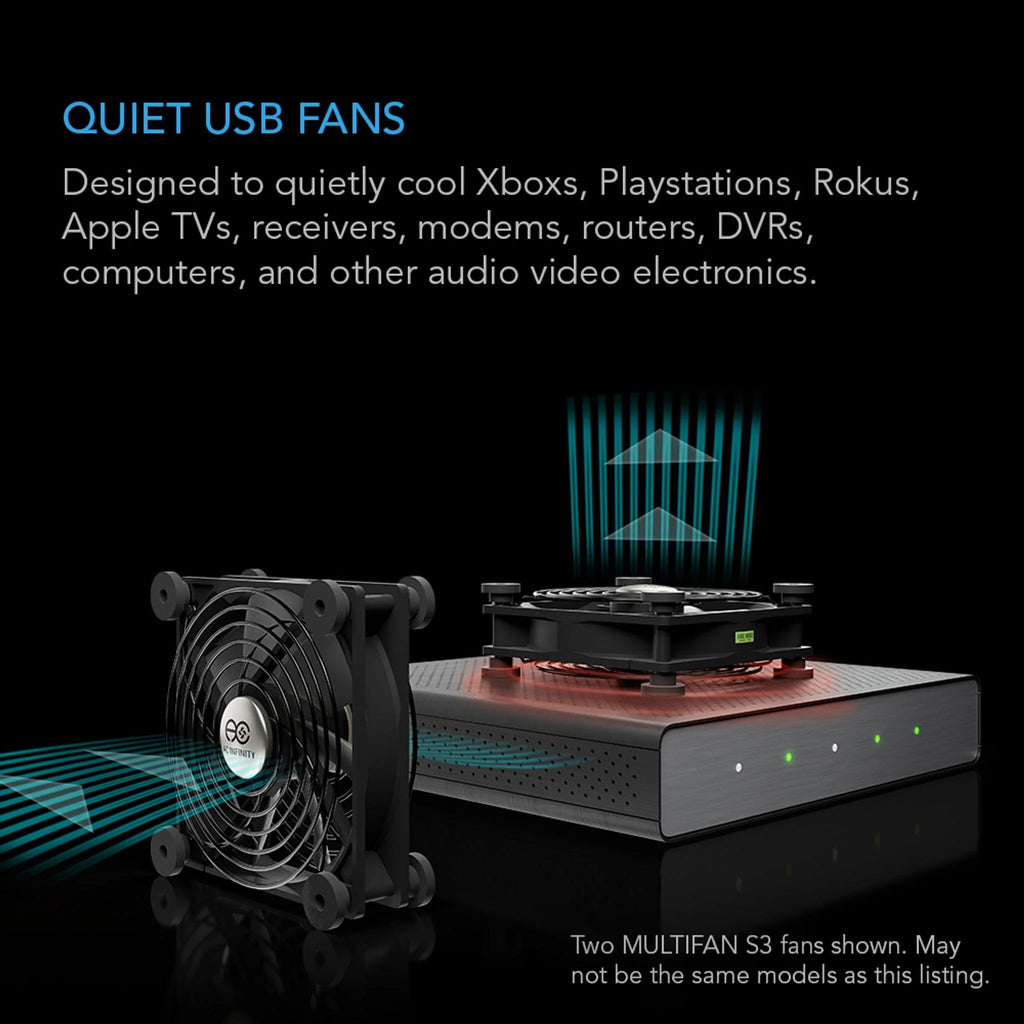

This ultra-quiet cooling fan is popular in a variety of electronics and components such as receivers, DVRs, video game consoles, modems, computers, amplifiers, and other audio video equipment.
| Product Identification Multifan S7 - Dual Fans | |
| Manufacturer | AC Infinity Inc. |
| Product Name | MULTIFAN S7 |
| Product Model | AI-MPF120A2 |
| UPC Code | 854759004341 |

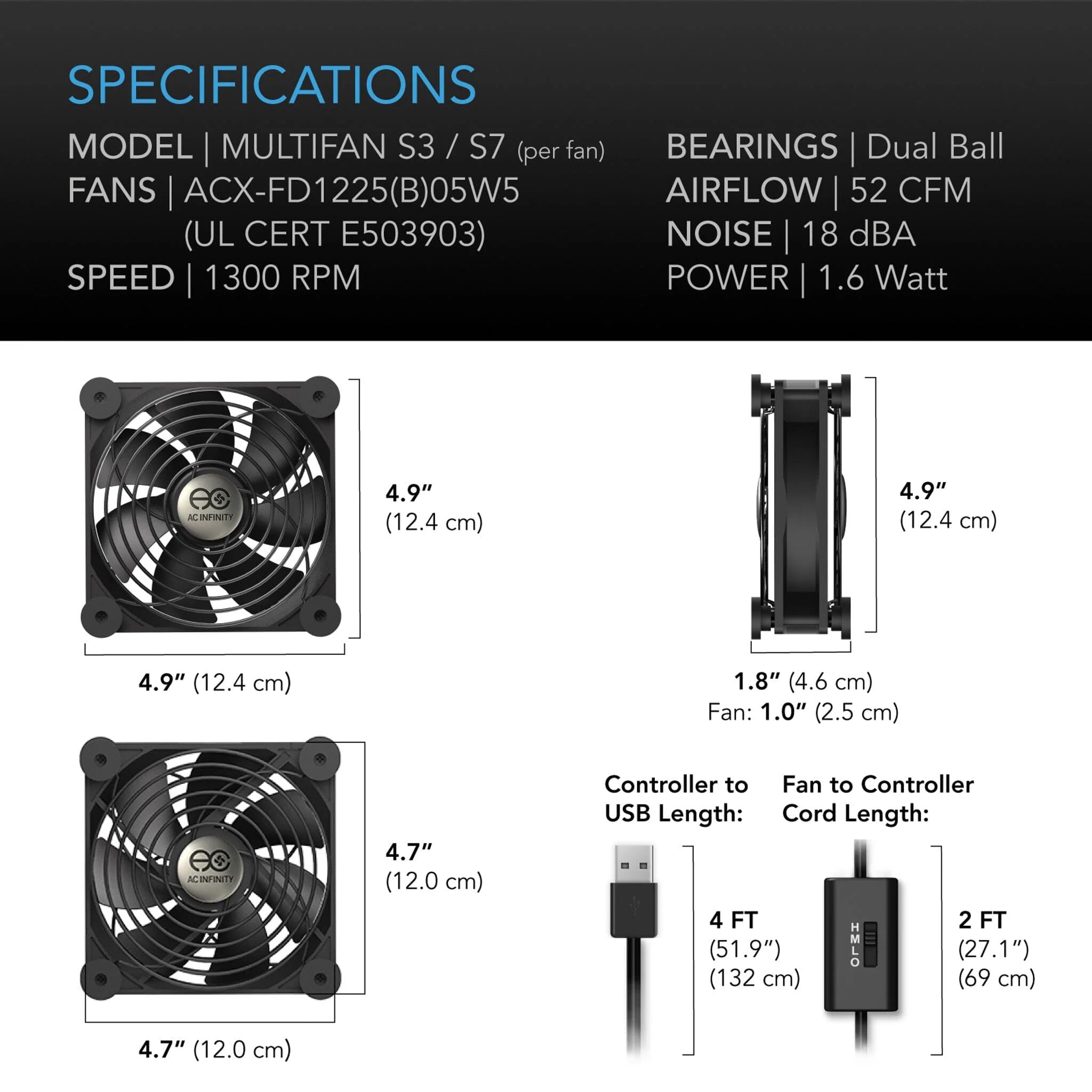

| Product Dimensions | |
| Total Dimensions | 4.7 x 4.7 x 1.0 in. (12.0 x 12.0 x 2.5 cm) |
| Hole to Hole Distance | 4.14 x 4.14 in. (10.5 x 10.5 cm) |
| Screw Hole Size | Ø 0.17 in. (Ø 0.4 cm) |
| Cord Length | 72 in. (6 feet) |
| Product Performance and Technical Specs | |
| Total Airflow | 52 CFM |
| Total Noise | 18 dBA |
| Speed | 1300 RPM |
| Operating Voltage | 3 to 7V DC |
| Power | 1.6 W |
| Current | 0.32 A |
| Wall Adapter Input | 100 to 240V AC |
| Static Pressure | 1 mm-H2O |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 0 to 158°F |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
| UL Certification (Fans Only) |
 PDF |
| CE Certification (Whole Product) |
PDF |
| RoHS Cert. (Whole Product) |
PDF |
| Product Manuals | |
| Fan Unit Manual |
PDF |
