Description

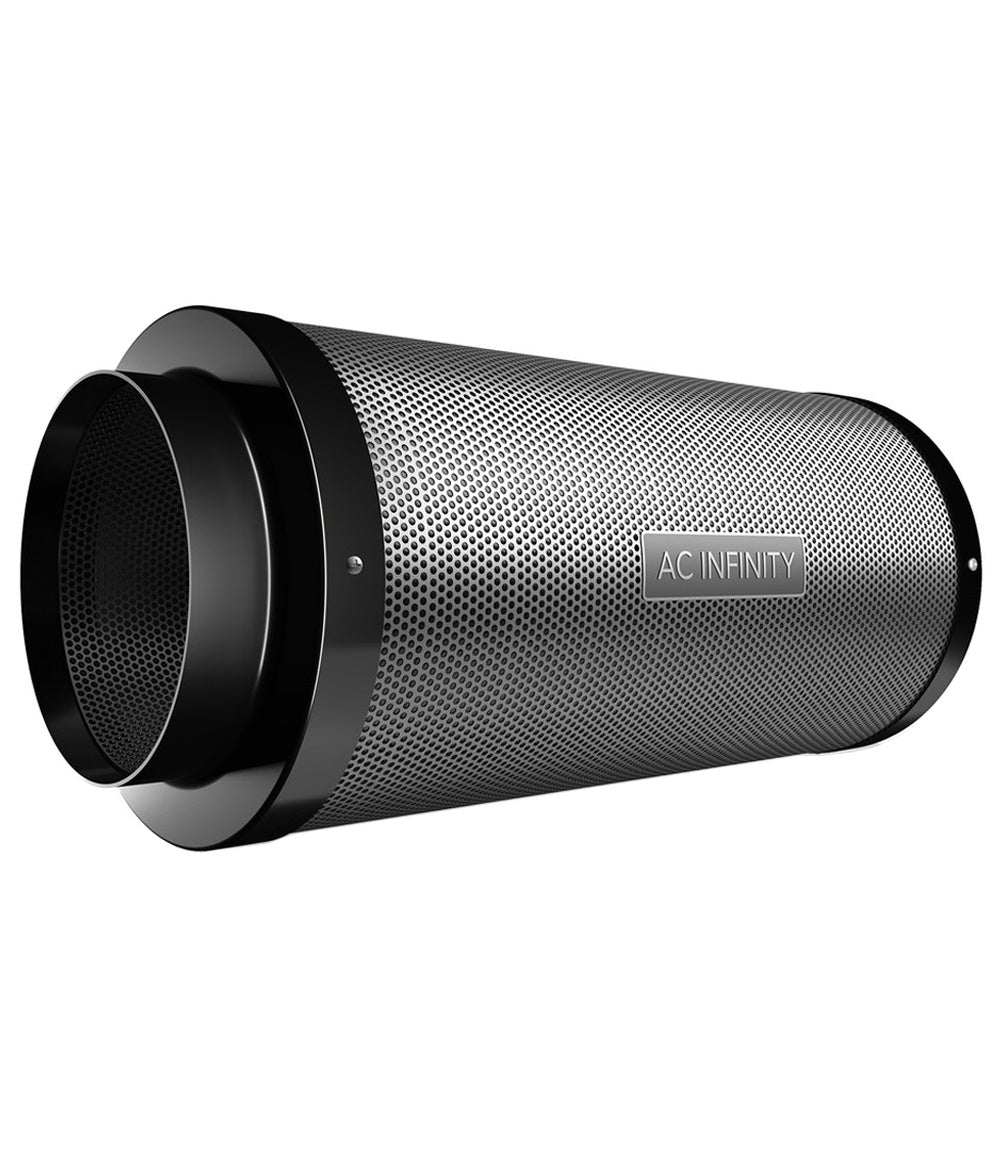

A high-airflow duct filter designed to eliminate odours and chemicals, utilising a premium-grade Australian Virgin charcoal bed. This activated carbon bed has RC412 pore sizes that enable a high adsorption rate and longer life rating. Its heavy-duty construction features aluminium flanges and dual-sided galvanised steel mesh with a rust-resistant gunmetal finish to stand up to corrosion and high humidity. The carbon filter can be used with an inline duct fan for use in intake and exhaust configurations, while its flanges can be reversed to further prolong its lifespan. Includes two machine-washable pre-filter cloths to prevent carbon residue and two hanging straps for easy installation.
• Designed to eliminate odors and chemicals for grow tents and hydroponics rooms.
• Features premium-grade Australian charcoal with higher adsorption and longer life rating.
• Contains heavy-duty aluminum flanges, galvanized steel meshing, two hanging straps, and two clothed pre-filters.
• Enables maximum airflow passthrough for both intake and exhaust configurations.
• Duct Opening: 10” | Length: 24" | Airflow Rating: 1249 CFM | Carbon: Australian RC412 at 1200+ IAV | Thickness: 38mm
PREMIUM GRADE CARBON
Each carbon filter features premium-grade Australian Virgin charcoal bed rated at 1200+ IAV. It achieves a 38mm charcoal bed thickness and wider mesh openings thanks to a higher microporosity and surface area rating. This combination not only enables a higher adsorption rate without restricting free airflow, but it also allows the carbon filter to last up to 33% longer.
Specifications
|
Manufacturer
|
AC Infinity Inc.
|
|
Product Name
|
Duct Carbon Filter 10"
|
|
Product Model
|
AC-DCF10
|
|
UPC Code
|
819137020825
|
|
Product and Mounting Dimensions
|
|
|
Duct Opening Size
|
10" / 250mm
|
|
Total Dimensions
|
23.62 x 12.83 in. (60.0 x 32.6 cm)
|
|
Flange Length
|
1.5 in. (3.8 cm)
|
|
Product Performance and Technical Specs
|
|
|
Flange Material
|
Aluminum
|
|
Flange Design
|
Reversible
|
|
Mesh Material
|
Galvanized Steel
|
|
Carbon Type
|
Australian Virgin RC412
|
|
Carbon Grade
|
1200+ IAV
|
|
Carbon Thickness
|
38mm
|
|
Maximum Airflow
|
1249 CFM
|
|
