Description

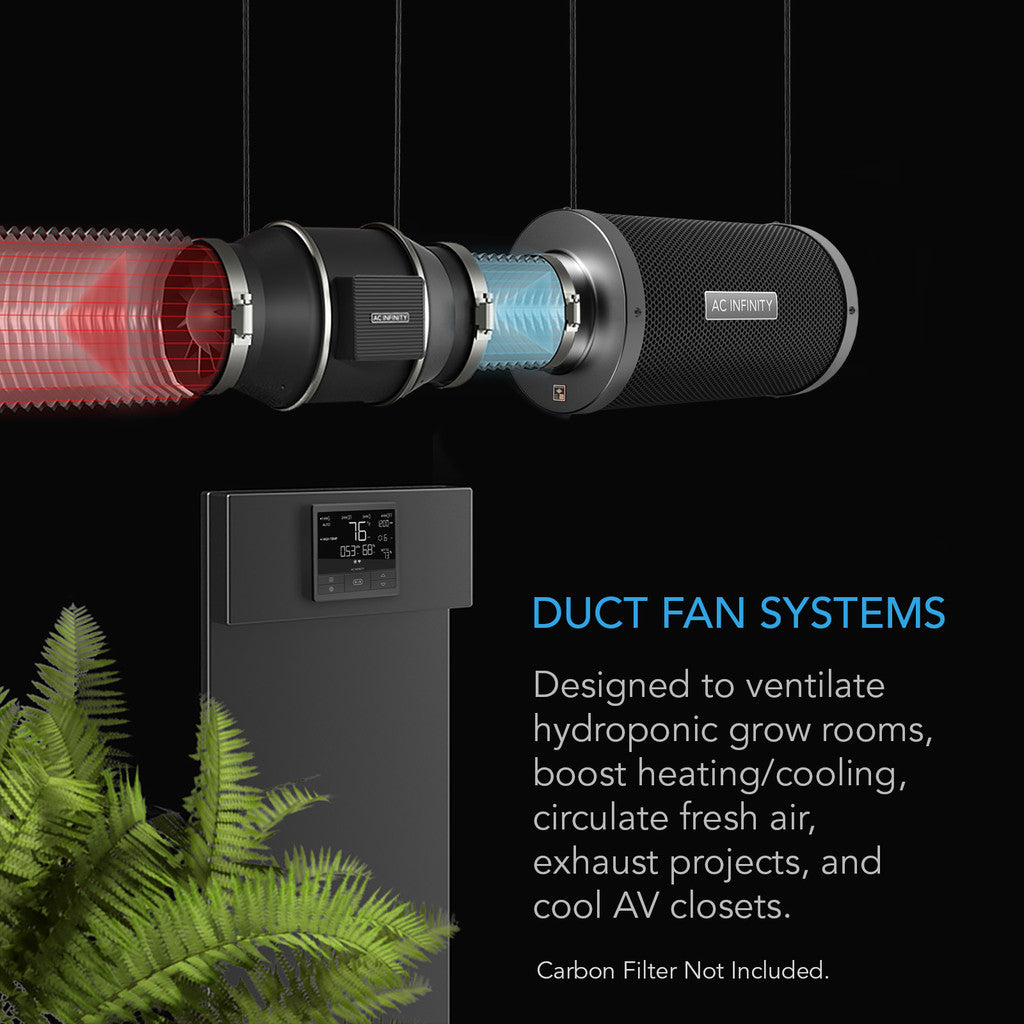

A smart inline duct fan designed to quietly ventilate hydroponic grow rooms, boost heating/cooling to rooms, circulate fresh air, exhaust projects, and cool AV closets. Featuring an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. Contains an EC-motor with PWM-control for quiet and energy-efficient performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Includes a smart controller with dynamic climate and time-based programming and can connect to one additional fan. Complete kit includes one duct fan unit, one thermal controller, one corded thermal probe, two duct clamps, installation manual, and all necessary mounting hardware. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

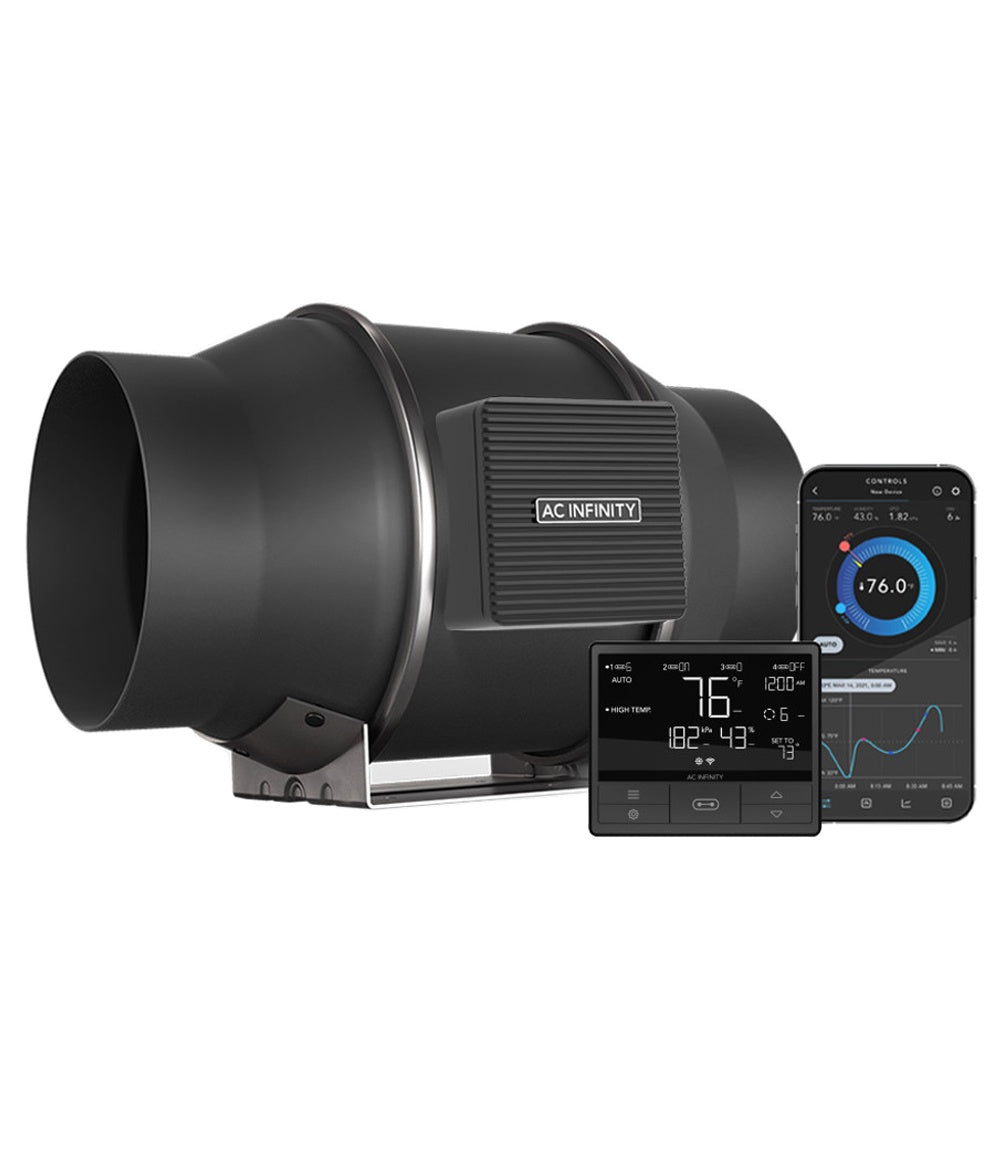

AC Infinity Cloudline T6 Inline fan ships with Controller 69 Pro (Wifi and Bluetooth)

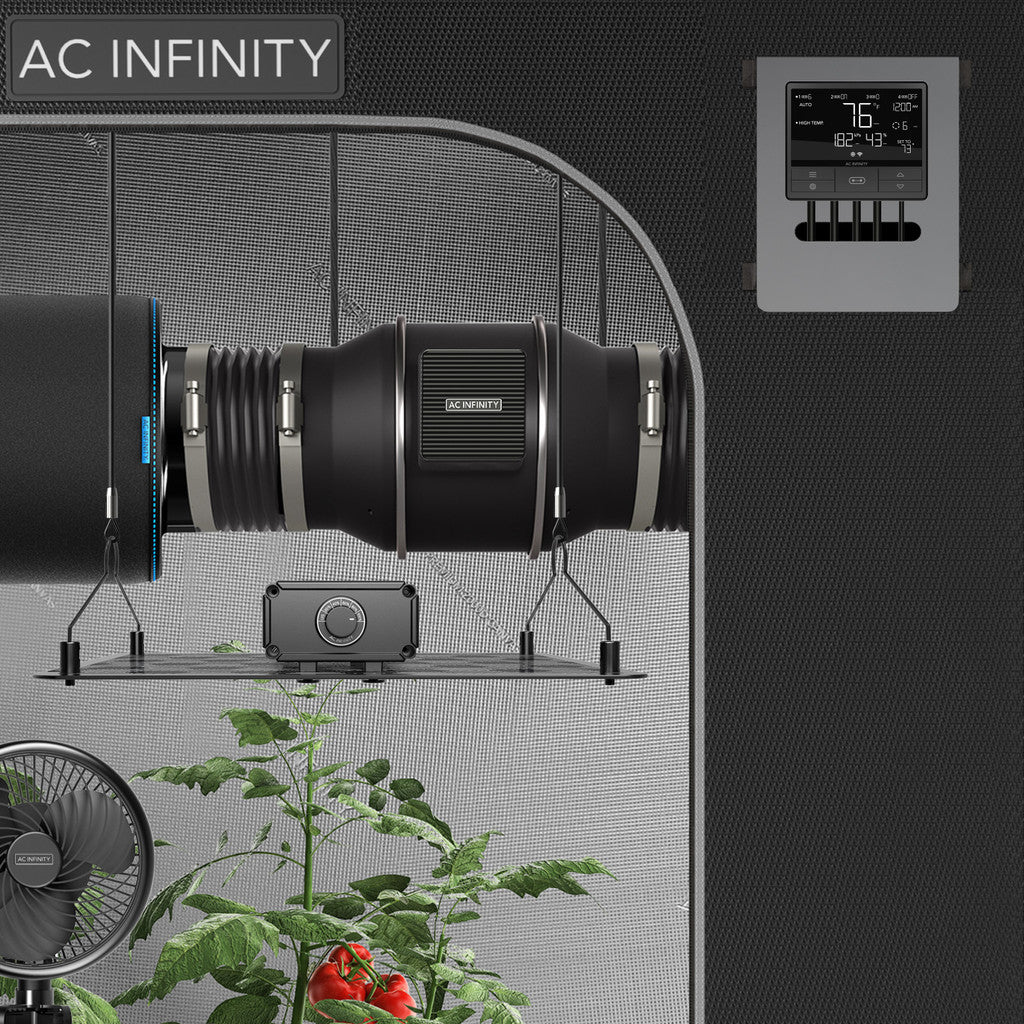

• Designed to ventilate hydroponic grow rooms, transfer heating/cooling, cool AV closets, and exhaust odors.
• Intelligent controller with temperature and humidity programming, fan speed control, timer, and alarm system.
• Mixed flow design combined with a PWM-controlled EC-motor for a truly quiet and energy efficient performance.
• Kit also includes corded sensor probe, AC power plug, two duct clamps, and required mounting hardware.
• Duct Size: 6” | Dimensions: 7.9 x 12.6 x 8.4 in. | Airflow: 402 CFM | Noise: 32 dBA | Bearings: Dual Ball
• 2 years warranty on all AC Infinity products.
SMART CONTROLLER (Controller 69 Pro)

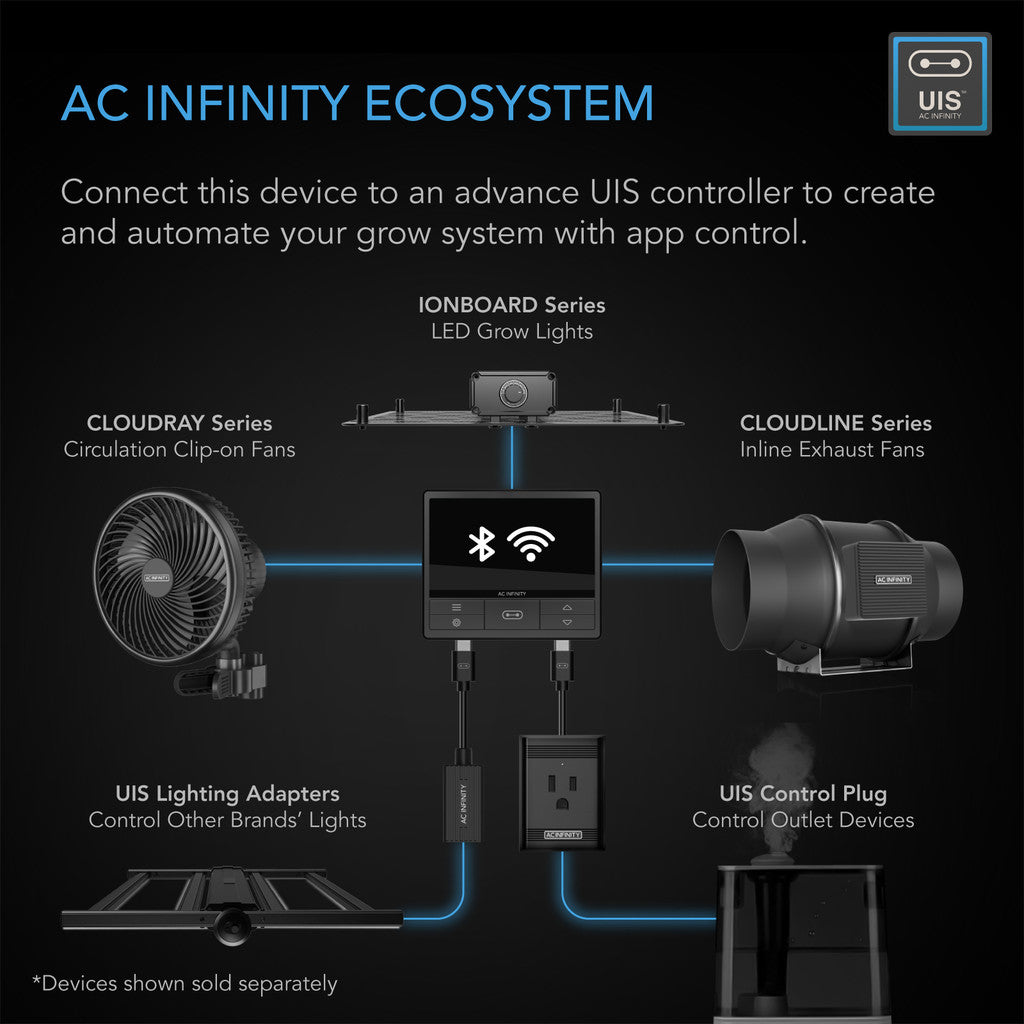

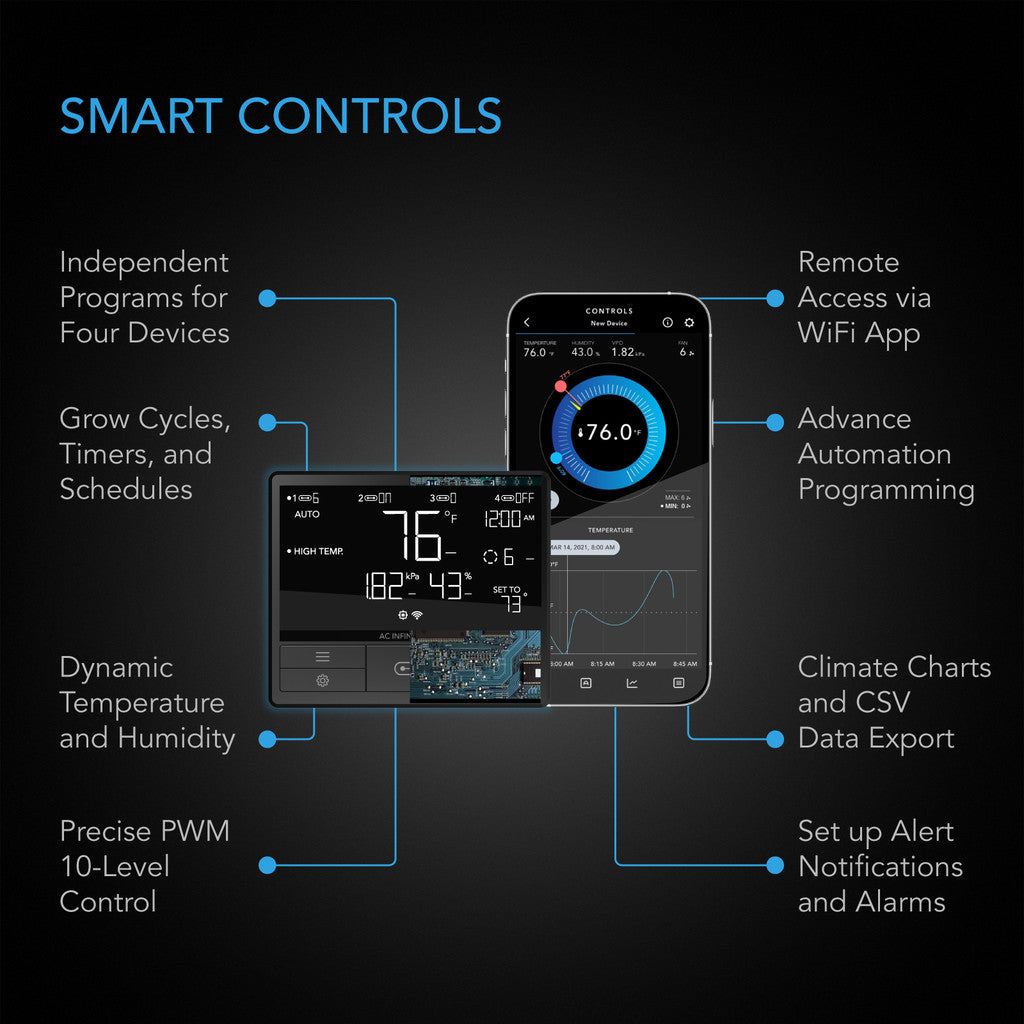

CONTROLLER 69 PRO features smart programming that not only has basic temperature, humidity, and VPD triggers but also allows you to set dynamic fan speeds that would respond based on their changes. Go even further by setting a minimum speed that the fan will run at constantly and would only increase when triggered. Timer, cycle, and schedule modes add custom on-demand activation for various uses. Securely connect to the AC Infinity app via WiFi to utilize automation capabilities from anywhere throughout the day. Access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data. This controller can connect to up to four UIS devices which includes products like the CLOUDLINE, CLOUDRAY, and IONFRAME Series. It can also connect to your favorite grow light and outlet device from outside the UIS platform using select adapters.
QUIET AND ENERGY EFFICIENT DESIGN

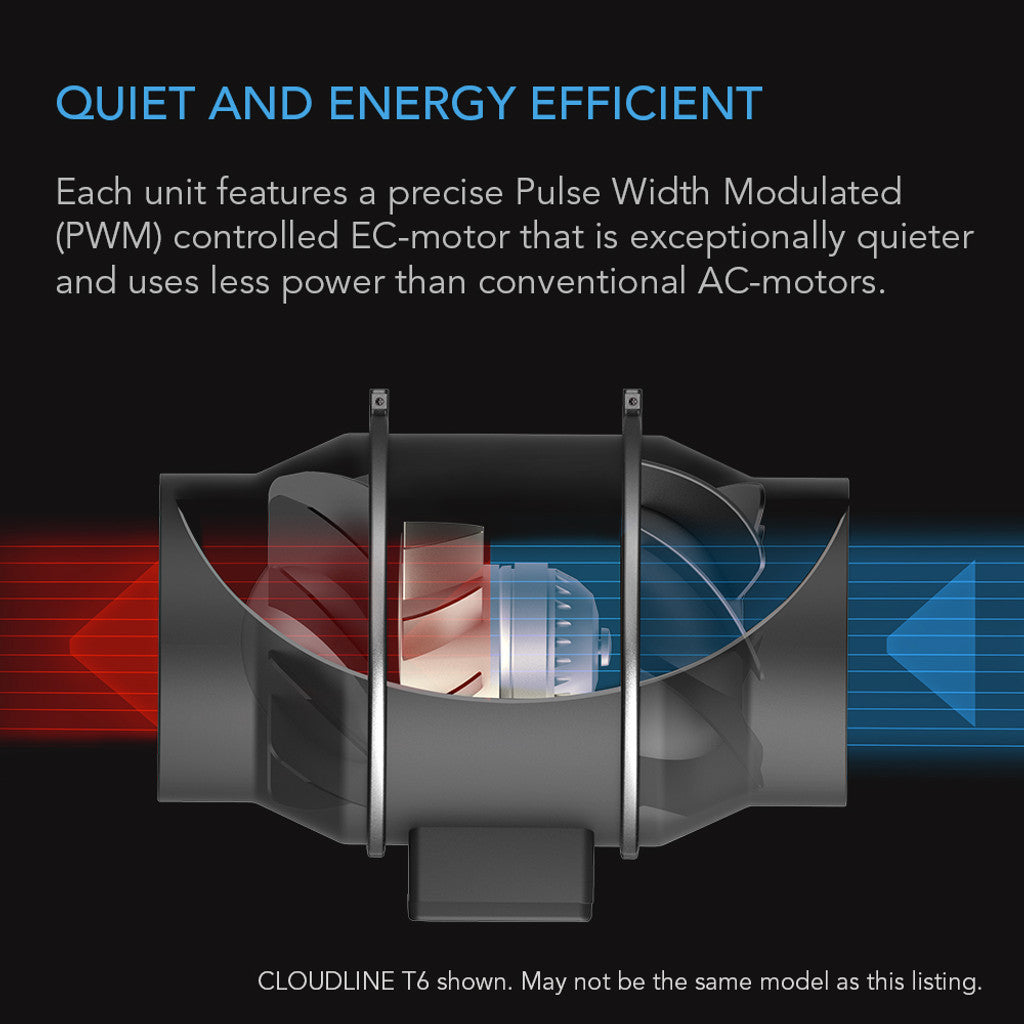

Unlike common duct fans that uses an AC-motor which are loud and unmanageable, this duct fan features an EC-motor that is controlled using PWM (Pulse Width Modulation). This technology enables motors to be able to run smoothly at extremely low RPM speeds without generating additional heat or noise. In addition, the duct fan uses a mixed flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is being restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.
APPLICATIONS
This quiet duct fan system is popular in a variety of applications including cooling AV equipment rooms, closets, racks, and cabinets. Due to its low noise and advanced control features, it’s also used in various air circulation and ventilation projects including hydroponic grow rooms and tents, exhausting bathrooms and attics, and other installations.

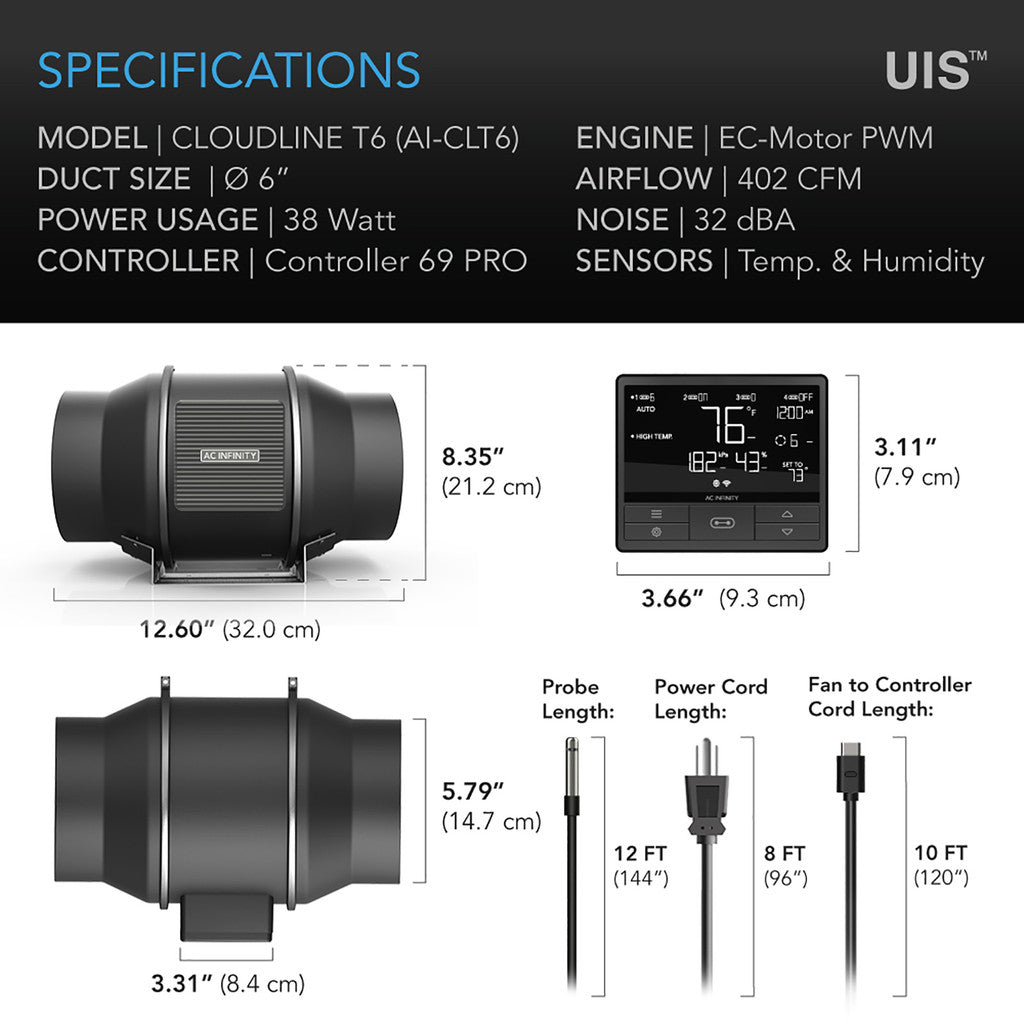

Specifications
| Manufacturer | AC Infinity Inc. |
| Product Name | CLOUDLINE T6 |
| Product Model | AI-CLT6 |
| UPC Code | 854759004792 |
| Product and Mounting Dimensions - Fan Unit | |
| Duct Size | 6" / 150 mm |
| Total Dimensions | 7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm) |
| Mounting Hole-To-Hole Distance | 3.15 X 2.36 in. (8.0 x 6.0 cm) |
| Screw Hole Size | Ø 0.236 in. (Ø 0.6 cm) |
| Cord Length to Controller | 240 in. (20 feet) / 6 metres |
| Product and Mounting Dimensions - Controller | |
| Total Dimensions | 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm) |
| Required Mounting Area | 4.71 x 2.64 in. (12.0 x 6.7 cm) |
| Screw Hole Size | Ø 0.119 in (Ø 0.3 cm) |
| Display Size | 3.5 x 1.4 in. (9 x 3.5 cm) |
| Cord Length to Plug | 108 in. (9 feet) / 2.7 metres |
| Sensor Probe Length | 144 in. (12 feet) / 3.7 metres |
| Product Performance and Technical Specs | |
| Total Airflow | 402 CFM |
| Total Noise | 32 dBA |
| Static Pressure | 503 Pa |
| Voltage | 100-240V AC |
| Frequency | 50/60Hz |
| Max Power Draw | 64 W |
| Average Power Usage | 38 W |
| Current | 1.67 A |
| Power Connector Type | Australian power plug |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 0 to 140°F |
| Ingress Protection | IP 44 |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
| Fan Quality Approvals | CE, RoHS |
| CE Certification (Whole Product) |
 PDF
|
| RoHS Cert. (Whole Product) |
PDF
|
| SAA Cert. (Whole Product) |
PDF
|
| Product Manual | |
| Product Manual |
PDF
|
