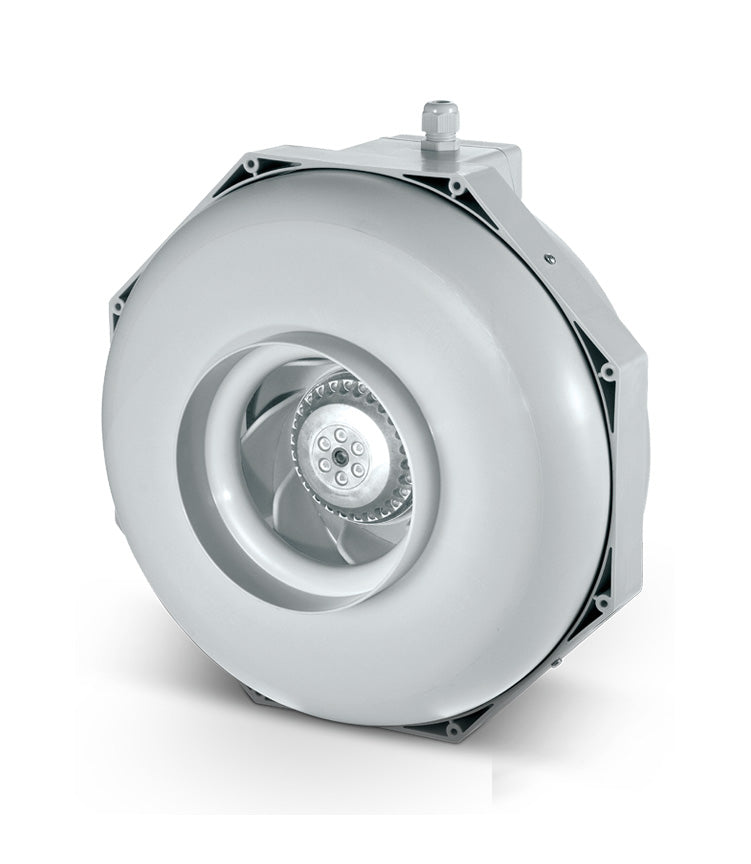

Economic Inline tube fan
The RK(L)S is the most extensive fan from the Can-Fan series. It has a maintenance free housing and it has a integrated 4 speed switch. All of this combined makes the RK(L)S a practical, handy widely usable fan. The RK(L)S has 8 variations
Can-Fan RKLS plastic tube fan, is a speed controlled backward centrifugal extractor, using a resistant, maintenance free, plastic housing. The fan is equipped with a rotating switch that divides the maximum air flow of the extractor, into 4 different levels of performance. There is no need for additional electronic speed controllers or transformers; the speed change is possible using only the switch attached to the fan.
The Swiss made motor inside the Can-Fan RKLS has an integrated thermal switch that will turn the motor off, if the working temperature reaches a dangerous level.
Do not use any kind of Controller. For efficient performance with the best possible results, we strongly recommend the use of Can-Fan RKLS together with Can Filters.
Specifications
- 4 Speed control integrated
- Economic
- Maintenance free
- Plastic housing PA6, RAL 7035
- Backward curved impeller
- Maintenance-free long life ball bearings
| Material |
Plastic |
| Weight |
3.6kg |
| Diameter |
200mm |
| Capacity |
830m³/h |
| Current |
0.6A |
| Power |
130W |
| Integrated speed switch |
4 speeds |
| Speeds (m³/h) |
635, 750, 790, 830 |
Compatible Filters:
