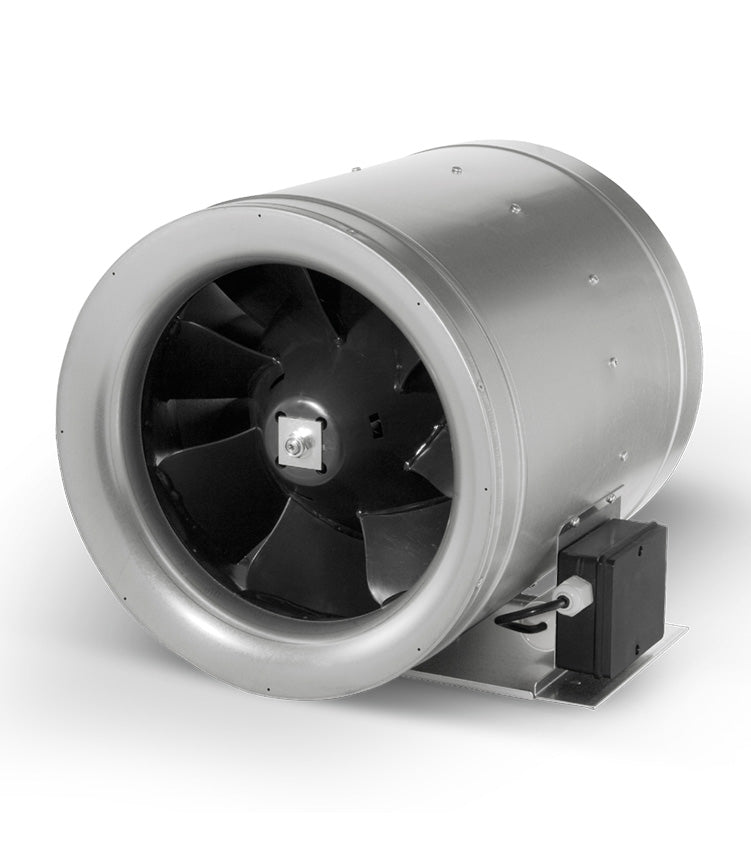

The Max-Fan uses a design which guarantees strong and silent ventilation. Our patented rotor-stator system ensures a uniform Jetstream. The Max-Fan is also very efficient, which gives you powerful ventilation in combination with low power consumption. The speed is adjustable and in case of overheating, the Max-Fan will turn itself off.
Max-Fan is a unique diagonal tube fan, designed to be efficient, powerful and less noisy. The rotor-stator system makes Max-Fan the most efficient fan on the market, taking into consideration both air performance and power consumption. The rotor pushes the air out in a swirl, while the stator transforms this swirl into an uniform jet of air, preventing pressure loss, noise and unnecessary power consumption. The efficiency rate for Max-Fan is 50 %, higher than any conventional one propeller tube fan, available on the market today.
Max-Fan one speed is now controllable using Can-Fan Satellite 4A, this combination functions as a speed Controller. In case you want to have full control, just Plug Can-Fan LCD EC Controller in Can-Fan Satellite 4A and you are ready to go.
As a protection for the motor, it is equipped with a thermal switch, that turns off the motor if it reaches a dangerous working temperature. In addition, Max-Fan comes with mounting brackets for an easier use.
For efficient performance with the best possible results, we strongly recommend the use of Max-Fan together with Can Filters.
Specifications
- 1-speed
- Powerful airflow
- Compact and efficient
- Rotor-stator uniform airflow
- Integrated Thermal Cutoff switch inside the motor
- Mounting brackets included
- Swiss made motor
- Controllable using the Satellite 4A + LCD EC fan controller
| Material |
Metal |
| Weight |
13.5kg |
| Diameter |
355mm |
| Capacity |
2580m³/h |
| Current |
1A |
| Power |
150W |
| Speed controller allowed |
Yes |
Compatible Filters:
