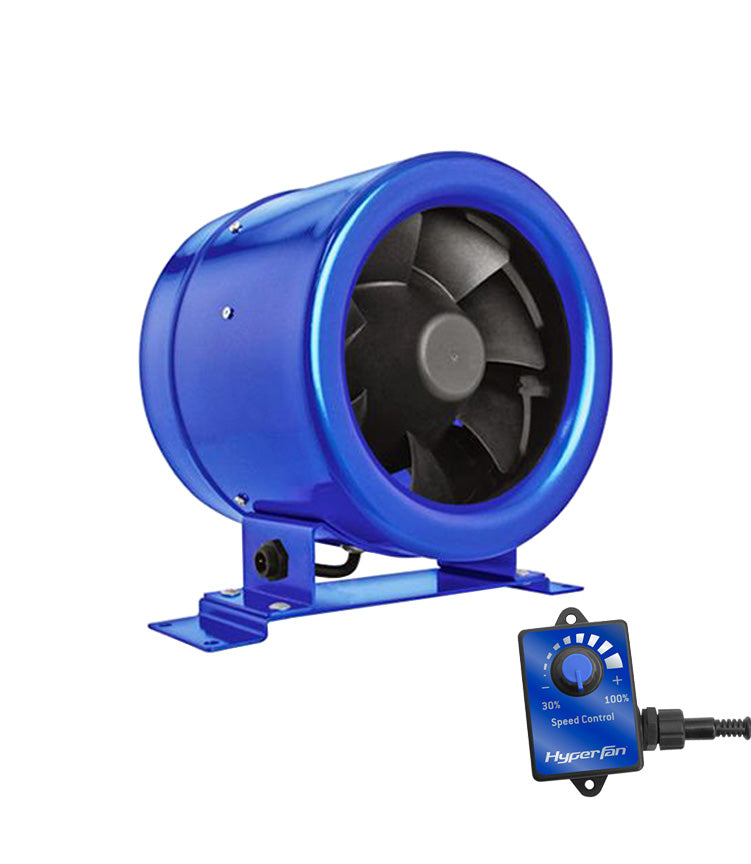

Phresh Hyper Fan V2
The Phresh Hyperfan V2 uses the latest technology available in mixed flow fans. Hyper Fans utilize aircraft "taper blade technology" to fully optimize the aerodynamic movement of air over the fan blade.
Hyperfan V2™ offers the highest static pressures of any fan type in the industry (up to 680 Pa) now featuring brand new proprietary 0-10 V, 9 pole EC exclusive motors. The much improved 0-10 V motors provide seamless, speed adjustment from a complete stop (0 rpm) up to full power without any droning or motor degradation.
Fan blade balance has also been refined to near perfect tolerances which reduces air noise and increases bearing life. New steel housings increase fan strength and integrity. Detachable speed controllers come with every fan and connect/disconnect easily via the new and improved RJ14 ports. Supplied with 5 meters of RJ14 cable. Controller cables can now be extended up to 12 metres if required.
Features
- New 9 pole digital EC "brush-less" motors
- EC digital brushless motors are quieter, operate at lower temperatures, energy efficient and reliable
- Higer fan efficiency @ 7.85 CFM per watt
- Higher linear air flow output than other fans
- High Pressure Laminar Air Flow/Taper Blade & Stator Technology
- Detachable fully variable speed controller included with each fan
- Sturdy steel housing and Abec 7 ball bearings
- 0 - 10V controller compatible via RJ9 or RJ11 cable
- Compatible with Climate Control V2 (sold separately)
- 2 Year Warranty
Specifications
| Model |
125mm |
150mm |
200mm |
250mm |
300mm |
315mm |
| Diameter (mm / Inches) |
125 / 5 |
150 / 6 |
200 / 8 |
250 / 10 |
300 / 12 |
315 / 12.5 |
| Max Flow (m3/hr) |
350 |
560 |
1230 |
1840 |
3100 |
3100 |
| Max Flow (L/s) |
100 |
156 |
342 |
512 |
862 |
862 |
| Max Flow (CFM) |
TBA |
330 |
725 |
1084 |
1827 |
1827 |
| Pressure (Pa) |
475 |
545 |
560 |
610 |
730 |
730 |
| Noise (dBA) |
TBA |
66 |
69 |
72 |
74 |
74 |
| Voltage (Volts AC) |
240 |
240 |
240 |
240 |
240 |
240 |
| Max Power Usage (Watts) |
27 |
42 |
90 |
180 |
320 |
320 |
| Suggested Grow Area (m) |
TBA |
2 x 2 x 2 |
2 x 4 x 2 |
4 x 4 x 2 |
|
|
| Max Room Size (Watts) |
1000 |
1500 |
3000 |
5000 |
10000 |
10000 |
| Length (mm) |
TBA |
140 |
170 |
205 |
255 |
255 |
| Width - Including Bracket (mm) |
TBA |
204 |
248 |
314 |
364 |
364 |
| Weight (kg) |
1.6 |
1.9 |
2.8 |
4.8 |
6.5 |
6.5 |
Compatible Filters:
