Description

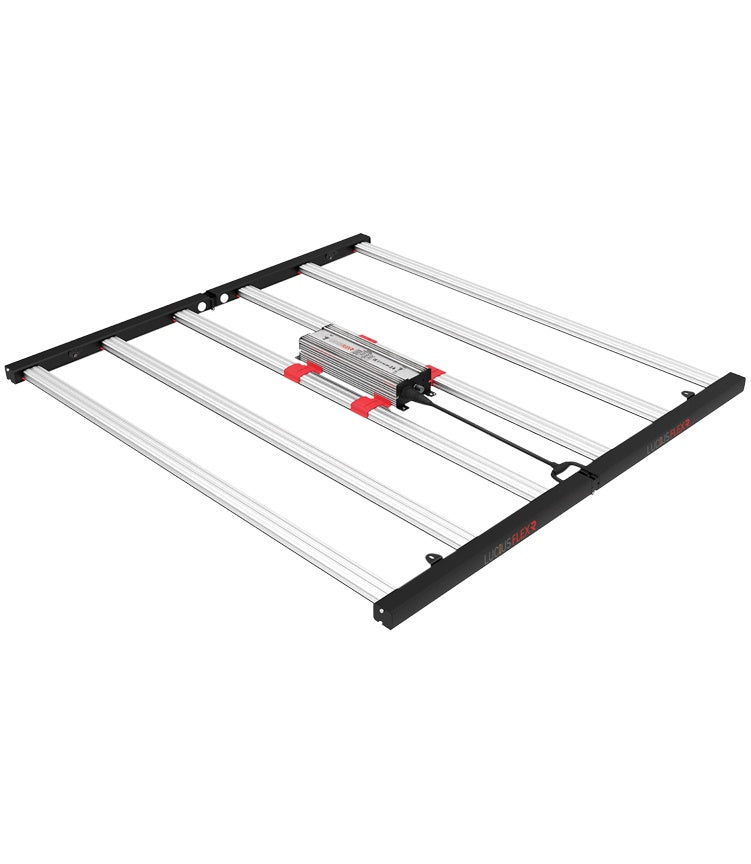

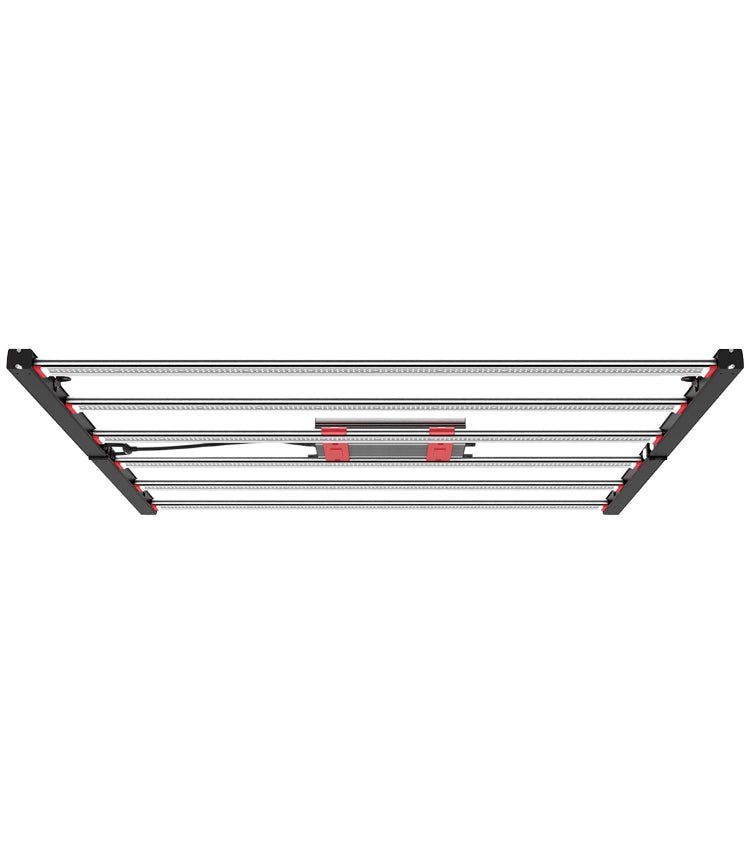

The LUCIUS FLEX R provides growers with the latest OSRAM LED technology in a 6-bar robust design.
Utilising 680W, the R series technology adopts enhanced red diodes to achieve a PPF efficacy of 3.5 µmol/J channelling an output of 2,380µmol/s.
Each bar is built to last with an innovative IP65 rated silicon that protects the LEDs without compromising light output. Delivering optimal growth, crop after crop.
Features:
• High Efficacy 3.5 µmol/J
• IP65 Rated Foldable Design
• Low Ceiling Installation Full Cycle Spectrum Osram Diodes Controller Compatibility
Product Specifications:
| Power | 680W |
| Voltage Range/Frequency | 100-277V ~ 50/60Hz |
| Current 120V | 5.84A |
| Current 208V | 3.37A |
| Current 220V | 3.18V |
| Current 230V | 3.05A |
| Current 240V | 2.92A |
| Current 277V | 2.53A |
| PPF Efficacy | 3.5µmol/J |
| Max PPF | 2380µmol/s |
| Colour Temp | 4000K |
| CRI | 60% |
| PF | >0.95 |
| THD | <10% |
| Beam Angle | 120° |
| Control Knob | OFF/25/50/75/100%/RC |
| External Control | Compatible with 0-10V LED Controllers |
| Signal Cable | 3.5mm TRS Male Jumper Cable |
| Thermal Management | Passive |
| BTU/h | 2320 |
| Protection | Over-voltage, Under-voltage, Short Circuit, Over-temperature |
| Dimensions | 1170 x 1115 x 79mm 46.06 x 43.90 x 3.11" |
| Weight | 8.5±0.5Kg 18.7±1.1Lbs |
| Working Temp | 0°C to +40°C (32°F to +104°F) (95% RH)-40°C to +70°C (-40°F to +158°F) (85% RH) |
| IP Rating | IP65 |
| Warranty | 3 Years |
Box Contents:
• LED Fixture
• Driver Mount (x2) 3.5mm Signal Cable 2m S-Hanger (x2)
• LED Driver
• Input Power Cable 2m Rope Rachet (x2)
• M5 Eyebolt (x2)
• Output Cable
• Output Extension Cable 2m Lance Hanger (x2)
• FLEX R Manual
